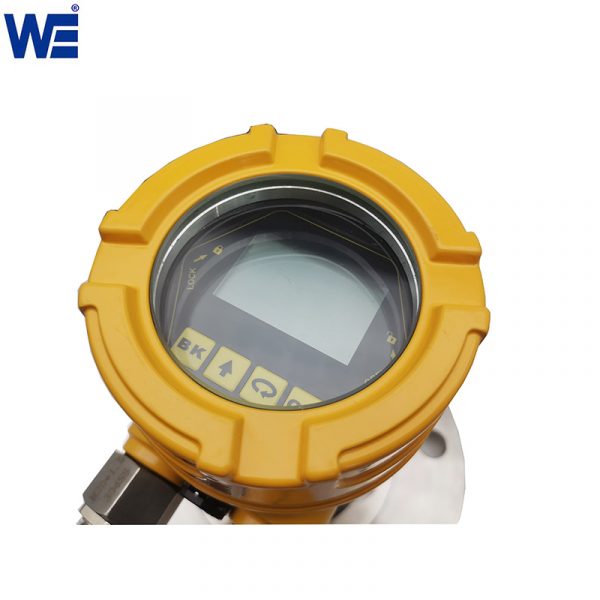

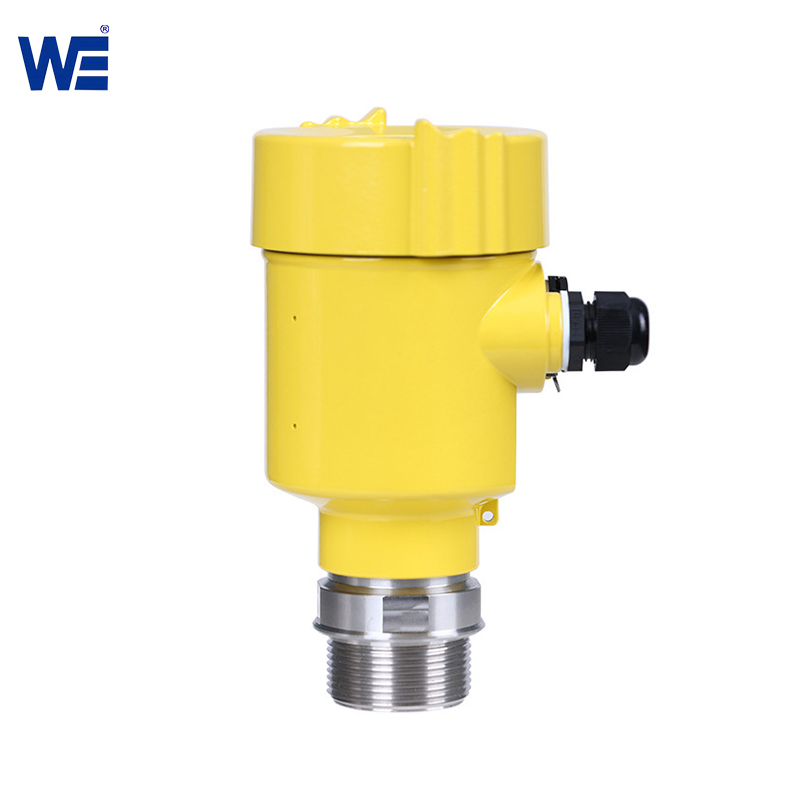

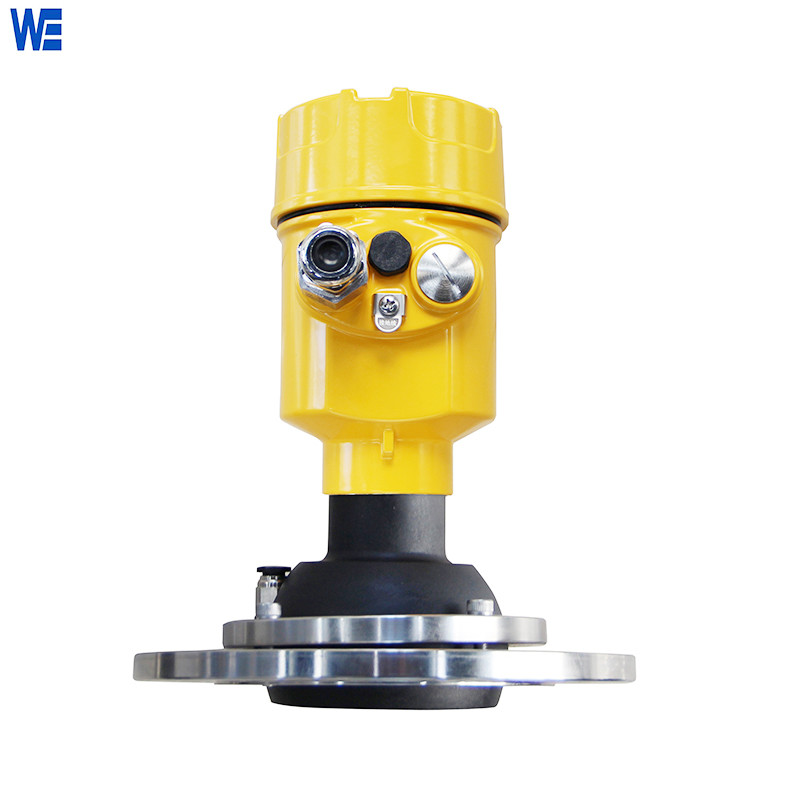

80G Liquid Radar Level Sensor
80G liquid radar level sensor is a type of sensor used to measure the level of liquids in tanks or containers. Radar level sensors use electromagnetic waves to determine the level of the liquid by measuring the time it takes for the radar pulse to travel from the sensor to the liquid surface and back.
80G Liquid Radar Level Sensor are used in various industries such as oil and gas, chemical, water and wastewater treatment, pharmaceuticals, food and beverage to accurately monitor and control the levels of liquids in tanks or vessels. 80G Radar level sensors are known for their reliability, accuracy, and ability to work in challenging environmental conditions such as extreme temperatures, pressures, and vapors.
Features of 80G Liquid Radar Level Sensor:
▲ Non-contact measurement: 80g radar level sensors do not come in contact with the liquid, reducing the risk of contamination or damage.
▲ High accuracy: 80g radar sensors provide precise and reliable level measurements even in challenging conditions.
▲ Suitable for various liquids: Radar level sensors-80g can be used with a wide range of liquid types, including corrosive liquids or those with varying properties.
▲ Easy installation and maintenance: These 80g radar level sensors are typically easy to install and require minimal maintenance compared to other level measurement technologies.
| Name | 80G liquid radar level sensor /80g liquid level transmitter |
| Model | WERD- 90/90S/91/91S |
| Medium | Liquid |

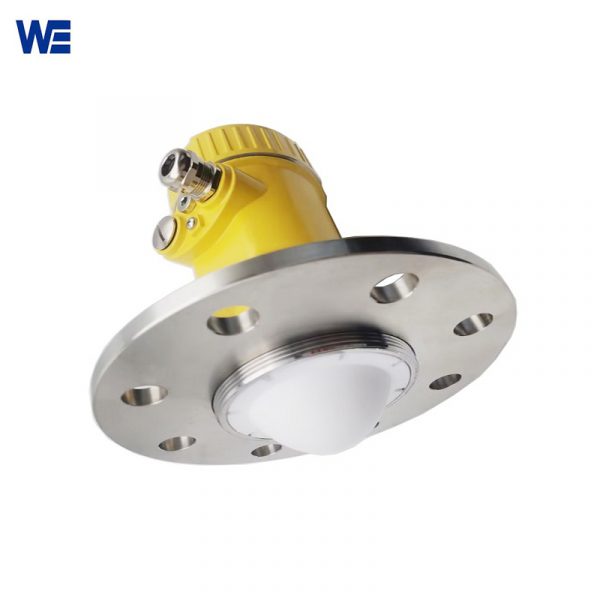

| Antenna Type | PTFE; Lens(76mm) |
| Measure Range | 0-150m |
| Process | Universal flange or thread |
| Accuracy | ±2mm |
| Response time | <0.6s ( Due To Setting) |
| Display | LCD display |
| Beam angle | 3° |
| Microwave frequency | 76-81 GHz |
| Material | Shell: aluminum, process connection: 304 stainless steel, |
| Pressure | 0.1- 2MPa |
| Storage temperature | -40~+120℃ |
| Protection class | IP68 |
| Warranty | 12 months |
