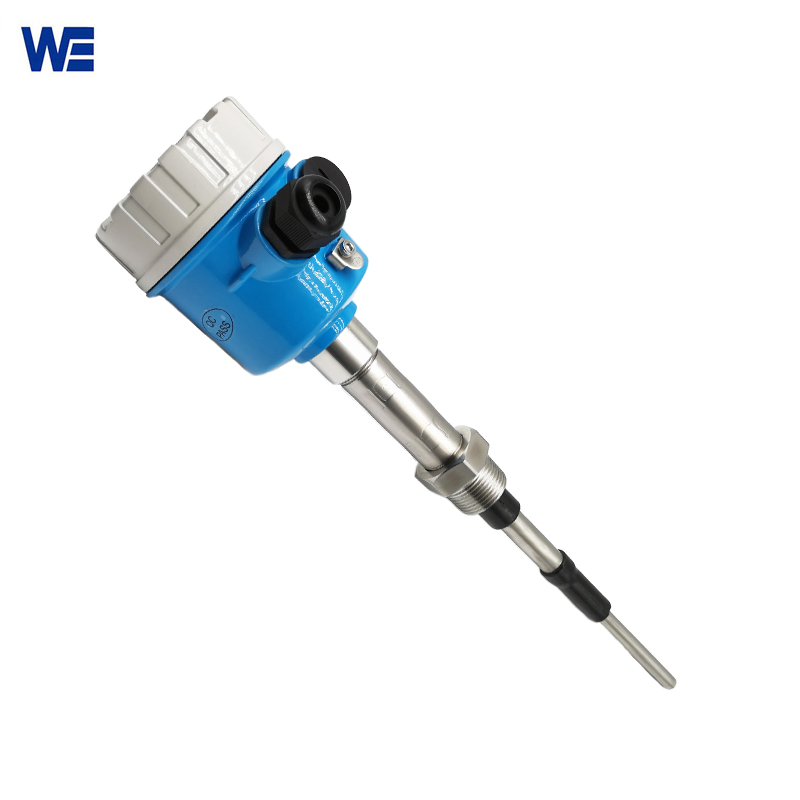

Granule RF admittance level switch produced by Wepower electronic

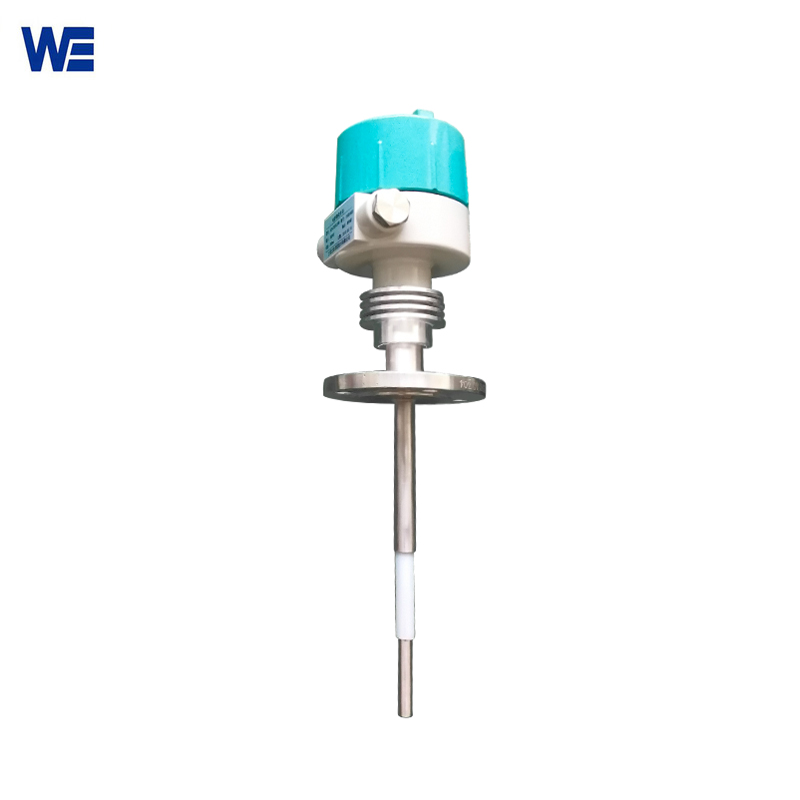

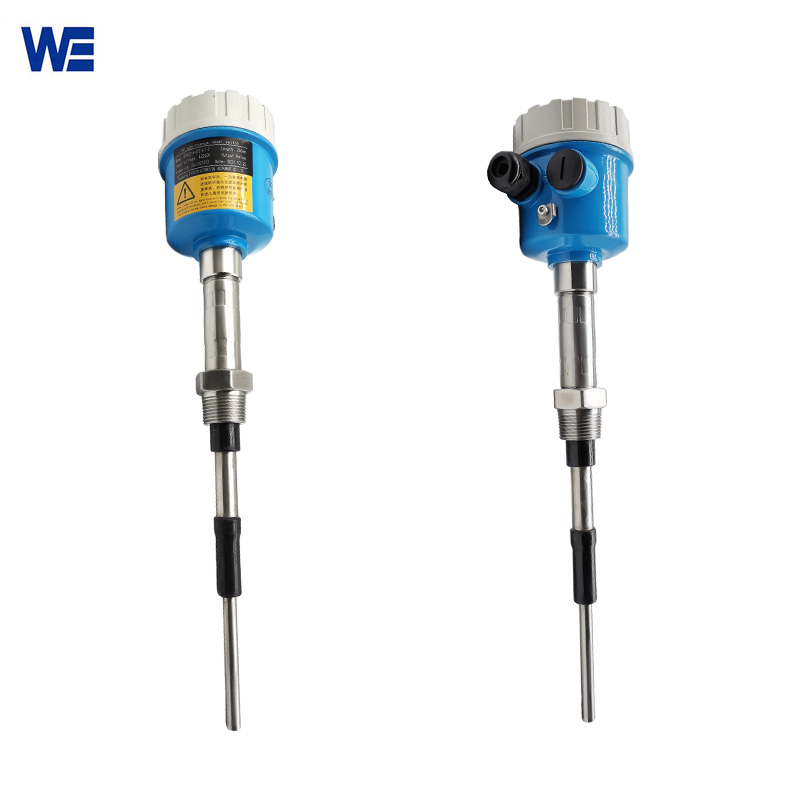

Wepower electronic-RF admittance type level switch

Admittance Point Level Switch

Admittance Point Level Switch products are widely used. Some typical applications are as follows: chemicals, plastics, films, feeds, grains， rubber, pharmaceuticals, liquid wastewater ,sand, food, slurry ,cement, powder coatings/clothing coal, granular solid oil pulp Measurement of materials.

Category: RF Admittance Level Switch

Description

Measuring Principle Of Admittance Point Level Switch:

The capacitive kind of level control was used to produce the new Admittance Point Level Switch, which has a wider range of applications, is more accurate, dependable, and anti-hanging. The technique is a capacitive material level control system. advancements in technology. The irrigation wall and the measured medium combine to create an admittance value while the device is functioning. The admittance value adjusts in accordance with variations in the material level. To achieve material level measurement, the circuit unit transforms the measured admittance value into a material level signal output.

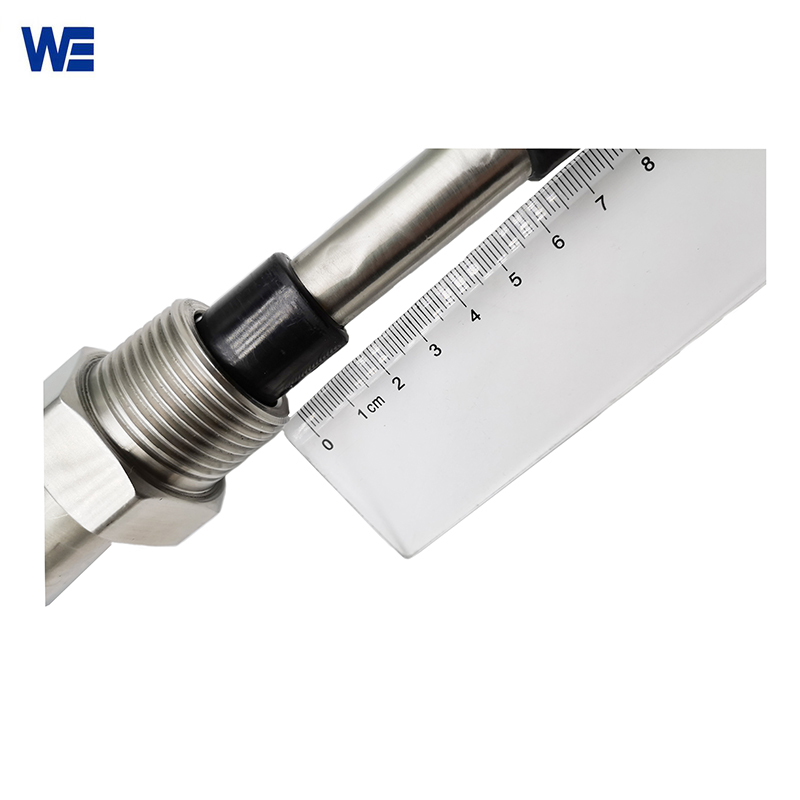

Probe Material of Rf Admittance Type Level Switch:SUS304, SUS316 can be customized, or PTFE casing (No Fear Of Corrosion).

Product Name	Admittance Point Level Switch
Medium	Liquid /Powder
Sensitivity	0.5PF
Accuracy	±5mm
Measured Length	200-10000mm
Medium Temp	-40 ～ 200℃
Repeatability	±3mm
Indication Method	LED
Power Supply	DC24V/AC220V
Power	1W
Output Signal	DPDT
Maximum Load	8A
Pressure Range	0 ～ 1MPa
Ambient Temperature	-40-80℃
Housing Material	Aluminum
Sensor Material	SS316
Fastening Material	SS304
IP Grade	Ip67
Electrical Interface	M20*1.5/3/4″NPT
Weight	About 1.2Kg
