Explosion proof magnetostrictive sensor in produced by Wepower Electronic in accordance with explosion proof requirement. It is produced under serious quality control and is inspected many times until send the perfect ones to customers. Nothing to worry about, and contact us now!
![]()
![]()

![]()

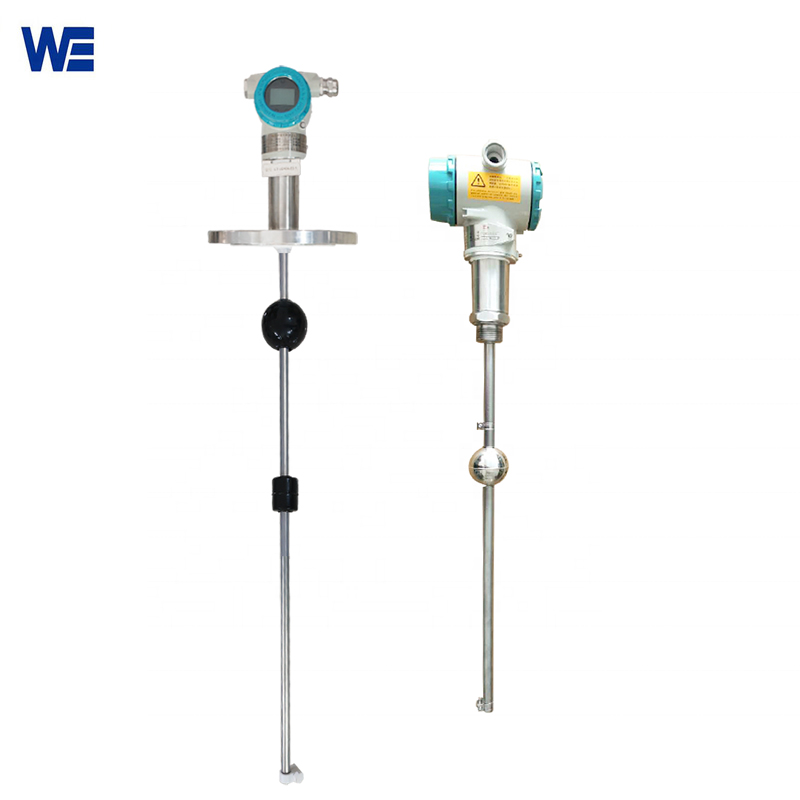

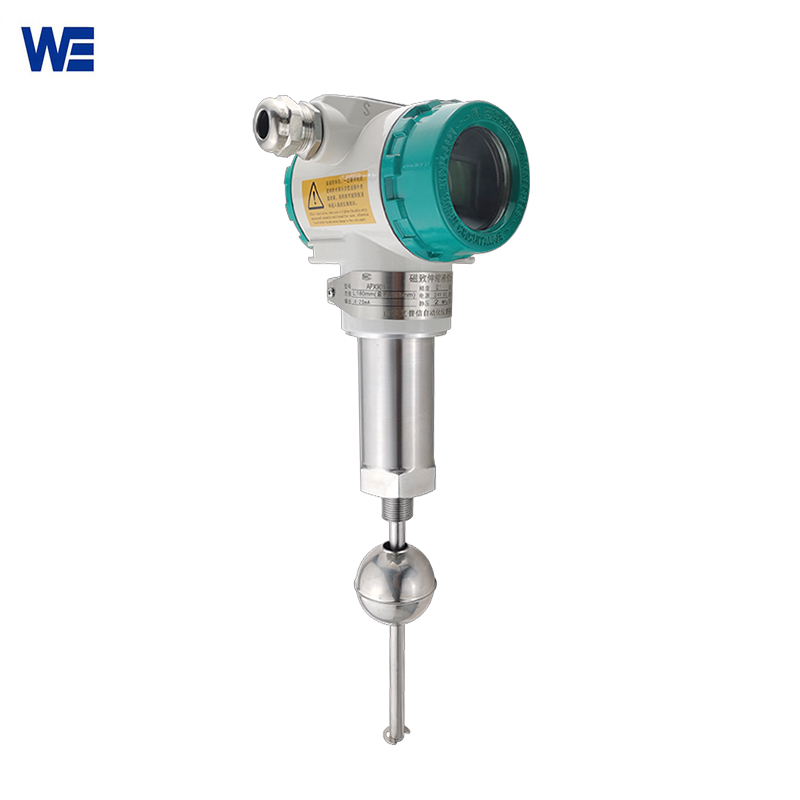

| Product Name | Explosion Proof Magnetostrictive Sensor-WPX901 |
| Output | 2-wire, 4-20mA+HART; Modbus; RS485 |
| Effective Range | Hard rod:100~6000mm;
Flexible rod:1000~22000mm |
| Ambient Temperature | -40℃~+70℃ |
| Medium Temperature | Common type: +40℃~+70℃;
High temperature type:-40℃~+200℃ |
| Response Time | 100ms |
| Working Voltage | Rated working voltage: 24Vdc;
Normal working voltage:10~30Vdc |
| Protection Class | IP67,IP65 |
| Measurement Blind Zone | Upper blind zone can be none;
Lower blind zone minimum 20mm |
| Working Pressure | 1.6Mpa, can be customized |
| Process Connection | Thread, Flange |
| Explosion Proof Type | ExdIIBT5、ExiaIIBT5、ExdIICT5 |
| Float Material | SS316, 0Cr18Ni9(SS304), Nitrile Rubber |
| Rod Material | 0Cr18Ni9(SS304),1Cr18Ni9Ti(SS321), Customization |
| Power Consumption | ≤50mA |
| Accuracy | 0.1% |
![]()

![]()
