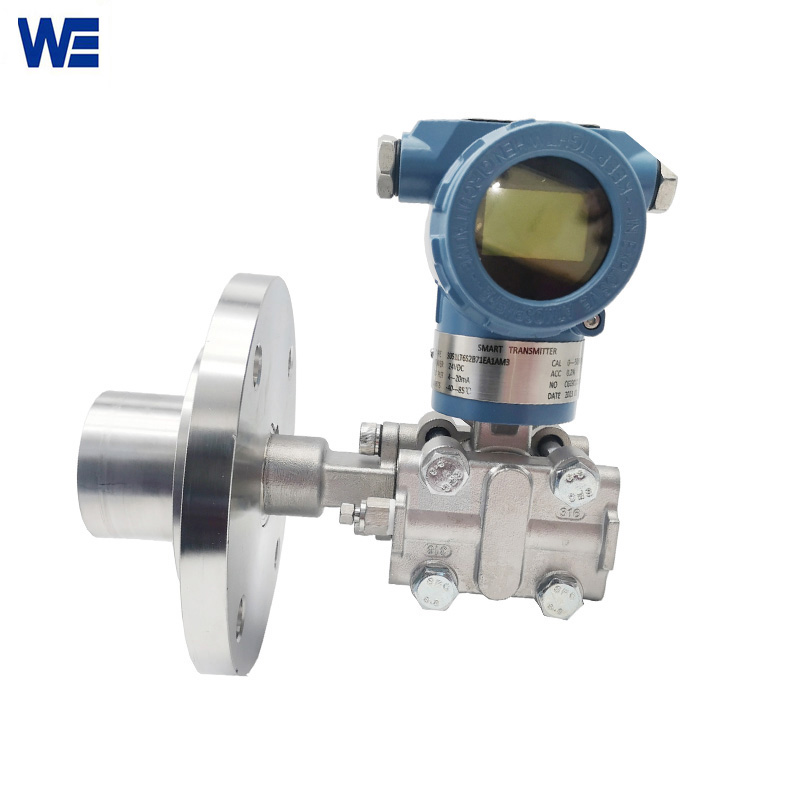

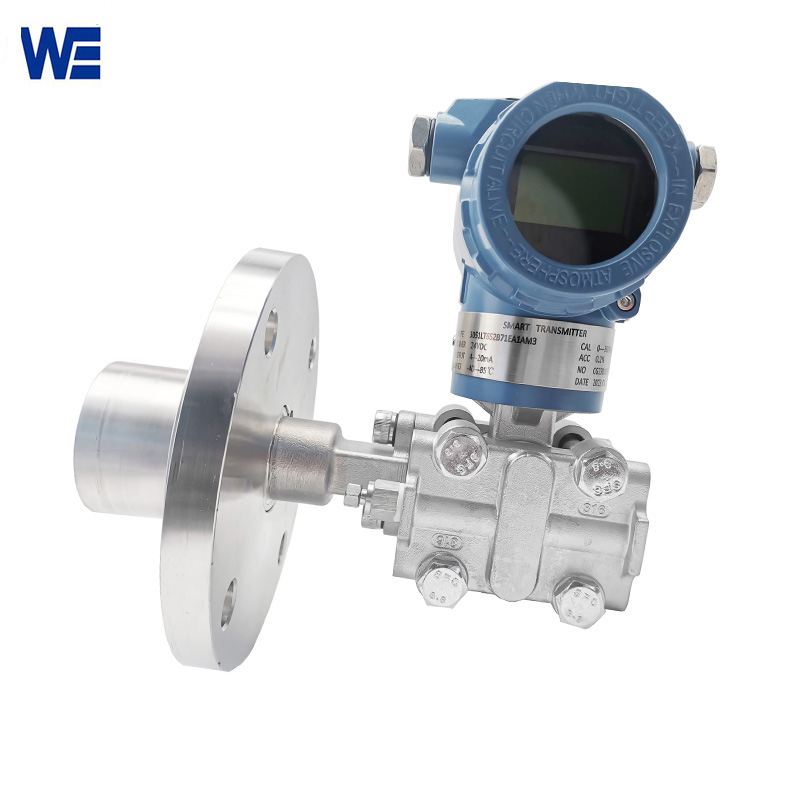

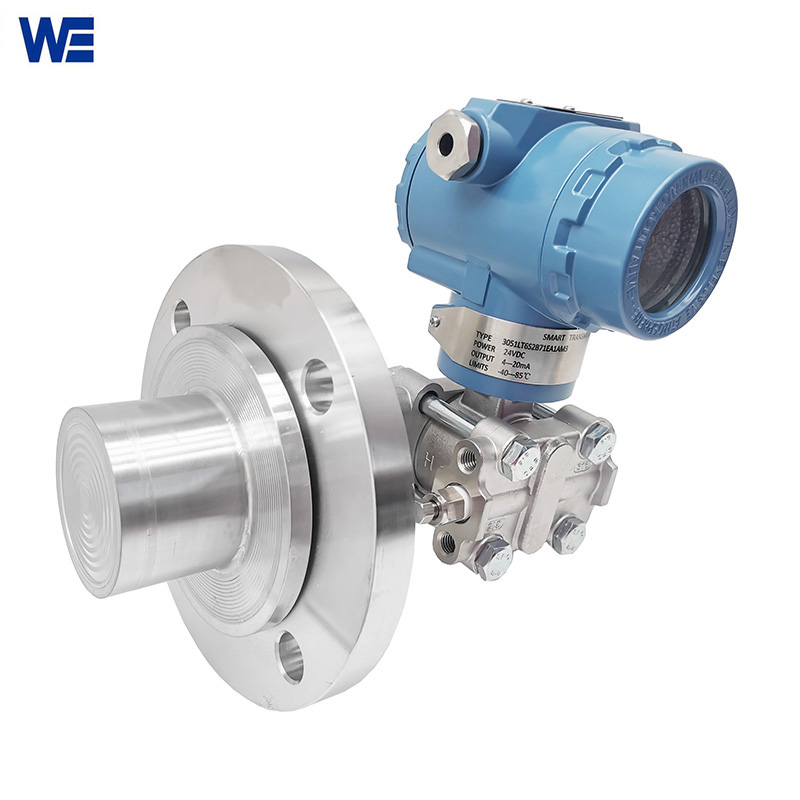

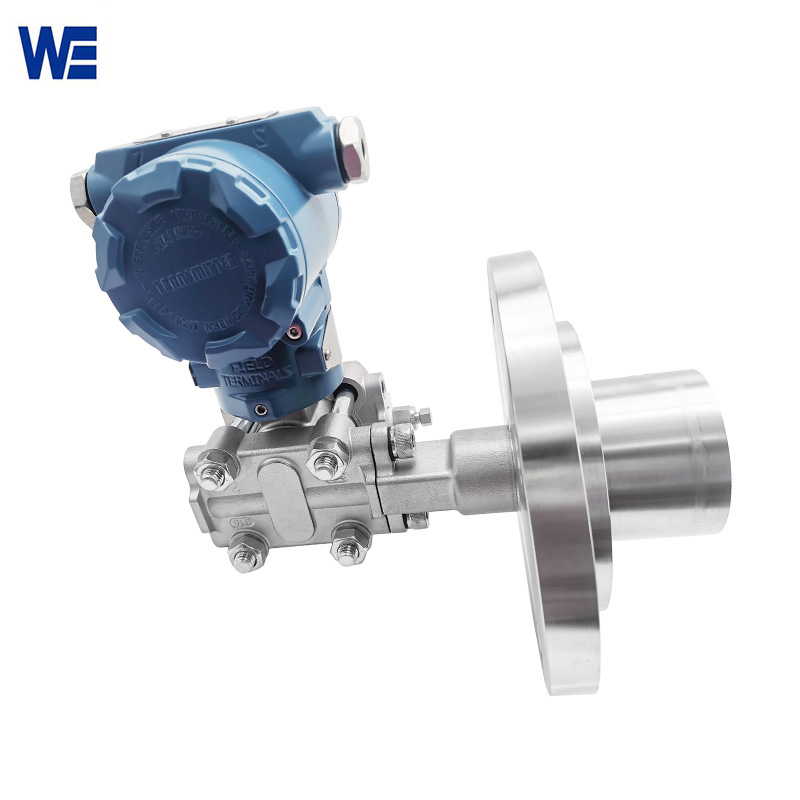

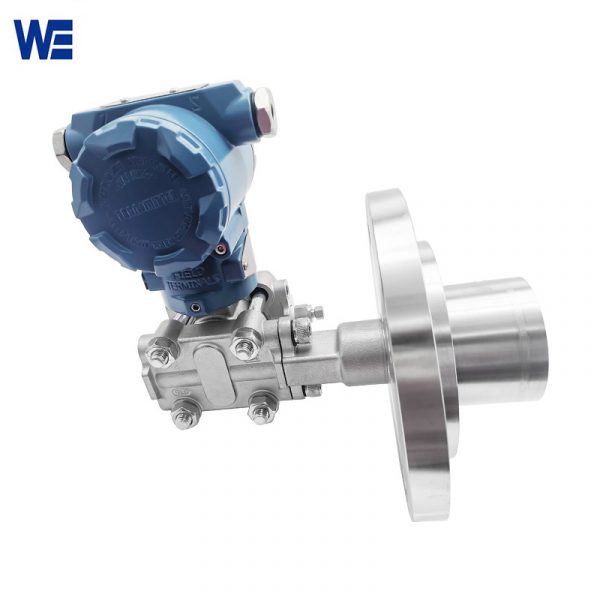

Extension Diaphragm Pressure Transmitter
Pressure transmitter with extension diaphragm seal is a liquid level/ pressure transmitter, which is mainly used in various fields such as water conservancy and hydropower, oil refining industry, shipbuilding, machine tools, and pipelines. Pressure transmitter with extension diaphragm seal has advantages in measuring easily precipitated, high-viscosity liquids as well .

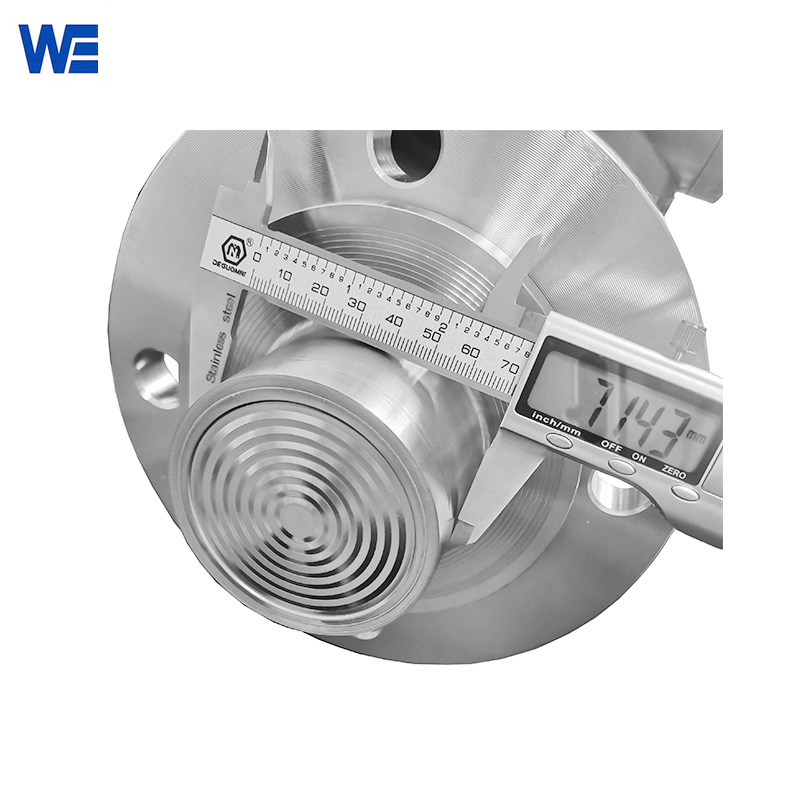

Extension Diaphragm Pressure Transmitter is a device that measures liquid level and pressure with an extended diaphragm seal. An easily detectable in-line pressure transmitter that enables LCD screen display, pressure and liquid level unit displaying .According to the needs of the customer and the real environment, the flange specifications of this extension diaphragm flange pressure transmitter and the inserting length of the extended diaphragm sealcan be changed.
Widely used pressure transmitters with extension diaphragm seals are capable of measuring liquids that are viscous, quickly solidified, crystallized, evaporated, strong acidic, and strong alkaline. Better adaptability is provided by our high quality extendsion diaphragm type pressure transmitter due to the 20 years production years and experiences
| Product Name | Pressure Transmitter With Extension Diaphragm Seal |
| Process Fluid : | Liquid, Gas or Vapor |
| Application: | Liquid Level, Differential Pressure, Gauge Pressure, Absolute Pressure |
| Material | Flange : Stainless Steel 304/ Stainless Steel 316 |
| Diaphragms : Stainless Steel 316L/ Hastelloy B/ Hastelloy C/ Tantalum/ PTFE-coated Tantalum Diaphragm | |
| Capillary : Stainless Steel with PVC coating | |
| Flange Size | 40mm, 50mm, 80mm, 100mm, 1-1/2″, 2″, 3″, 4″ |
| Flange Rating | JIS 10K / JIS 20K / JIS 40K |
| ANSI 150# / ANSI 300# / ANSI 600# | |
| DIN PN10 / PN16 / PN25 / PN40 | |
| Tri Clamp (DIN32676 / ISO2852) | |
| Installation Style | Direct-mount: RD/ One-sided Capillary: RD1/ Two-sided Capillaries: RD2 |
| Capillary Length | 1.0 M ~ 10 M |
| Time Response | Less than 1.12 seconds |
| Accuracy | +/-0.15% of Span |
| Extension Length | 50mm,100mm,150mm |

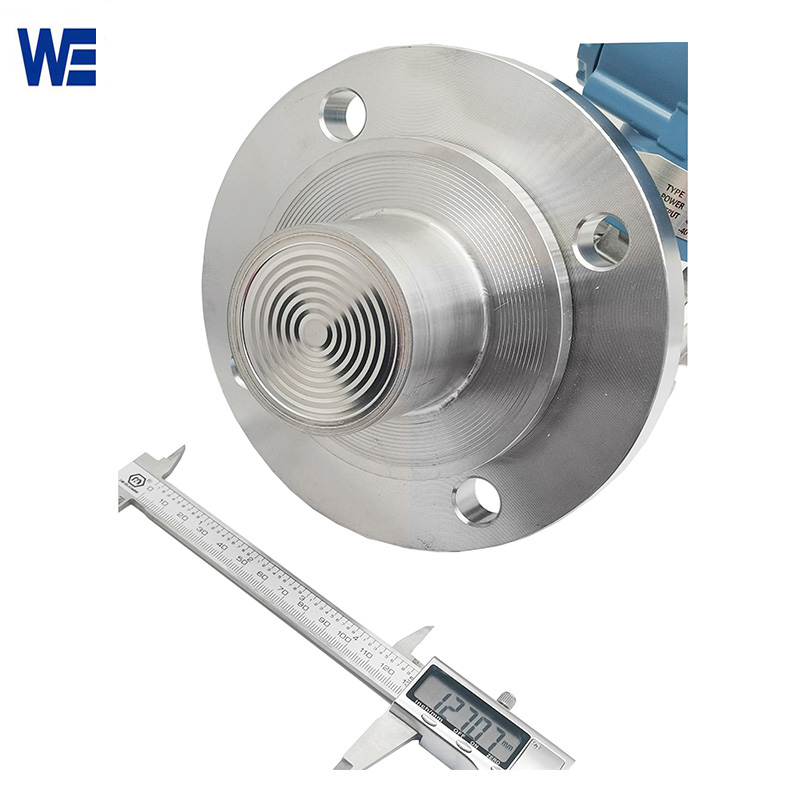

| Diaphragm Dia | 49mm,71mm,96mm |
| Fill Fluid and Maximum: | Silicone (Max. Temperature 130 °C) |
| Max. Temperature | Direct-Mount : -20 to 80 °C |
| Remote Diaphragm : -40 to 280 °C | |
| Max. Pressure | 8.0MPa |
| Stability | +/-0.15% of URL for 2 years |
