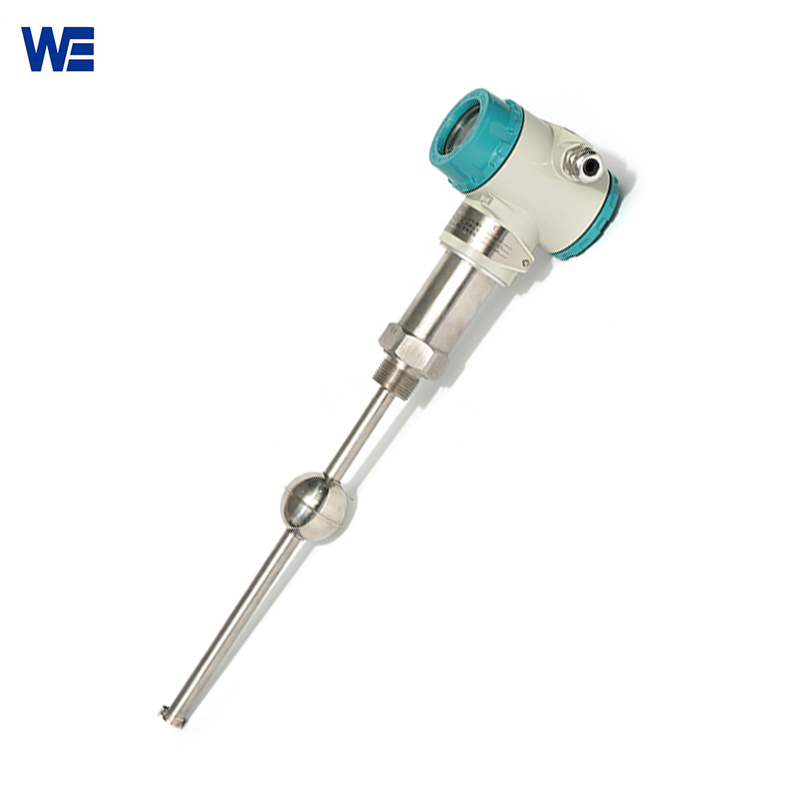

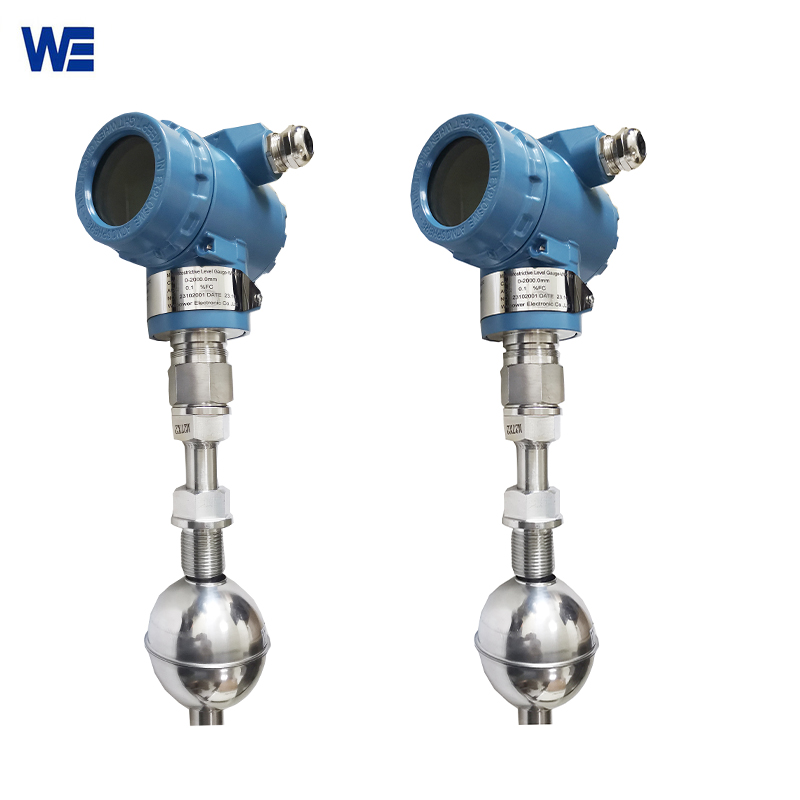

Insertion Type Magnetostrictive Level Meter
Wepower insertion type magnetostrictive level meter is much suitable for level inspection and control, and also can be used cooperated with Magnetic Level Indicator for much more better function. With high accuracy and good performance, this magnetostrictive level meter get high praise of customers and had been used in many industries to replace previous traditional instruments.
Why Should The Insertion Type Magnetostrictive Level Meter And Magnetic Level Indicator Work Together?
We use magnetostrictive level meter and magnetic level indicator together, for the reason that it is a complementary combination of high-precision digital measurement and visual local indication. Because the Magnetic Level Indicator is an on-site indicative level gauge, at the same time, the Magnetostrictive Level Meter is a high-precision level inspecting and controlling device.
- Dual Verification Ensures Security;
- Full-Range Operating Condition Coverage Capability;
- Optimizing Efficiency And Cost;
What Advantages Wepower Electronic Have?
- Serious quality inspection and control;
- Professional guidance and suitable suggestions;
- Better after-sales service;
- Cooperated with many famous worldwide brands;
- Can help you get the more affordable and favorable price;
- Anytime you need, we always provide the best service.
| Product Name | Insertion Type Magnetostrictive Level Meter |
| Output | 2-wire, 4-20mA+HART; Modbus; RS485 |
| Effective Range | Hard rod:100~6000mm;

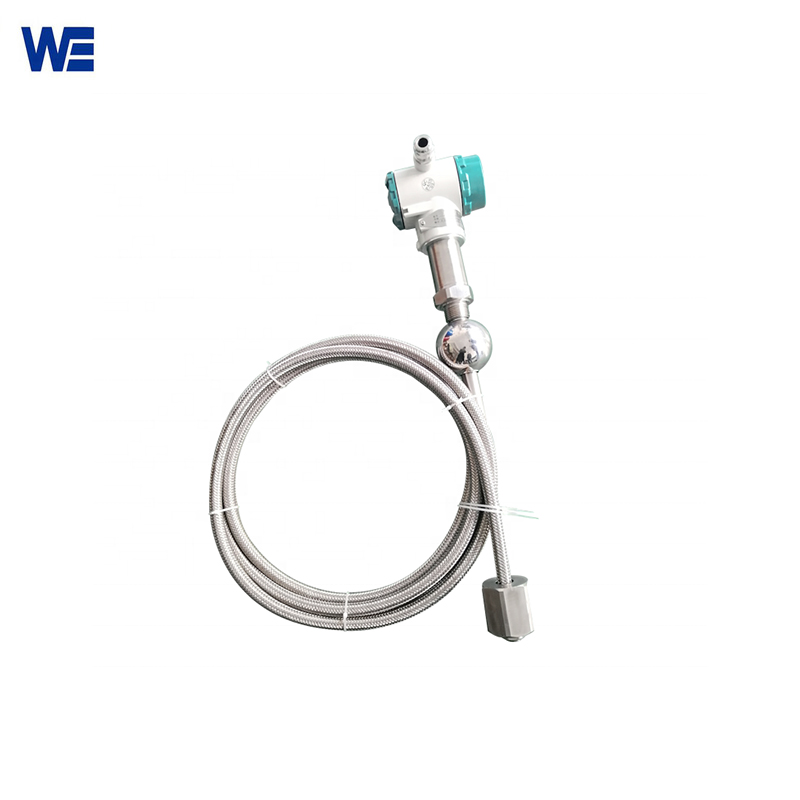

Flexible rod:1000~22000mm |
| Ambient Temperature | -40℃~+70℃ |
| Medium Temperature | Common type: +40℃~+70℃;
High temperature type:-40℃~+200℃ |
| Response Time | 100ms |
| Working Voltage | Rated working voltage: 24Vdc;
Normal working voltage:10~30Vdc |
| Protection Class | IP67, IP65 |
| Measurement Blind Zone | Upper blind zone can be none;
Lower blind zone minimum 20mm |
| Working Pressure | 1.6Mpa, can be customized |
| Process Connection | Thread, Flange |
| Explosion Proof Type | ExdIIBT5、ExiaIIBT5、ExdIICT5 |
| Float Material | SS316, 0Cr18Ni9(SS304), Nitrile Rubber |
| Rod Material | 0Cr18Ni9(SS304),1Cr18Ni9Ti(SS321), Customization |
| Power Consumption | ≤50mA |
| Accuracy | 0.1% |
