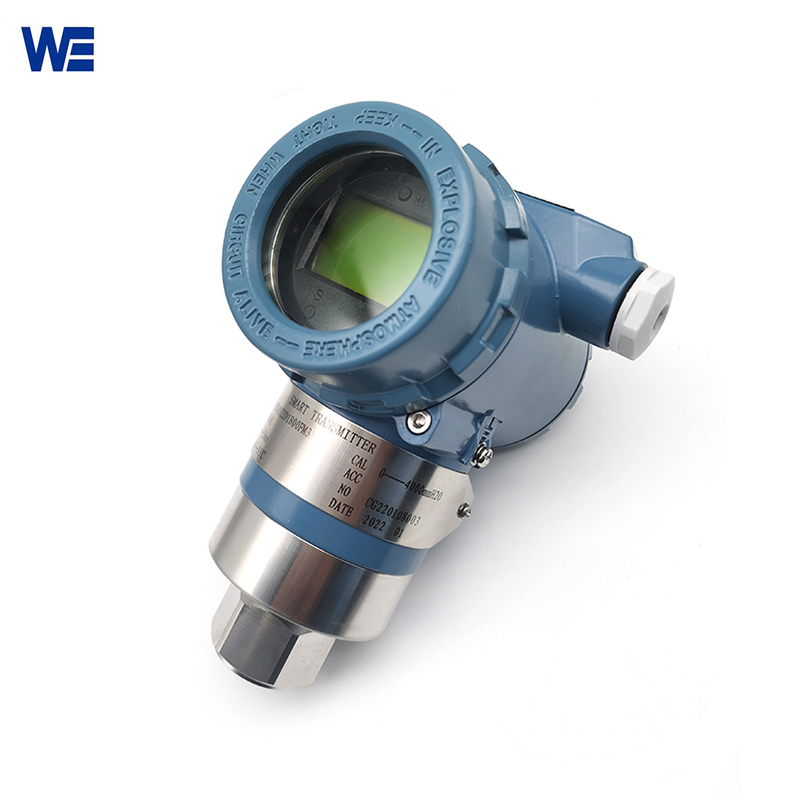

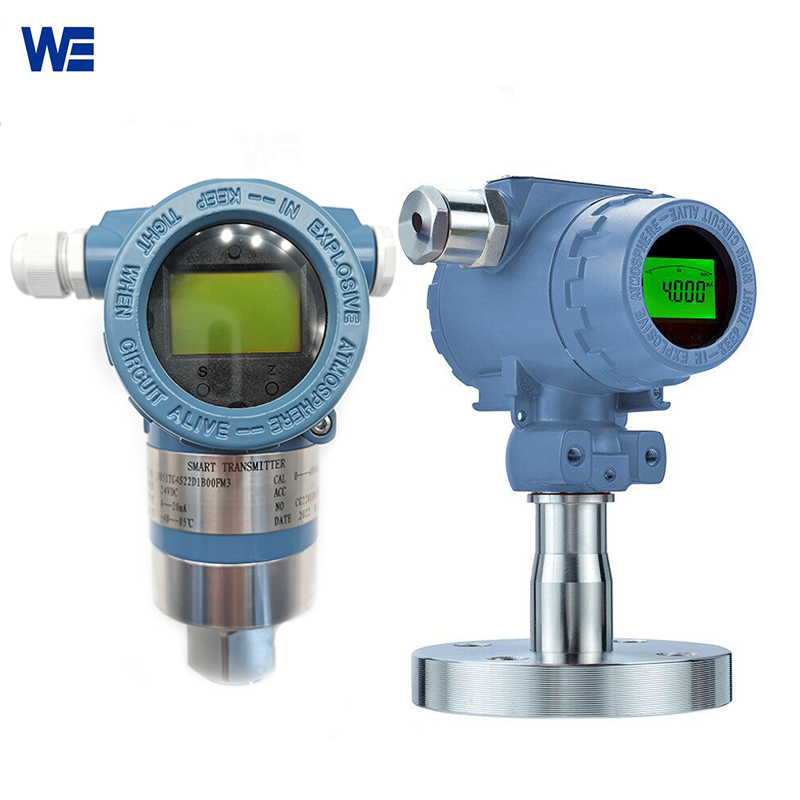

LCD Display Absolute Pressure Transmitter

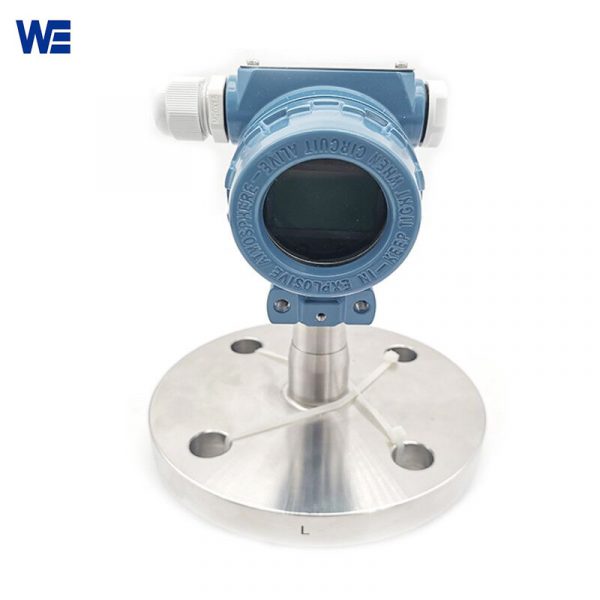

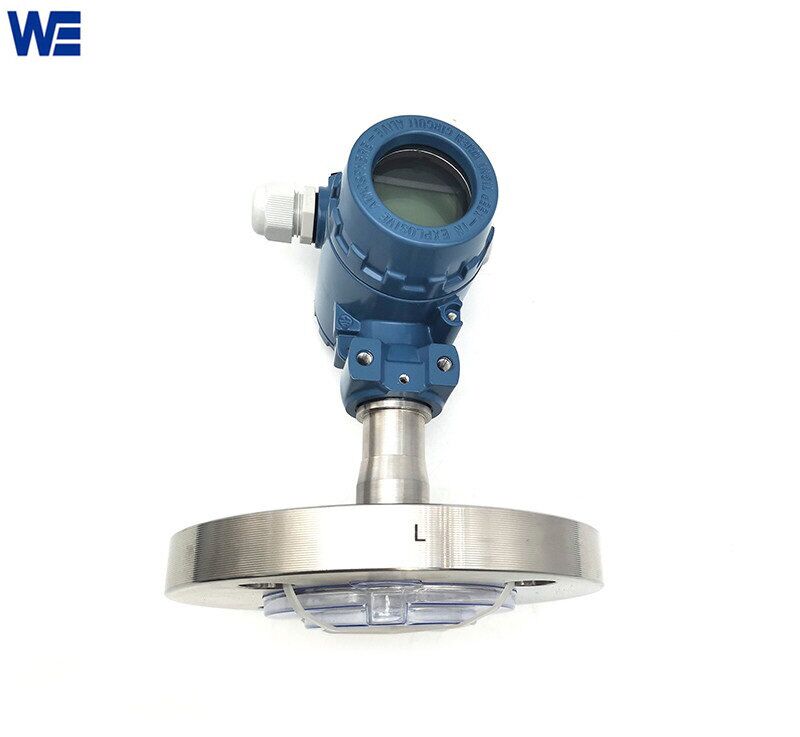

WE3051TG Series LCD display absolute pressure transmitter is also called in-line pressure transmitter. The absolute pressure transmitter with an LCD display is threaded or flange mounted to meet various site conditions. Although it can also be used for gases and steam, the absolute pressure transmitter with LCD display is frequently utilized for water too.

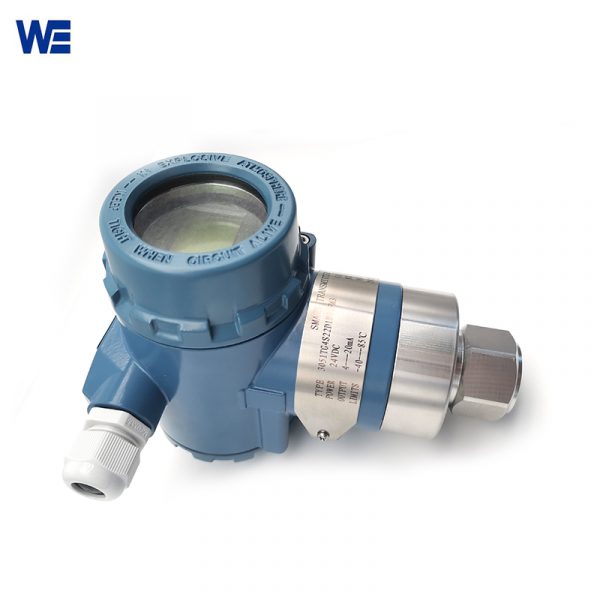

WE3051TG LCD display absolute pressure transmitter is also called in-line pressure transmitter. The absolute pressure transmitter with an LCD display is threaded and enables both female and male mounting. Although it can also be used for gases and steam, the absolute pressure transmitter with LCD display is frequently utilized for water.

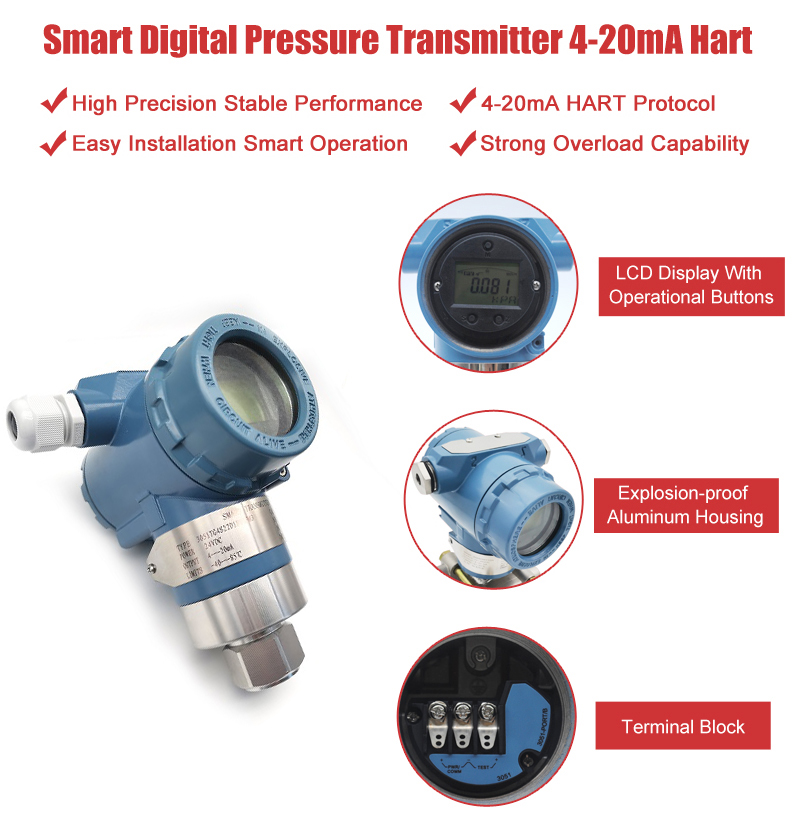

The outstanding feature of the 3051TG absolute pressure transmitter is that the buyer can choose the type of sensor according to his needs. We currently support “metal capacitive sensors” and “silicon sensors”. The presence of a smart dial allows the pressure transmitter to easily output signals and detect in real time.
| Description of goods | Intelligent Pressure Transmitter – 3051TG |
| Application | Gauge pressure |
| Medium | Liquid, Gas or Vapor |
| Measuring range（MPa） | 0-41MPa |
| Display | LCD 5 Digits programmable & 0-100% Bargraph |
| Dump adjusting | Constant of time 0 – 32 seconds |
| Response Time | 100 mS |
| Mounting | Direct installation or bracket on 2″ Pipe |
| Load | ohm=(Vdc-9)*50 |
| Keypad | 3 internal keys for programming and output setting |
| Power Supply | 9 ~ 36 VDC |
| Humidity Limit | 0 to 100% Relative Humidity |
| Dimensions | 102 mm ( W ) * 160 mm ( H ) * 130 mm ( D ) |
| Weight | 1.3 Kg |
| Turndown ratio | 100:1 |
| Accuracy | ±0.1% |
| Stability | ±0.2% URL for 2 years |
| Output | 4-20mA DC/HART protocol |
| Connection | SUS304/SUS316 |
| Diaphragm Material | Stainless Steel 316L, Hastelloy C |
| Cable Entry | M20 Conduit Threads / 1/2″NPT (Female) |
| Housing | Low copper cast aluminum alloy with polyurethane, light blue paint |
| Working temperature | -25 to 95°C |
| Media temperature | -40-120℃ |
| Process connection | M20*1.5(M), G1/2(M), G1/4 (M), 1/2-14NPT(M), etc |
| Over Pressure Limit | 120% of full scale |
| Sensor type | Metal capacitive sensor, Silicon sensor |
| Protection class | IP65 |
