Level Sensor For Acid Liquid Tanks
Level sensor for acid liquid tanks is typically used in hydrochloric acid tanks, hypochlorous acid tanks, sulfuric acid tanks, nitric acid tanks. The duct pipes made of UPVC, PP, or SS304 with tetrafluoroethylene (PTFE) lining .
Wepower Electronic Provides Special Material Customization:
Level sensor for acid liquid tanks is typically used in hydrochloric acid tanks, hypochlorous acid tanks, sulfuric acid tanks, nitric acid tanks. The duct pipes made of UPVC, PP, or SS304 with tetrafluoroethylene (PTFE) lining . As the level sensor for acid liquid tanks is side-mounted by the tanks external , therefore avoiding the sensor contacting directly with the corrosive acid liquids .

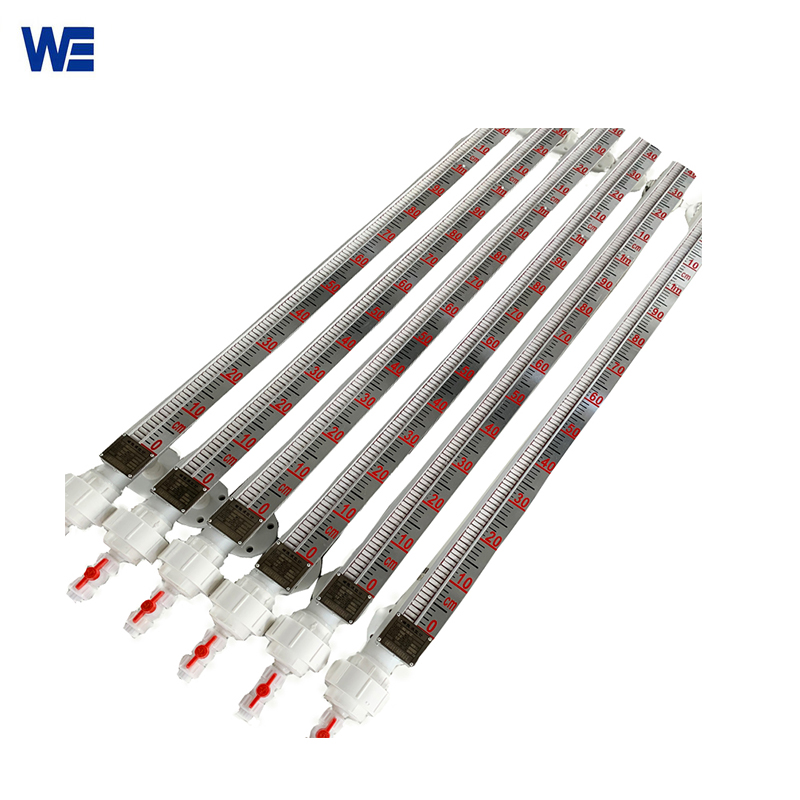

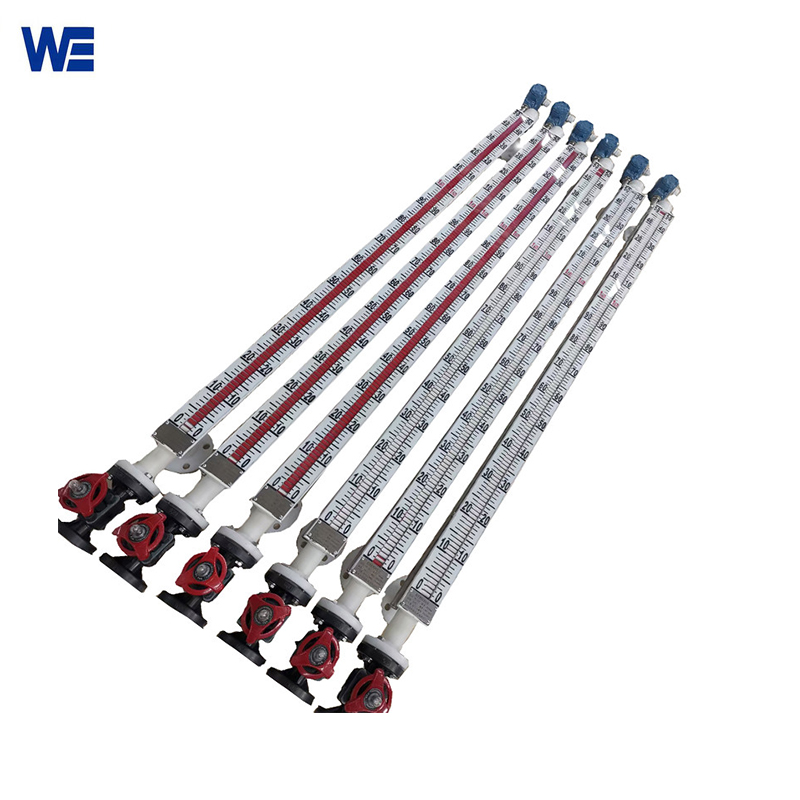

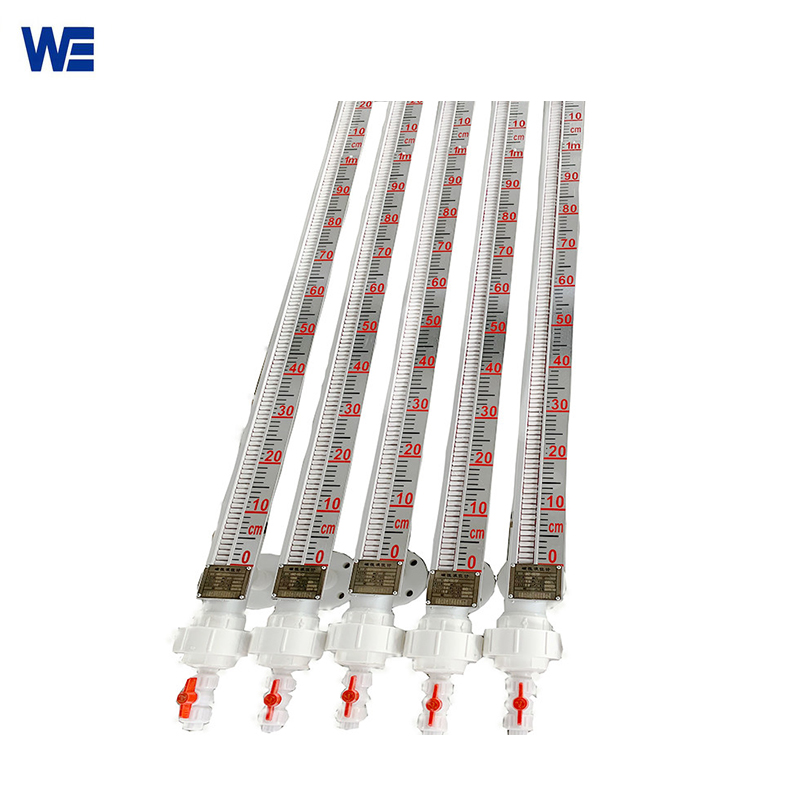

Based on our rich experience , we suggest PP or PVC duct pipe for strong acid corrosive liquids when the ambient temperature and pressure as well as the measuring range is less than 2 meters , that is because the PP/ PVC pipes have the material aging problem , which can not last for long time. While the working condition is high pressure , high temperature and long measuring range , we always suggest the stainless steel 304 duct pipe with the inner PTFE lining for long lifetime .
| Product Name | Level sensor for acid liquid tanks |
| Measuring range | 150～15000mm |
| Accuracy | ±10mm |
| Working pressure | Normal pressure～25MPa |
| Working temperature: | -200～600℃ |
| Medium density | 0.5～2.0 g/cm3 |
| Medium density difference | ≥150kg/m3 (measurement boundary) |
| Environmental vibration: | frequency≤25Hz, amplitude≤0.5mm |
| Following speed: | ≤0.08m/s |
| Medium viscosity | ≤0.4Pa.S (jacket heating can be used to improve viscosity conditions) |
| Process connection | flange, or the installation method and specifications specified by the customer |
| Installation Methods | Top Mounting: suitable for underground liquid storage tanks, level diplay on the ground; Side Mounting |
| Material: | Duct Pipe : 304; 316L; PP;PVC; Stainless steel 304/316 with PTFE Lining
Float : 304, 316L, PTFE; Titanium, PP, PVC |
Transmitter fixed on the measuring duct pipe of the magnetic level gauge by a clamp, and the transmitter can be installed at the upper end or at the lower end. The transmitter is an electronic precision part, which is strongly affected by the environment. The normal operating temperature range is -40 to 85°C, there may be unclear display or signal interruption If the environment is harsh.
