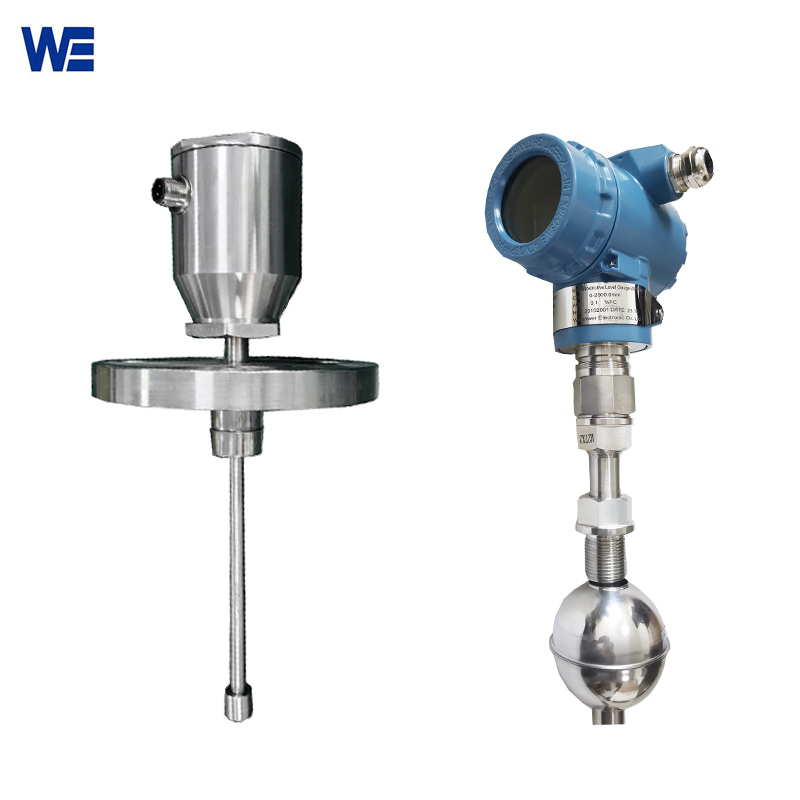

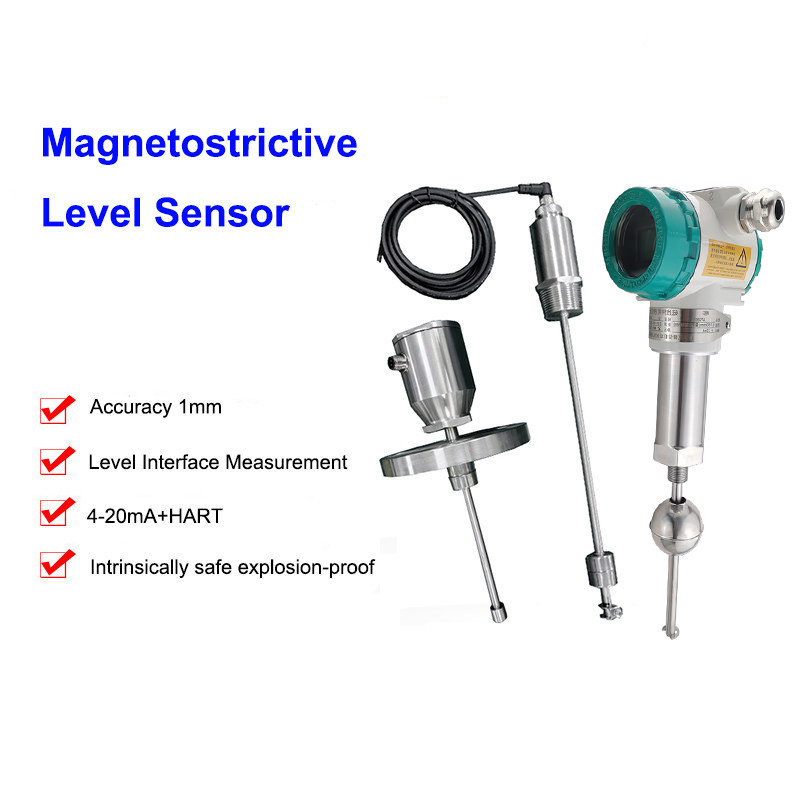

Magnetostrictive Liquid Level Sensor
Magnetostrictive Liquid Level Sensor is composed of stainless steel tube (measurement rod), magnetostrictive wire (waveguide wire), movable float (with permanent magnet inside) and other parts.
Parts:
Magnetostrictive Liquid Level Sensor is composed of Stainless Steel Tube (measurement rod), Magnetostrictive Wire (waveguide wire), Movable Float (with permanent magnet inside) and other parts.
Working Principle:
A pulse electromagnetic field is created around the waveguide wire while the magnetostrictive liquid level sensor is functioning. This is caused by the circuit component stimulating a pulse current on the waveguide wire.
When the liquid level changes, a float located outside the sensor rod can travel up and down along the rod. Inside the float is a collection of permanent magnetic rings. The magnetic field surrounding the float changes as the pulse current magnetic field collides with the magnetic ring magnetic field produced by the float. This causes the waveguide wire constructed of magnetostrictive material to produce a torsional wave pulse at the float’s location. This pulse travels at a set pace. The inspection agency passes back and detects the waveguide wire. The position of the liquid surface, or the float, can be determined by measuring the time difference between the pulse current and the torsion wave.
| Product Name | Magnetostrictive liquid level sensor |
| Power Supply | 24V±2.4V. DC |
| Working Temperature | Electronic Part：－40 ℃ ～ + 80℃ |
| Measuring Rod ：－40℃ ～＋110℃ | |
| Range | Hard Rod：150mm～7000mm，Soft Rod：Max20000mm |
| Output Signal | 4～20mA；0～5V；0～10V；±5V；±10V；RS-485 |
| Linear Error | Better±0.05%FS；When Rangeless than 300mm,Error less than150μm |
| Repeatability | Better ±0.002%FS |
| Output Temp Drift | 50ppm/℃ |
| Power Consumption | ≤50mA |
| Output Ripple Current | ≤20mV |
| Fade Zone | Fade Zone ： Soft Rod :100mm(Upper ,300mm(Under) |
| Hard Rod：51mm (Upper)，36mm(Under);Can Be Changed According To User’s Requirement | |
| Load Capacity | 4～20mA Output：Load Capacity ≤500Ω |
| 0～5V，0～10V Output ：Min Controller Load≥5kΩ | |
| Measuring Rod Material | 0Cr18Ni9、1Cr18Ni9Ti Or Customized |
| Housing Material | 1Cr18Ni9Ti |
| Wiring | 1.Shielded Cable Connection，Standard Length 1.5m(Can be Changed ) |
| 2 Aviation Plug Connection | |
| 3.Terminal Connection | |
| Float Material | 0Cr18Ni9、SS316、Nitrile |
| Process Connecting | Thread,Connecter Head,Positioning Ring , Suspension or Customized |
| IP Grade ： | IP65 |
| Ordering Information Sheet | ||||||
| Magnetostrictive Level Sensor | ||||||
| CODE | TYPE | |||||
| A | Standard | |||||
| B | High Temp | |||||
| C | Sanitary(Hygienic) | |||||
| / | CODE | Length | ||||
| 01 | 1000mm（Standard ） | |||||
| 02 | Tube Extension 1000mm～3000mm | |||||
| 03 | Cable Extension Split 1～20000mm | |||||
| / | CODE | Power Supply | ||||
| D | 24V DC±10% | |||||
| / | CODE | Material | ||||
| 1 | SS304（Standard )） | |||||
| 2 | SS316 | |||||
| 3 | Anti-corrosive ,With PTFE Coating | |||||
| / | CODE | Process Connecting | ||||
| G | G1”Thread （Standard)） | |||||
| T | 1”NPT Thread | |||||
| C | Other ( Customer Remark ) | |||||
| F | Flange（Please Remark Flange Spec) | |||||
| / | CODE | Other Parameters | ||||
| A | Normal Temp: ℃ | |||||
| B | Normal Pressure : Kpa | |||||
| C | IP Grade：IP65 | |||||
| D | Explosion-proof ：ExdⅡ CT5 | |||||
| E | Max Temp: ℃ | |||||
| F | Max Pressure: Kpa or Mpa | |||||
| （） | Other Request | |||||
| / | ||||||
| A | 01 | D | 1 | G | AB (EXAMPLE ) | |
