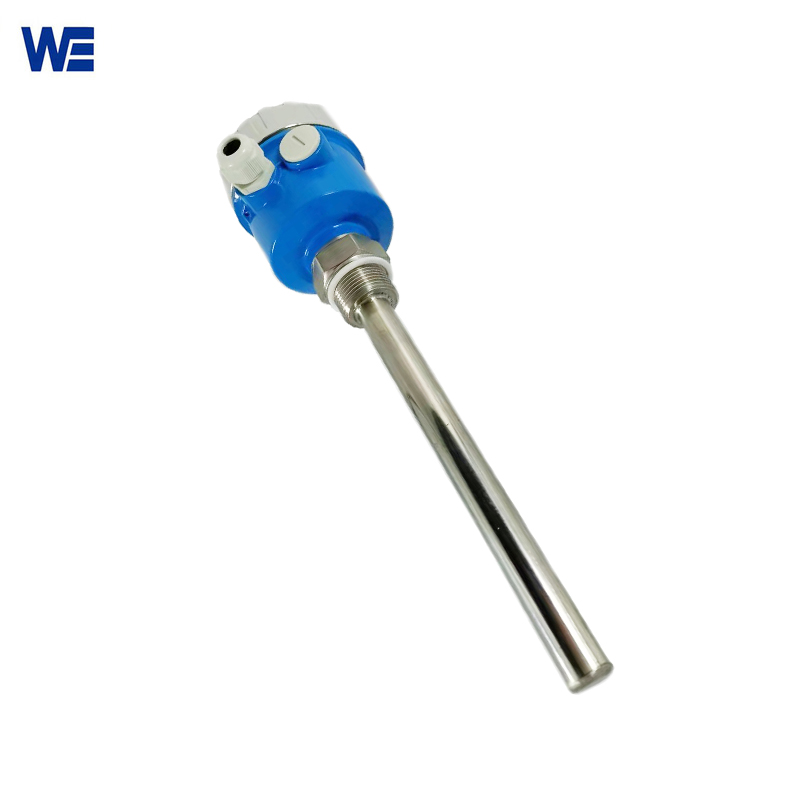

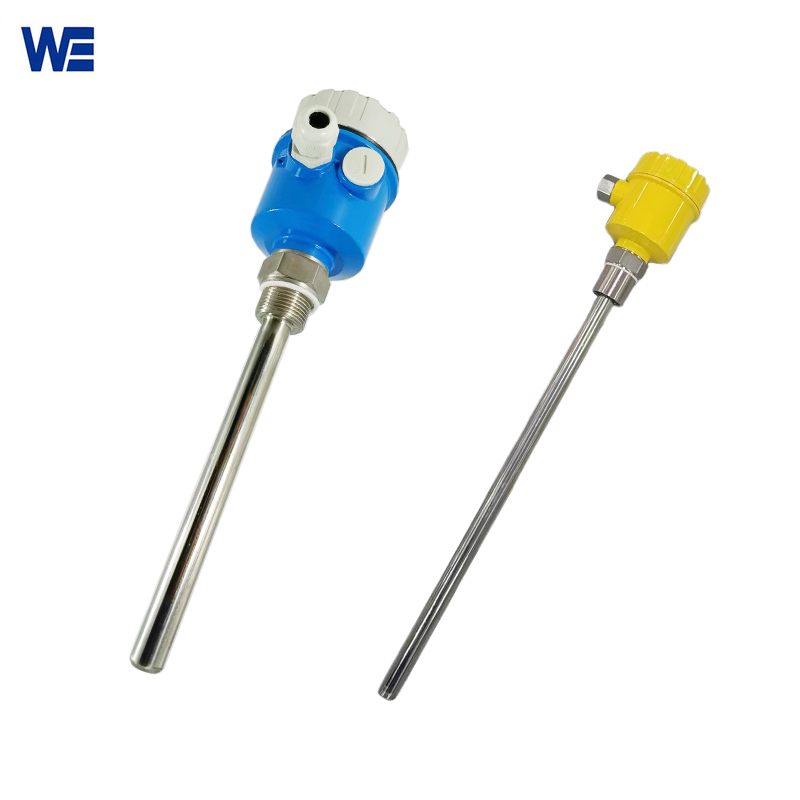

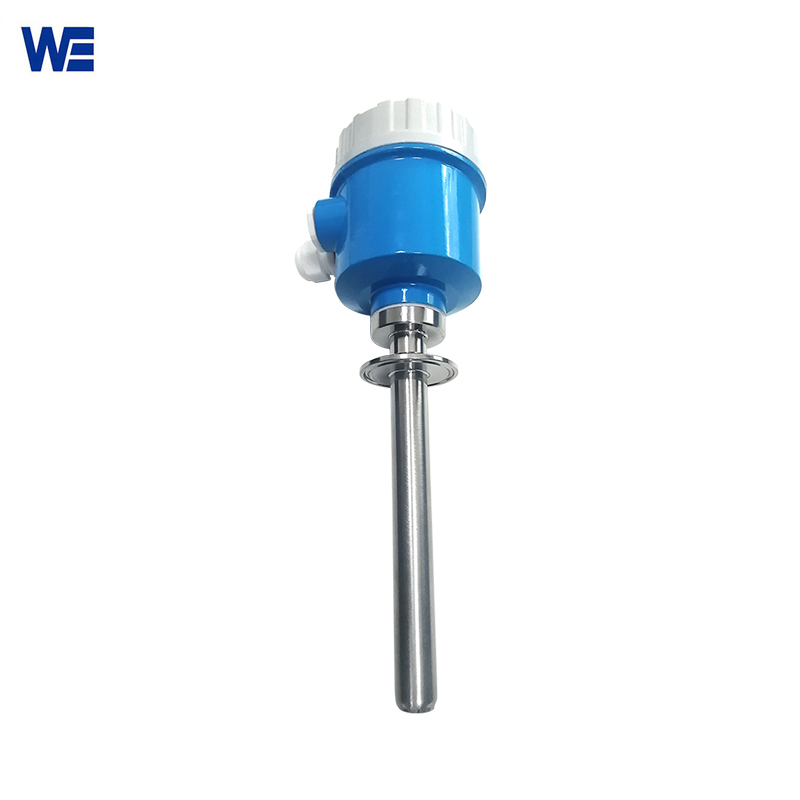

Vibrating Rod Level Switch
The vibrating rod level switch is a type of tuning fork level switch. The vibrating rod level switch independently developed by Wepower Electronic has won the favor of customers all over the world with its high quality and high cost performance.
What’s The Working Principle Of Vibrating Rod Level Switch?
Vibrating Rod Level Switch is one kind of tuning fork level switch. The vibrating rod level switch produces vibrations powered by components by utilizing the tuning fork’s “resonance” principle. A switch action will only be produced by a sharp fall in vibration amplitude when the probe rod is fully encircled by materials.
Difference From Tuning Fork Switch:
Vibrating Rod Level Switch is different from the tuning fork level switch in that the tuning fork switch has two forks vibrating, while the vibrating rod level switch has one probe rod vibrating. Therefore, it is not afraid of material hanging, impact, or clamping.
| Product Name | Vibrating rod level switch |
| Medium Temperature Range | -20 ℃ ~ 200 ℃ |
| Ambient Temperature | -20 ℃ ~ 80 ℃ |
| Measured Medium | Powder & solid |
| Measured Medium Density | Solid ≥ 0.1g / cm3 |
| Measured Solid Particle Size | ≤ 10mm |
| Pressure Range | ≤ 1MPa |
| Housing Material | Die-cast aluminum |
| Fork Material | 1Cr18Ni9Ti |
| Protection Grade | IP65 |
| Process Connecting | 1 “NPT thread; Flange (user selected) |
| Power Supply | DC24V; AC220V 50HZ |
| Signal Output / Relay Output | 5A 220V AC / 3A 24V DC |
| Power Consumption | ≤ 2W |
| Tuning Fork Vibration Frequency | 300 ± 50Hz |
| Environmental Vibration Level | V.L.4 acceleration is not greater than 1g |
| Switch Signal Action Time | 1-60S |
Wiring:
Installation Guidance
