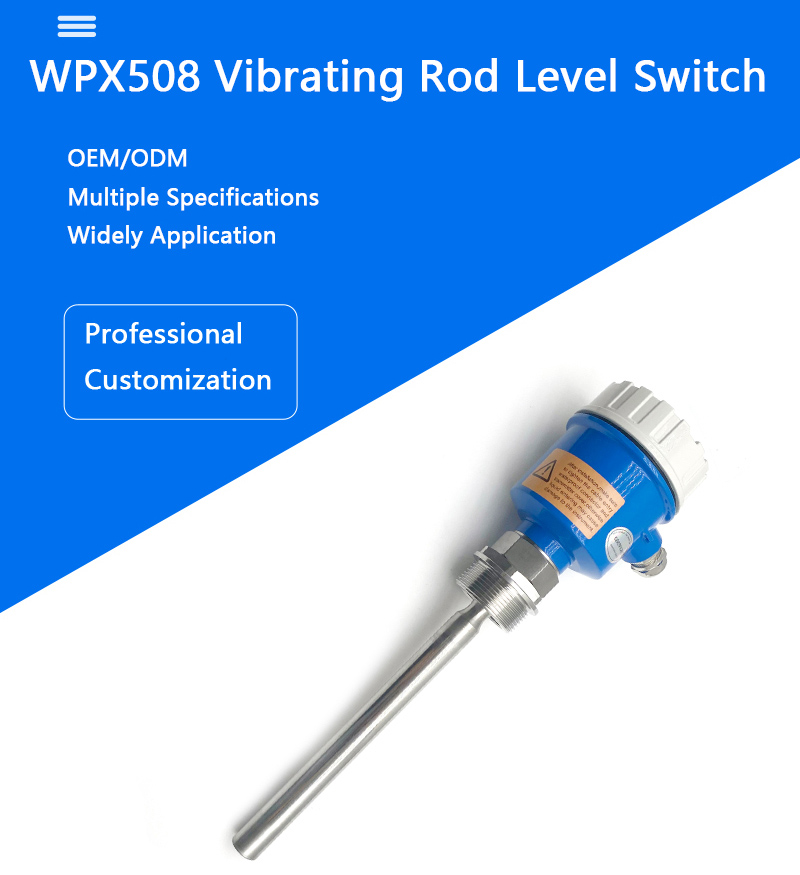

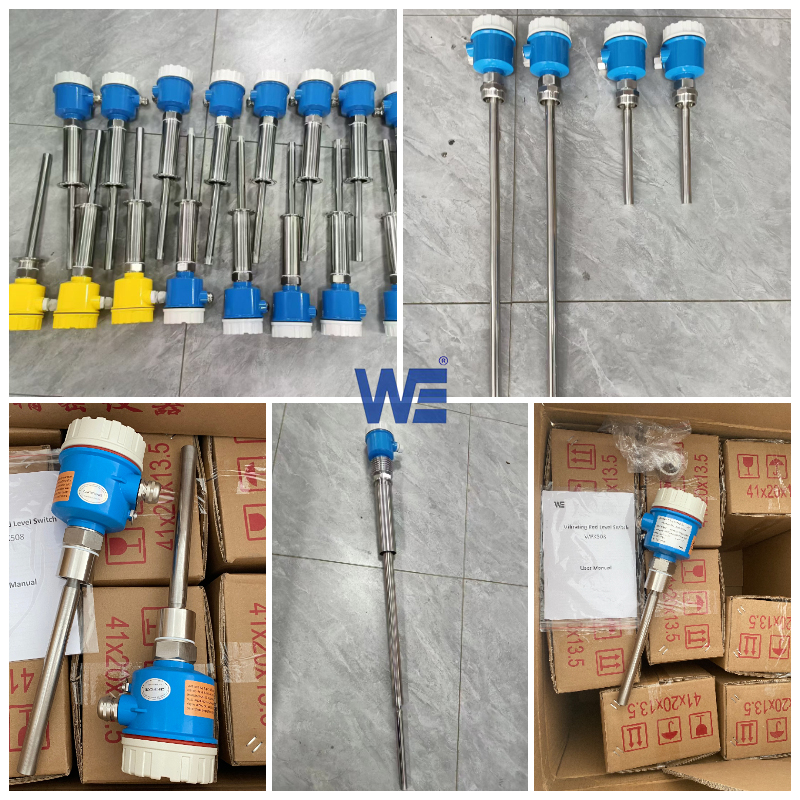

Vibrating Rod Level Switch WPX508

The vibrating rod level switch WPX508 is based on the principle of vibration frequency change, detects changes in vibration state in real time, triggers switch signal output, and realizes accurate detection and control of material level.

Category: Rod Level Switch

Description

What’s The Working Principle of The WPX508 Vibrating Rod Level Switch?

The vibrating rod level switch is based on the principle of vibration frequency change. The rod vibrates at a certain frequency due to an inside piezoelectric device. The frequency and amplitude of the vibrations vary when the rod is covered by medium, which causes a switch signal to be output for accurate level detection and control. Because of this principle, stability and dependability are maintained even in the face of complex operating conditions, regardless of the medium’s density and dielectric constant.

Why Choose Wepower’s Vibrating Rod Point Level Switch?

Wepower’s vibrating rod level switches can be customized to meet customer needs, including insertion length and process connection,etc., perfectly adapting to various working conditions. Each product undergoes rigorous factory testing to ensure stable and reliable performance. Wepower provides professional technical support and after-sales service; choose Wepower, choose peace of mind.

Parameters

Product Name	Vibrating Rod Level Switch
Model	WPX508
Medium Temperature Range	-20 ℃ ~ 200 ℃
Ambient Temperature	-20 ℃ ~ 80 ℃
Power Consumption	3.5W
Vibration Frequency	280Hz
Measured Medium	Powder & solid; Liquids
Pressure Range	≤ 2MPa
Housing Material	Die-cast aluminum
Cable Entry	M20×1.5; 1/2”NPT
Rod Material	Stainless steel 304
Protection Grade	IP65
Process Connecting	1 ” thread; Flange (user selected); clamp; or other customized options
Power Supply	DC24V; AC220V
Insertion Length	200mm/270mm, other customized length
Switch Function	Normally open NO; Normally closed NC, common COM.
Explosion-Proof Grade	Ex d
