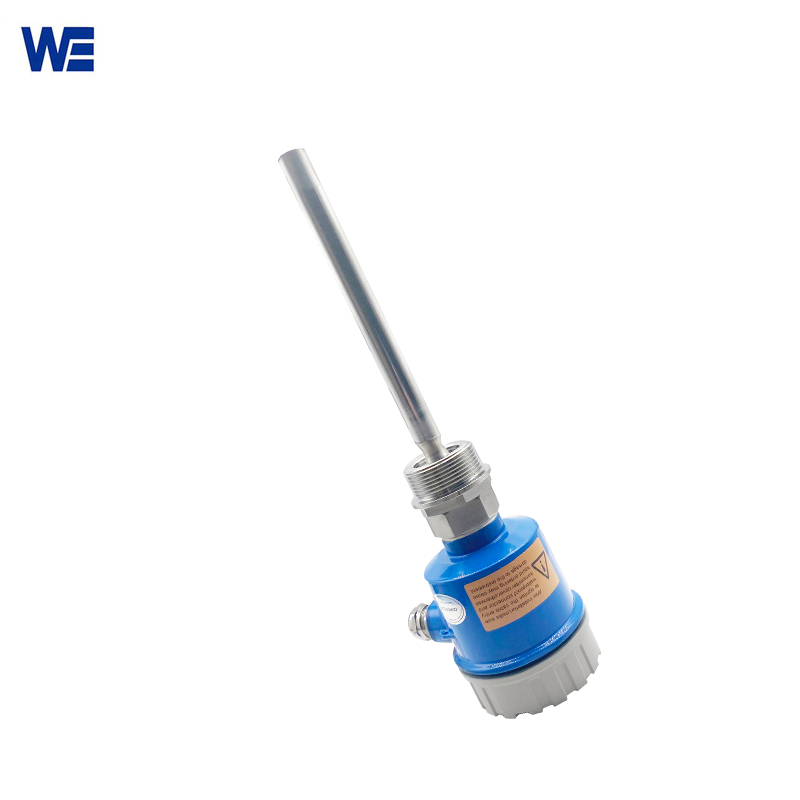

Vibrating Rod Point Level Switch
The vibrating rod design minimizes material jamming and features an integrally molded switch with no moving parts. It’s instantly usable after installation with no calibration needed. The WPX508 vibrating rod point level switch measures liquids, fluids, powders, and solids, and can be installed side or top-mounted with a customizable insertion length.
The smooth vibrating rod design reduces the possibility of material jamming or snagging, and our vibrating rod point level switch is integrally molded with no moving parts. After installation, it is immediately usable and doesn’t need to be calibrated on location. WPX508 vibrating rod point level switch do not only measure liquids and fluids, but also work well for a plenty of powders and solids.It can install both side-mounted and top-mounted with customized insertion length.
What Are The Applications Of Single-Bar Vibrating Level Switch?
- High and low level alarms for industrial storage tanks, reactors, oil tanks, and water tanks.
- Automatic pump start/stop control
- Level monitoring in chemical, environmental protection, and water treatment systems.
- Detection of clean/corrosive liquids in food, pharmaceuticals, coatings, etc.
- Monitoring of material levels in flour silos, grain depot tanks, coal pellet tanks, and other material storage tanks.
Parameters
| Product Name | Vibrating Rod Point Level Switch |
| Model | WPX508 |
| Medium Temperature Range | -20 ℃ ~ 200 ℃ |
| Ambient Temperature | -20 ℃ ~ 80 ℃ |
| Power Consumption | 3.5W |
| Vibration Frequency | 280Hz |
| Measured Medium | Powder & solid; Liquids |
| Pressure Range | ≤ 2MPa |
| Housing Material | Die-cast aluminum |
| Cable Entry | M20×1.5; 1/2”NPT |
| Rod Material | Stainless steel 304 |
| Protection Grade | IP65 |
| Process Connecting | 1 ” thread; Flange (user selected); clamp; or other customized options |
| Power Supply | DC24V; AC220V |
| Insertion Length | 200mm/270mm, other customized length |
| Switch Function | Normally open NO; Normally closed NC, common COM. |
| Explosion-Proof Grade | Ex d |
Installation Guidance
Wiring Diagram
