WPX508 vibrating rod level switch-wholesale price

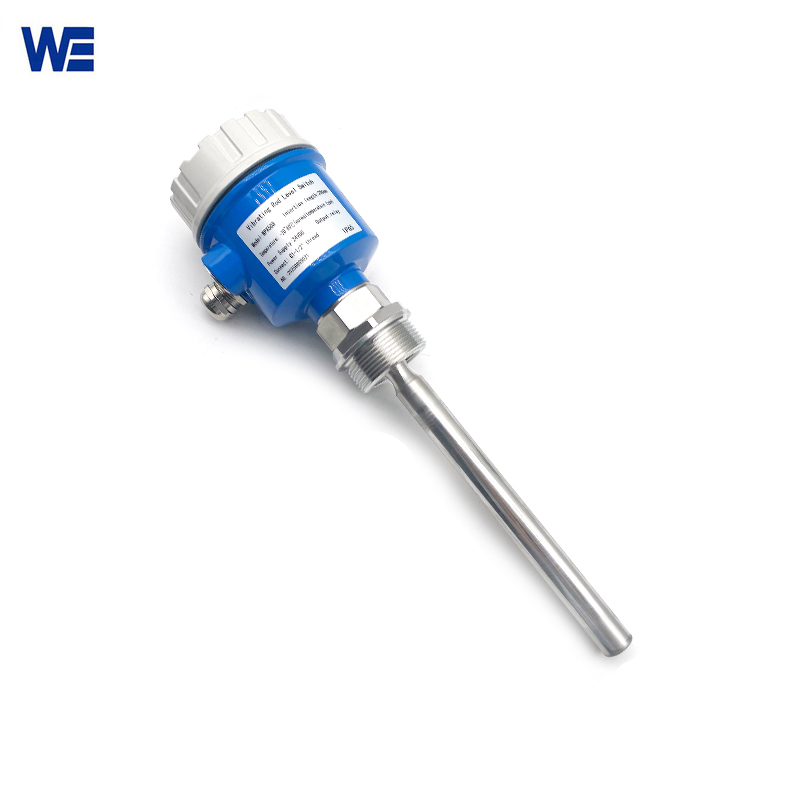

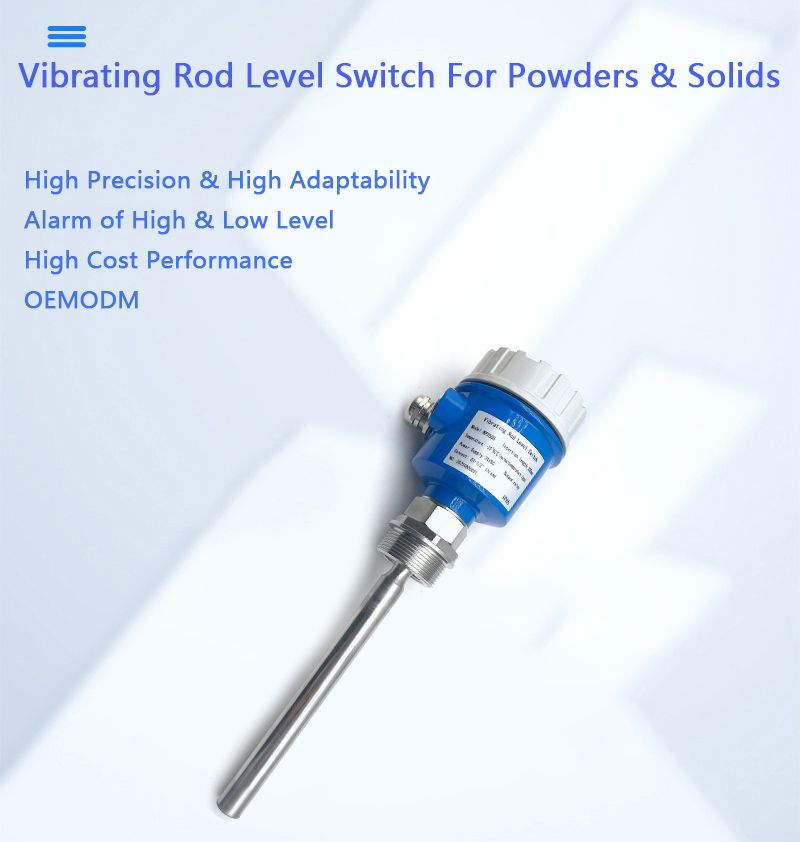

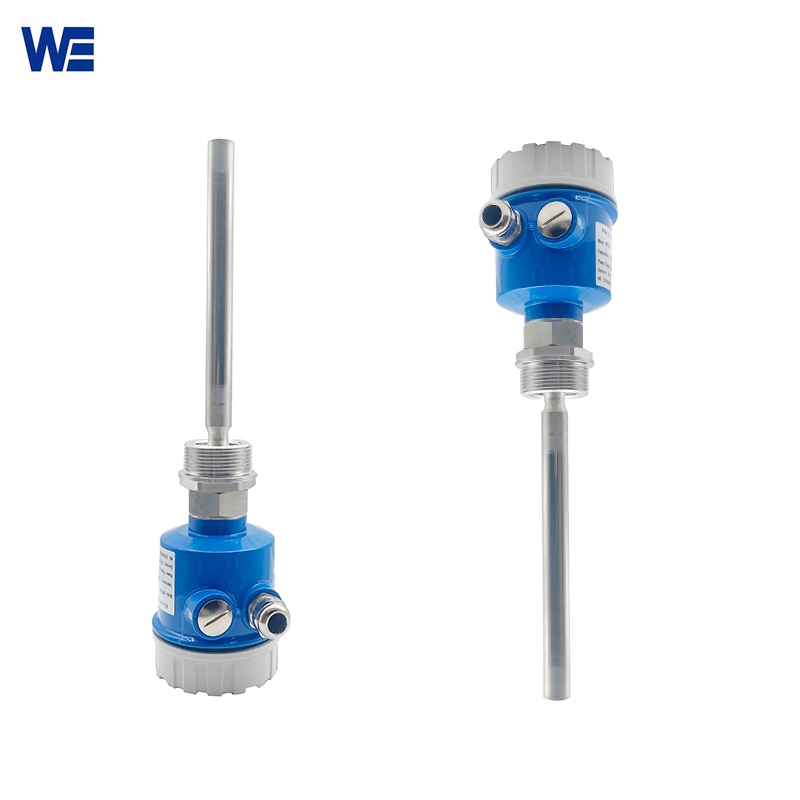

Vibration Rod Level Switch

This vibration rod level switch uses vibration monitoring principles, with a vibrating rod as the core sensing component. Built-in electronic components drive the vibrating rod to vibrate. When the measured medium comes into contact with and envelops the vibrating rod, the vibration frequency and state change, thereby outputting a switching signal. As the popular level control switch for industry, this vibration rod level switch features the one single rod which plays important roles in measuring various powders and solids.

Category: Rod Level Switch

Description

Features of Vibration Rod Level Switch:

Simple Structure, No Easily Damaged Parts
Anti-Fouling & Anti-Interference
Flexible Installation & Highly Versatile
No Moved Parts for Long Durability

Quality Commitment Worry-Free Choice

We manufacture each vibration rod level switch to industrial-grade standards, rigorously controlling every step from material selection to factory testing to ensure high sensitivity and stability. Building a robust safety barrier for your equipment and systems.

Parameters

Product Name	Vibration Rod Level Switch
Model	WPX508
Medium Temperature Range	-20 ℃ ~ 200 ℃
Ambient Temperature	-20 ℃ ~ 80 ℃
Power Consumption	3.5W
Vibration Frequency	280Hz
Measured Medium	Powder & solid; Liquids
Pressure Range	≤ 2MPa
Housing Material	Die-cast aluminum
Cable Entry	M20×1.5; 1/2”NPT
Rod Material	Stainless steel 304
Protection Grade	IP65

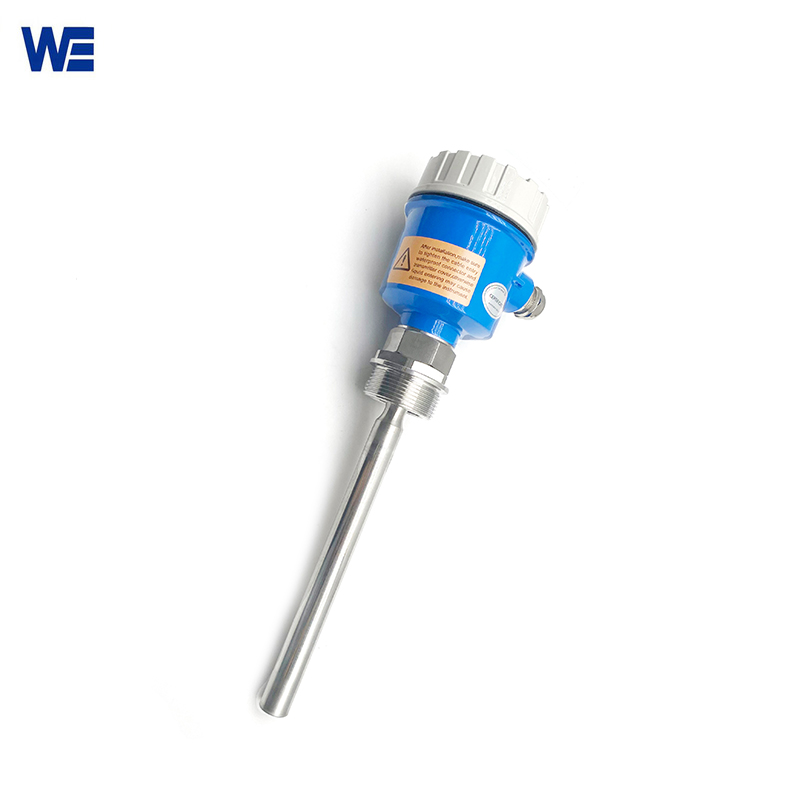

Process Connecting	1 ” thread; Flange (user selected); clamp; or other customized options
Power Supply	DC24V; AC220V
Insertion Length	200mm/270mm, other customized length
Switch Function	Normally open NO; Normally closed NC, common COM.
Explosion-Proof Grade	Ex d
