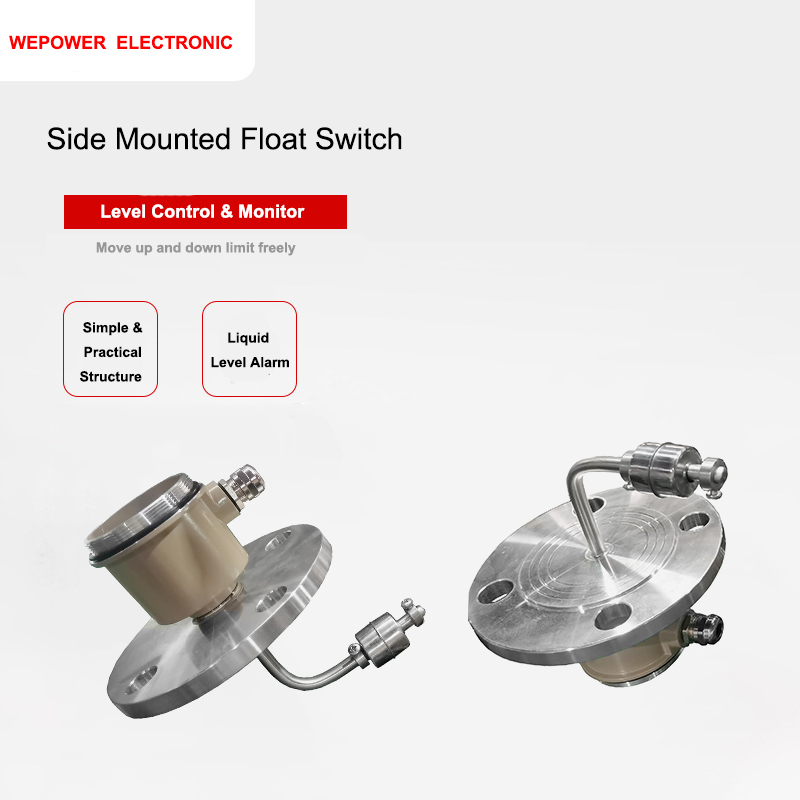

Water Float Switch
The water float switch is a well-knit level switch that usually installed on the tank wall or above. Wepower Electronic has rich experiences in liquid tank level measurement. Any inquiry, please contact us.
Working Principle Of Water Float Switch:
The contacting Water Float Switches are typically installed at the upper and lower limits of the tank’s safe liquid level, respectively.The sensor of the water float switch will extend into the interior and contact the liquid. When the liquid level in the water tank changes, and floats up or down 14 degrees in accordance with the horizontal line. For water float switches, stainless steel and aluminum are both options. The mirror-polished stainless steel case’s surface imparts a gleaming metallic appearance. A water float switch is a device that is used to detect and control liquid levels in a variety of applications across multiple industries.
Where Water Float Switches Are Employed:

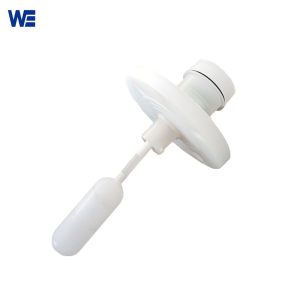

The use of a Side Mounted Level Switch is versatile and can be found in both domestic and industrial measuring. Pumps, liquid containers, sewage tanks, water treatment processes, and even marine environments all require water float switches.
| Product | Water float switch |
| Model number | WPS series |
| Measuring media | Liquid (diesel, base oil, water, chemical solution, chemical reagent, LPG etc.) |
| Wiring box | ABS aluminum |
| Output contact | 5A/220VAC |
| Contact form | SPDT（IC） |
| Type | Side-mounted threaded/flange type and top mounted threaded/flange type |
| Operating pressure | 15bar (side mounted)~ 30bar (special customization) |
| Operating temperature | -20~200°C , support high temp type |
| Wetted material | SUS304/316 |
| Applicable specific gravity | 0.65 side mounted /0.55 top mounted |
| Probe/Rod | Straight(standard) / L-shaped type |
Installation:
