Tips for Using Ultrasonic Flow Meter

Key Considerations When Using an Ultrasonic Flow Meter

Importance of Proper Installation for Accurate Measurements

Setting up an ultrasonic flow meter the right way is super important for getting good measurements. The device uses sound waves to figure out the flow rate. Any wrong placement can mess up the results. For example, you need to line up the ultrasonic flow sensor with the direction the liquid flows.

Also, the pipe surface where the sensor goes must be clean. It should have no dirt or junk that could block the sound waves.

Ensuring Compatibility with the Measured Fluid

Different liquids have different traits, like thickness or temperature. These can affect how well an ultrasonic flow meter works. You need to check if the meter fits the liquid you’re measuring. For instance, Wepower Electronic’s ultrasonic water flow meters are made for water-based liquids. But they can also work for other liquids if set up properly.

Regular Maintenance to Enhance Performance

Keeping an ultrasonic flow meter in good shape is key to making it last and work well. Cleaning the sensors often stops buildup that could block sound waves. Also, checking the device now and then makes sure it measures correctly.

Wepower Electronic offers help with their products. They provide calibration services and fix problems for their ultrasonic flow meters and sensors. This support keeps the devices working great over time.

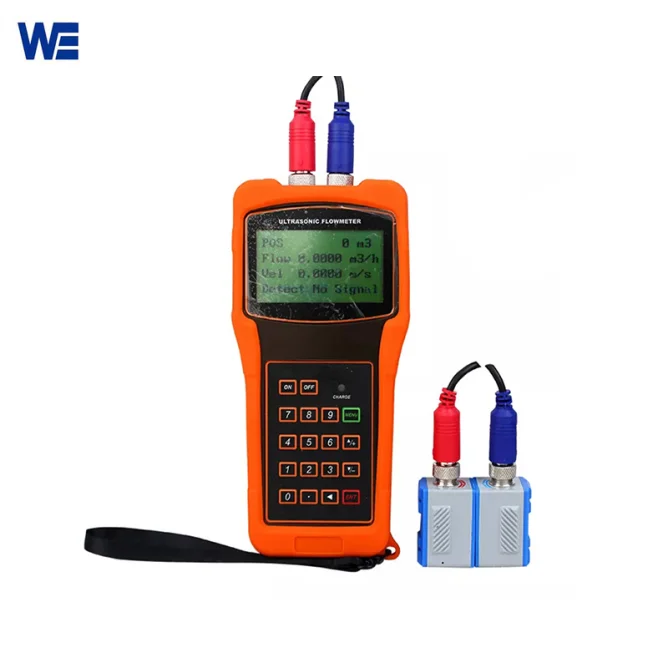

How to Use a Handheld Ultrasonic Flow Meter Effectively

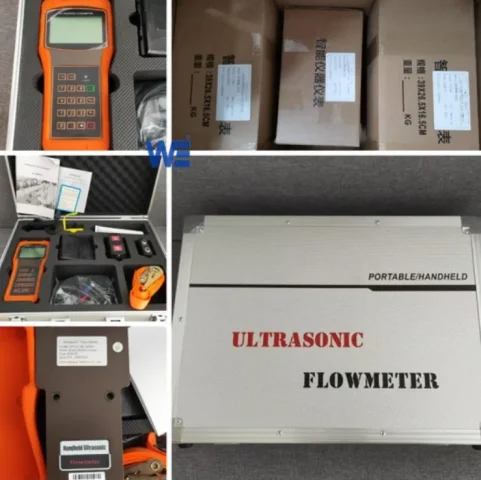

Preparing the Portable Ultrasonic Flow Meter for Operation

Getting a handheld ultrasonic flow meter ready is important for good results. First, pick a good spot on the pipe for measuring. This part of the pipe should be straight. It shouldn’t have bends or valves too close upstream or downstream.

Next, clean the pipe where the sensor will go. Put on coupling gel or grease. This stops air gaps between the sensor and pipe. Air gaps can mess up the sound waves.

Steps to Accurately Measure Flow Rate with a Handheld Device

1. Attach Sensors: Put the sensors in the right spots on the pipe. Use the pipe’s size to guide you.
2. Enter Details: Type in info like pipe material, wall thickness, liquid type, and temperature.
3. Calibrate: Set up the device using known flow settings or the maker’s instructions.
4. Measure: Turn on the measurement mode. Check the flow data on the screen.

Wepower Electronic’s handheld water flow meters make these steps easy. They have simple menus and ready settings for common uses.

Common Mistakes to Avoid During Measurement

One big mistake is putting sensors in the wrong spot. This can cause bad readings or no signal. Another error is not cleaning the pipe well before attaching sensors.

You should also avoid skipping calibration. Using wrong details about the liquid can mess things up too. Wepower Electronic includes clear manuals with their devices. These help users avoid mistakes during setup and use.

Optimizing the Use of an Ultrasonic Water Flow Meter

Factors That Influence the Accuracy of an Ultrasonic Water Flow Meter

The accuracy of an ultrasonic water flow meter depends on a few things. How well it’s set up matters a lot. The liquid’s traits, like thickness or temperature, are also important. Even the environment around the device can affect it.

Lining up the ultrasonic flow sensor with the flow direction is key for good measurements. The pipe surface needs to be clean. It shouldn’t have anything blocking the sound waves.

Best Practices for Monitoring Water Flow in Different Applications

To monitor water flow well, pick the right ultrasonic flow meter for the job. For example, handheld ultrasonic flow meters are great for short-term checks or testing different spots. They’re easy to carry and use, which is perfect for industries needing flexibility.

For long-term monitoring in factories, Clamp-on Ultrasonic Flow Meters are strong choices. Setting them up correctly using the maker’s guide is important. Wepower Electronic gives clear steps for their ultrasonic flow transmitters to make this easy.

Troubleshooting Tips for Consistent Performance

Sometimes, ultrasonic water flow meters have issues like losing signals or giving wrong readings. Start by checking if the sensors are lined up right. Make sure they’re tightly attached to the pipe. Cleaning the sensors and adding coupling gel can fix problems from bad contact.

If problems don’t go away, ask for help. Wepower Electronic offers support 24 hours a day on workdays. We can assist with fixing issues on their ultrasonic flow meters.

Frequently Asked Questions

How do I maintain my handheld ultrasonic flow meter?

Clean the sensors often. Make sure they’re lined up right when you use them. Check calibration regularly to keep measurements accurate.

Can an ultrasonic water flow meter measure liquids other than water?

Yes! These devices can measure different liquids. It depends on things like viscosity and temperature listed in the product guide.

Are there specific setup needs for the best performance?

Yes. Follow the maker’s instructions closely. Use a straight pipe section without bends or valves near the measurement spot.
