What Are the Main Applications of Diaphragm Pressure Sensors in Industrial Automation?

Key Features and Advantages of Diaphragm Pressure Sensors

How Diaphragm Pressure Sensors Work in Industrial Settings

Diaphragm pressure transmitters are super important in industrial automation. They give spot-on and steady pressure readings. These gadgets use a diaphragm as the main part to feel pressure changes. The diaphragm bends when pressure moves up or down. This bending gets turned into an electric signal. Usually, it works through a setup called a Wheatstone bridge on a tiny silicon chip.

The stuff being measured, like gas or liquid, pushes against the diaphragm. This makes the resistance change because of something called the piezoresistive effect. So, a voltage difference pops up. Then, this signal gets boosted and changed into regular outputs, either analog or digital.

Benefits of Using Diaphragm Seal Pressure Transmitter in Automation Systems

Diaphragm pressure sensors have lots of perks that make them a must-have in automation systems. They measure pressure with great care. This helps keep processes on track, cuts down on mistakes, and makes things run better. Plus, they’re good at blocking out electrical noise. That makes them perfect for places with lots of interference.

Another awesome thing is they can take high pressure and bumps without breaking. They don’t shift much when temperatures change. Also, they stay steady for a long time. This makes them great for jobs that need constant checking. Their small size means they fit easily into systems already in place.

Wepower Electronic has professional technology and equipment, and the Diaphragm Pressure Sensors they produce will definitely give you a great value for money.

Applications of Diaphragm Seal Pressure Transmitters

Monitoring Fluid Levels in Industrial Processes

Pressure level transmitters are key for keeping an eye on fluid levels in all sorts of industrial tasks. They use a diaphragm seal filled with a special liquid to keep the sensor safe from the stuff it’s measuring. This setup lets them measure pressure accurately, even with harsh or gooey materials.

Ensuring Accuracy in High-Pressure Environments

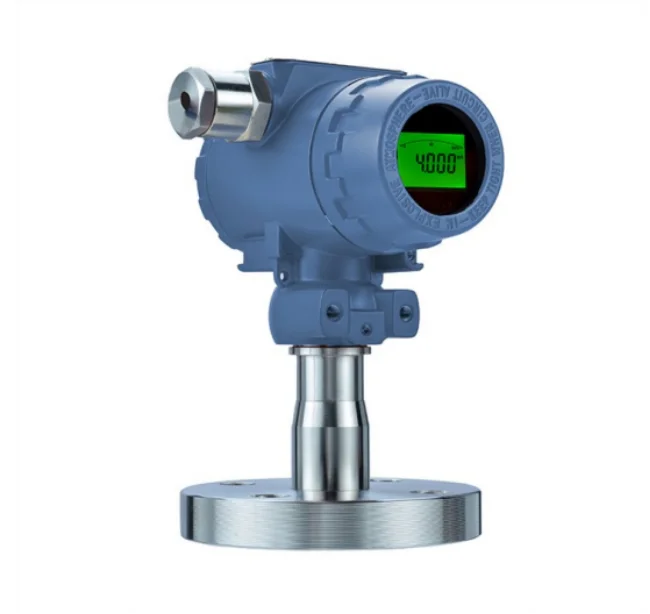

In places with really high pressure, like petrochemical plants or power stations, diaphragm seal pressure transmitters do an amazing job. They stay accurate even in tough conditions. Take the 3051TG diaphragm pressure transmitter, for example. It’s made for flange mounting and gives better performance with higher precision. Its strong design means it works well even at pressures over 20 MPa.

Protecting Sensitive Parts from Corrosive Media

One of the best things about diaphragm seal pressure transmitters is how they protect delicate parts from harmful stuff. They use materials like stainless steel 316L or Hastelloy C for the diaphragm. Special liquids like silicone oil or fluorine oil help them stand up to strong chemicals without getting damaged.

Role of Diaphragm Pressure Transducers in Process Control

Enhancing Precision in Chemical Processing Plants

Diaphragm pressure transducers are super important for keeping things exact in chemical plants. They give real-time info on pressure changes. This lets workers adjust processes to get the best results. For example, the 3051series model has a two-year stability of 0.15%. That means it stays reliable for a long time. This kind of dependability is key for making high-quality products and cutting down on waste.

Supporting Efficient Workflow in Oil and Gas Industries

In the oil and gas world, diaphragm pressure transducers help things run smoothly. They keep track of pressures during digging, moving, and refining oil. They can handle extreme heat and pressure, which makes them vital for safety and efficiency.

For instance, diaphragm remote seal pressure transmitters with capillary connections can deal with thick stuff like crude oil. They stay accurate even at temperatures up to 280°C.

Application in Food and Beverage Manufacturing

The food and beverage industry loves diaphragm pressure transducers. Their clean design fits strict health rules. Transducers with Tri-Clamp connections or union screws are easy to clean, so they don’t cause contamination.

Plus, these devices can use liquids safe for food. This makes sure they follow health rules while giving exact measurements for quality control.

Frequently Asked Questions

How do diaphragm pressure sensors enhance system reliability?

Diaphragm pressure sensors make systems more reliable with their strong design and exact measurements. They block out electrical noise well, don’t shift much with temperature, and stay steady in different conditions.

What materials are commonly used for diaphragms in these sensors?

Common materials are stainless steel 316L for regular use and Hastelloy C for harsh places. Special options like PTFE-coated tantalum are available for unique jobs.

Can these sensors operate under extreme temperatures?

Yes, many models are made for extreme heat. For example, the 3051RD series works at temperatures up to 280°C. This makes it great for tough industrial settings.

What role does smart technology play in modern diaphragm pressure sensors?

Smart technology helps with real-time monitoring, diagnostics, and predictive maintenance. Tools like digital communication (e.g., HART Protocol) and automatic tweaks make sensors more efficient.

Where can I find customized solutions for my specific needs?

Wepower Electronic offers custom solutions for unique industrial needs. Based in Yantai since 2003, they provide 24/7 technical support with their wide range of products.
