80G radar level meter with purge

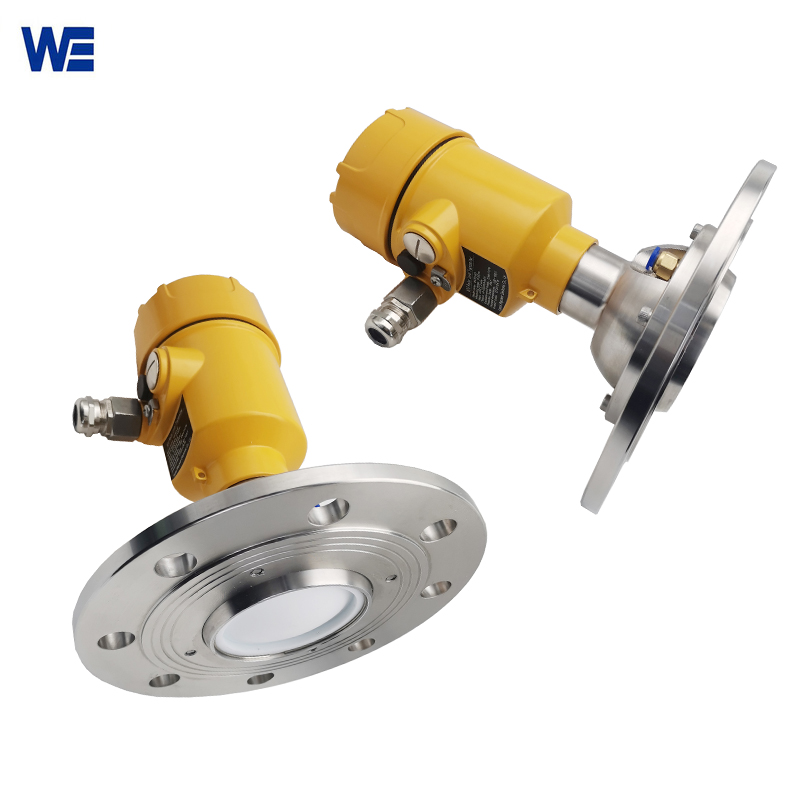

non contacting 80G radar level meter for storage

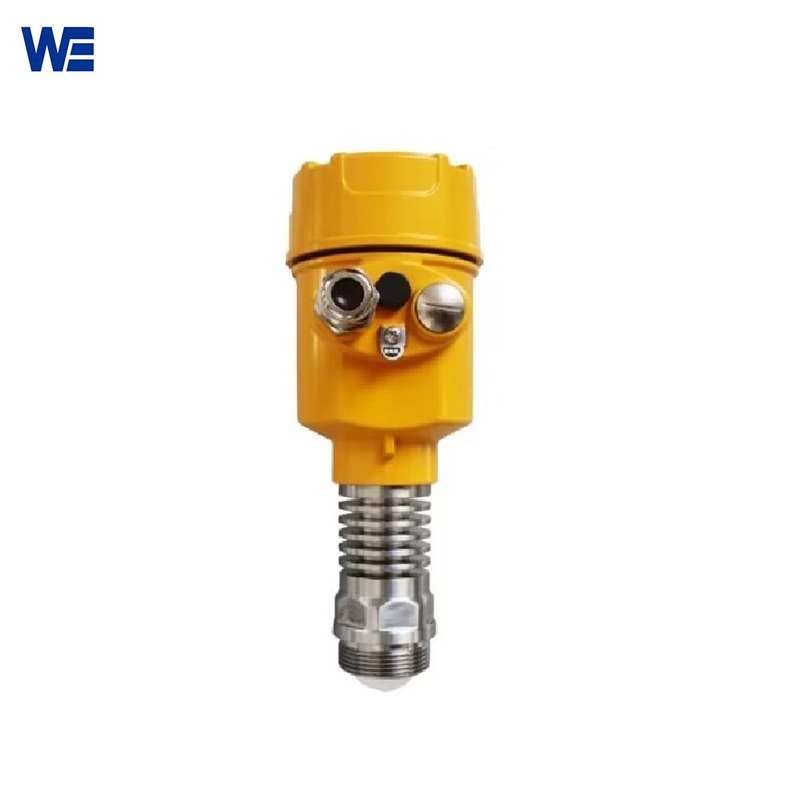

radar level meter with thread connection
80G radar level meter with purge for powder

80G Radar Bitumen Level Sensor

80G radar bitumen level sensors are an essential tool for the oil and gas industry. They are highly accurate and reliable, the accuracy can reach ±2-3mm, providing accurate measurements and data to ensure optimal performance and safety in the handling and storage of bitumen, not only bitumen, but also other viscous solid can be measured and stored, like tar and molasses. Get in touch with us soon for more information !

Category: 80G Radar Level Meter
Share
  • Description

product overview-wepower electronic

80G radar bitumen level sensors are an essential tool for the oil and gas industry. They are highly accurate and reliable, the accuracy can reach ±2-3mm, providing accurate measurements and data to ensure optimal performance and safety in the handling and storage of bitumen, not only bitumen, but also other viscous solid can be measured and stored, like tar and molasses. WERD 80g radar level sensors are also capable of measuring high temperature solid such as cement, ceramics and metals at temperature up to 200℃.

The 80G radar bitumen level sensor offers an unparalleled level of precision, allowing for safe and more efficient operations in the handling and storage of high viscosity, high temperature solid. They are designed to withstand the harsh conditions of these environment, and provide accurate readings even in challenging weather conditions. One of the most significant benefits of using 80G radar bitumen level indicators is their ease of installation and use. These systems do not require specialized training or extensive training, and they can be easily integrated into existing infrastructure and plant automation systems.

 In addition to their precision and ease of use. 80G radar level transmitters are also highly durable and require minimal maintenance. They are designed to withstand the rigors of industrial environment, and are built to last, ensuring long-term reliability and performance.

product details of radar level meter80G radar level meter with purge produced by WEpower80G radar level meter with purgeparameters of radar level meter

Name 80G radar bitumen level sensor
Model WERD- 92
Medium Solid, Solid with dust, Powder
Antenna Type PTFE; Lens(76mm)
Measure Range 0-150m
Process Universal flange with purging
Accuracy ±2mm
Response time <0.6s ( Due To Setting)
Display LCD display
Beam angle 3°
Microwave frequency 76-81 GHz
Material Shell: aluminum, process connection: 304 stainless steel,
Pressure 0.1- 2MPa
Storage temperature -40~+120℃
Protection class IP68
Warranty 12 months

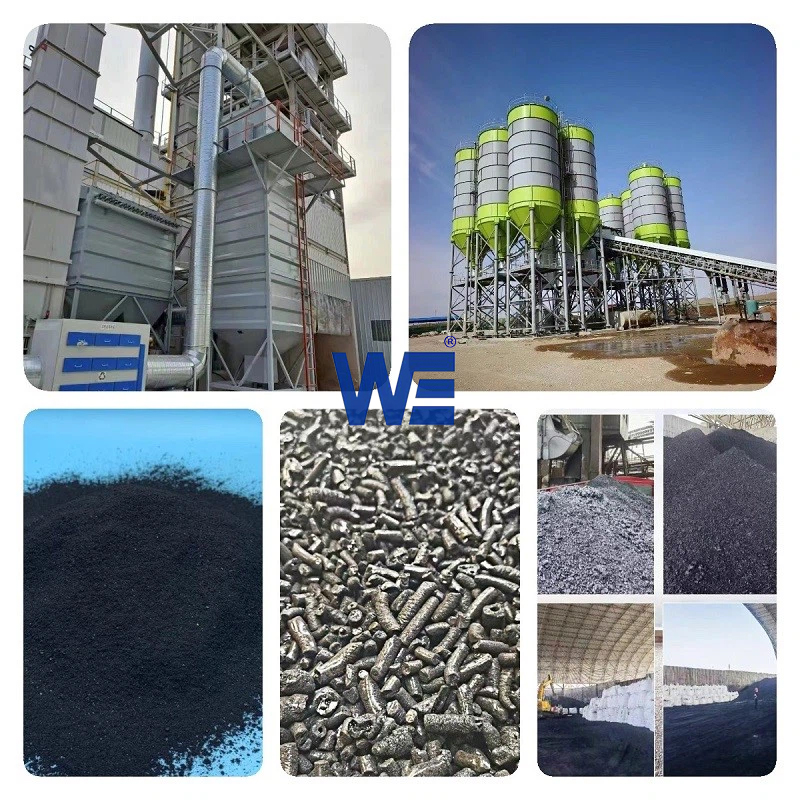

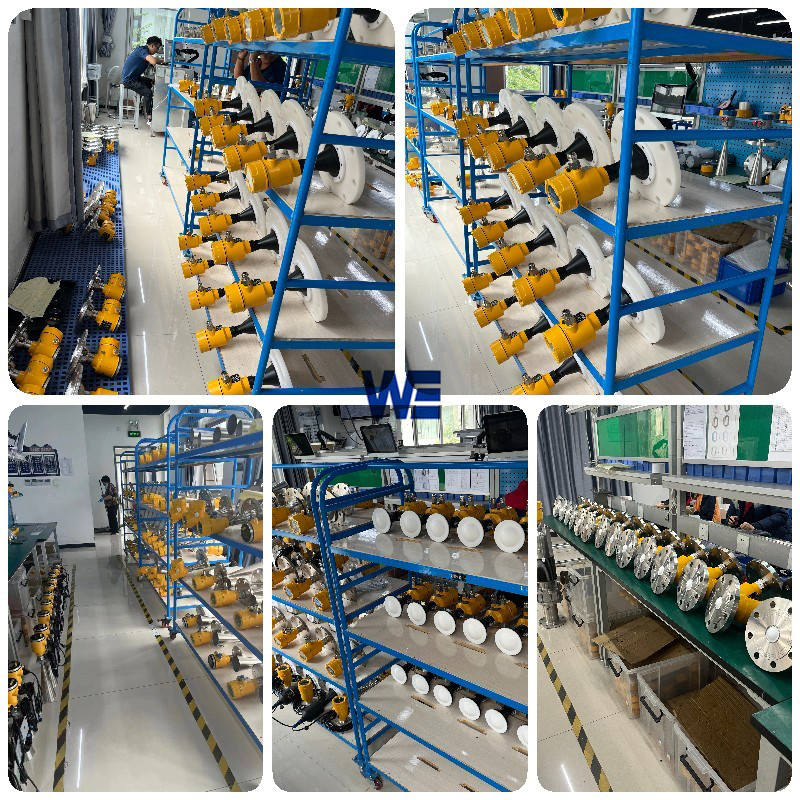

installation diagram of radar level meterNotes on threaded and flanged connectionsInstallation case of WEpower electronic80G radar level meter can measure bitumenWEpower's radar level meter installation casesworkshop of WEpower electronicFinished product display in WEpower's workshopworkshop of WEpower electroniclevel measuring instrument - wepower
