80G Radar Level Transmitter
Using 80GHz FMCW (Frequency Modulated Continuous Wave) radar technology, this 80G radar level transmitter delivers millimeter-precision non-contact level measurement across demanding industrial environments. More information, please contact us!
What Is The Principle Of Wepower 80G Radar Level Transmitter?

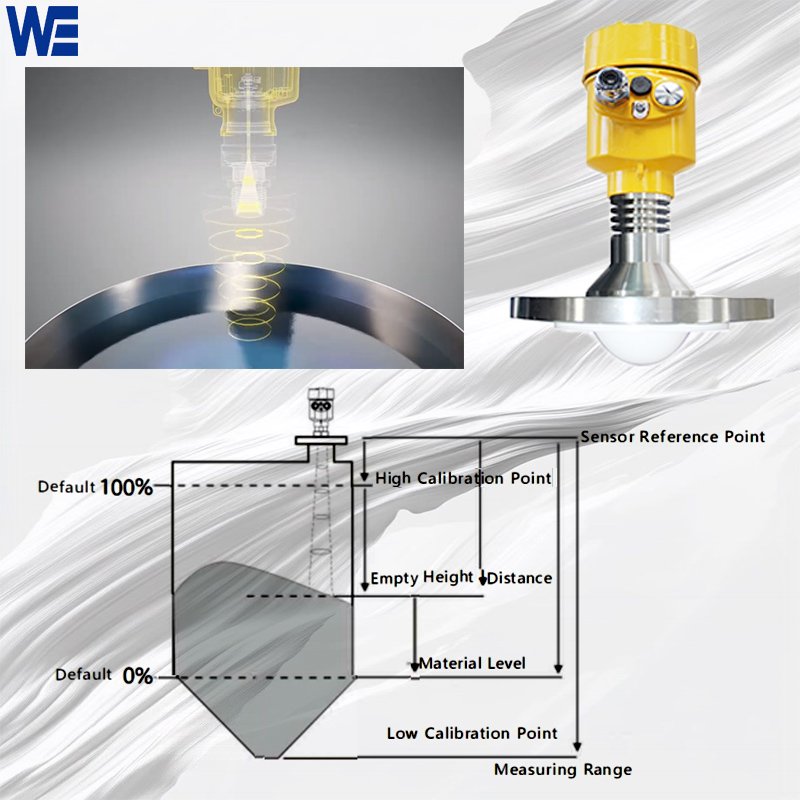

Wepower 80G radar level transmitter’s principle is that: the radar of this transmitter will emit electromagnetic waves on the top of the container, and when the wave encounters the measuring medium, waves will return and then be received by the radar. According to the frequency difference is proportional to the distance, so the medium’s height can be calculated.
What are the advantages of Wepower 80G radar level transmitter?
- High precision and high reliabilityï¼›
- The equipment is simple, easy to use and highly portableï¼›
- Cannot be affected by the characteristics of the mediumï¼›
- The influences of high temperature, high pressure, scaling and condensation degree can be ignoredï¼›
- Strong corrosion resistanceï¼›
- non-contact measurement.
| Name | 80G Radar Level Transmitter |
| Medium | Powder/solid/dust |
| Antenna Type | PTFEÂ / PEEK / PE; Lens(42/46/76mm) |
| Measure Range | 0-150m |
| Mounting | Flange / thread / Gantry frame |
| Accuracy | ±2mm / ±5mm |
| Response time | 0.4-0.6s |
| Display | LCD display |
| Beam angle |  3° / 8°/6° |
| Microwave frequency | 76-81 GHz |
| Output signal * | 4-20mA +HART / Others |
| Power supply * | Two wire(DC 24V)
Four wire(AC 220V) Six wire(DC 12-24V) |
| Material | Outer cover : aluminum
Process Connection: SS316/304; PTFE |
| Pressure | -0.1~2.5MPa |
| Storage temperature | -40~+120℃ |
| Protection class | IP67 |
| Warranty | about 365 days |
