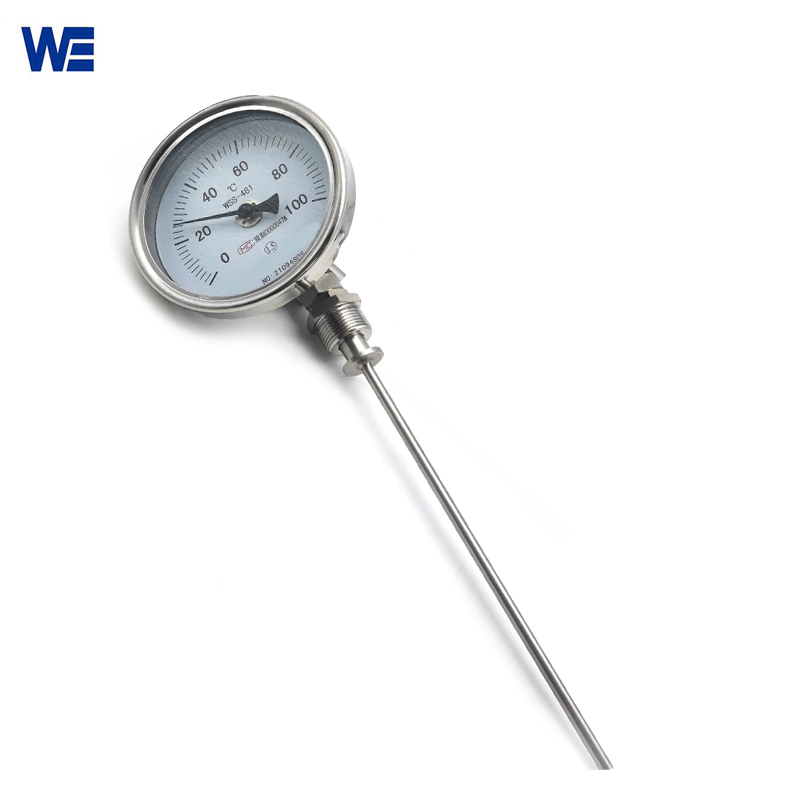

Bimetal dial thermometer produced by Wepower electronic

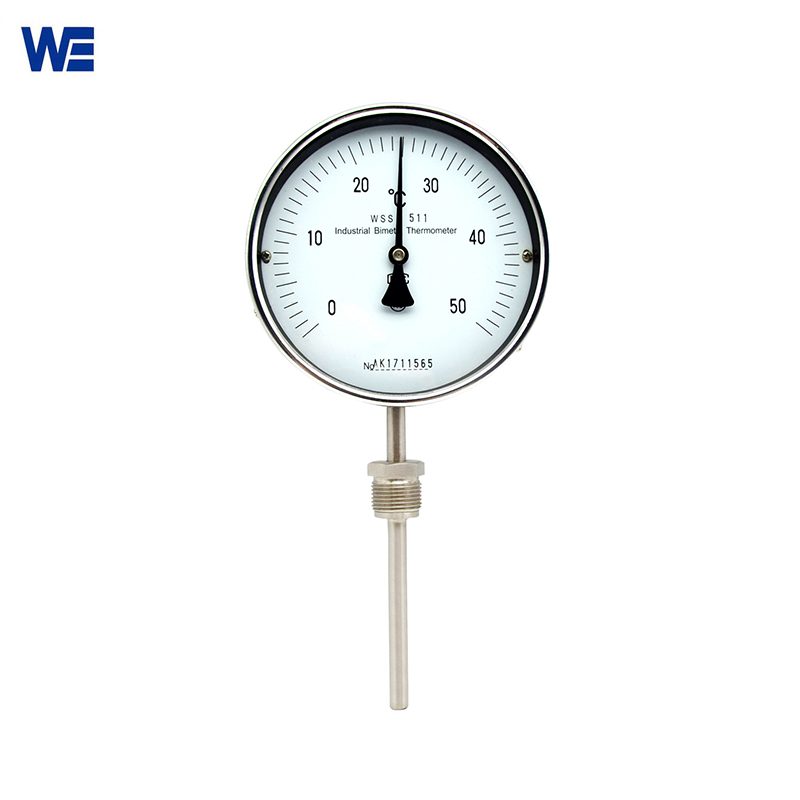

Wepower electronic-Bimetal dial thermometer
Bimetallic thermometer thermometers-Wepower electronic

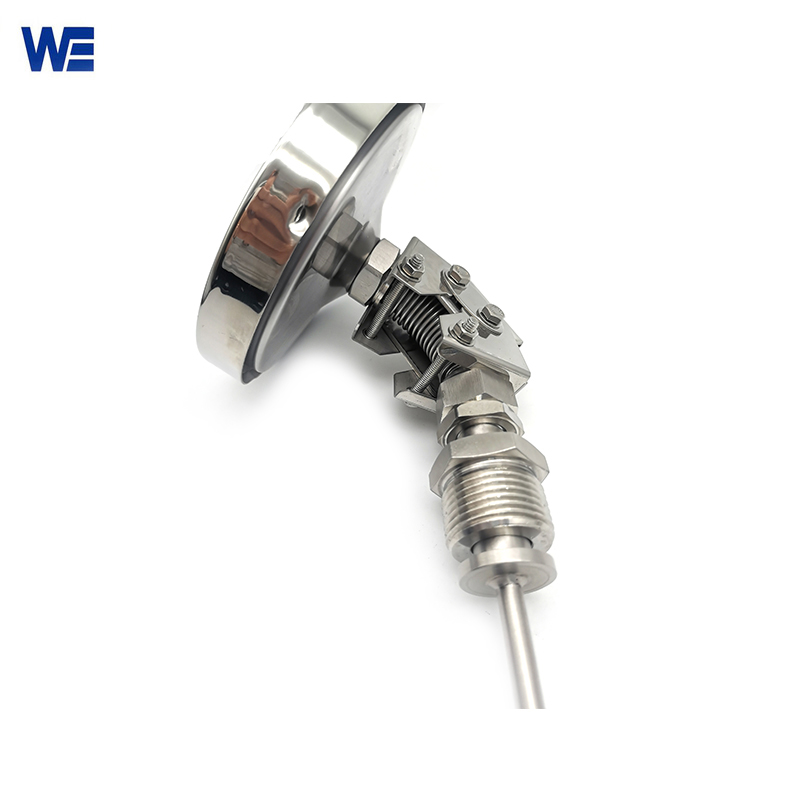

Bimetallic gauge Digital thermometer LCD display-all direction

Bimetallic Gauge

Bimetallic gauge can directly measure the temperature of liquid, vapor and gas medium and solid surface in the range of -40~+600℃ in various production processes. It is an ideal choice in the process industries.

Category: Industrial Thermometer
Share
  • Description

product overview

Ideal Choice:

In a variety of production processes,  Bimetallic Gauge can directly detect the temperature of liquid, vapor, and gas mediums as well as solid surfaces in the range of -40°C to 600°C. The bimetallic thermal resistance (thermocouple) gauge satisfies both on-site temperature monitoring requirements and long-distance transmission.

Bimetal Gauges are known for their extended lifespan, linear scale, high sensitivity, and tiny temperature probe. Shock resistance, corrosion resistance, high-power switch signal,  remote transmission of resistance signal (PT100)/thermocouple or 4-20mA signal.

Use & Maintenance Of Bimetallic Gauge:

▲Protective tubes should not be bent or deformed when industrial bimetallic gauges are being stored or installed. It is highly prohibited to twist the thermometers’ housing during installation.

▲Bimetal thermometers should work normally within an ambient temperature of -30℃~80℃.

▲The bimetallic gauge’s temperature should fall between 1/2 and 3/4 of the scale range.

▲To guarantee measurement accuracy, the immersed length is larger than 100 mm when the immersion length of the 0–50°C range is greater than 150 mm.

▲Electric contact thermometers are not appropriate for use in the control circuit in situations with significant working vibrations, and different kinds of bimetal thermometers are not appropriate for determining the temperature of the medium in an open container.

▲The thermometer should be inspected regularly under normal use, every six months is appropriate.

Parameters:

Product Name  Bimetallic temperature gauge
Direction Axial/Radial/ Universal
Temperature Range -80~500 ℃.
Material stainless steel 304/316
Accuracy 1.5; basic error limited to 1.5% of range
Diameter of Dial Indicator φ60, φ100, φ150mm.
Stern Tube Length 100-2000mm
Stern Tube Diameter φ6, φ10(when tube length is 100-1250mm)
φ12(when tube length is 1250-2000mm)
Thread : M16X1.5; M27X2; G1/2; G3/4.
IP Grade IP68
Working Pressure 6.4Mpa
RTD PT100;Cu50
Thermocouple E;K

detailsWepower electronic-bimetal temperature thermometer-thermometerBimetallic thermometer thermometers-Wepower electronicBimetal thermometer series- Stainless steel bimetal thermometerWorkshop of Wepower electronic-Bimetal type thermometerRF admittance level sensor-application areaCertificate- Wepower Electronic
