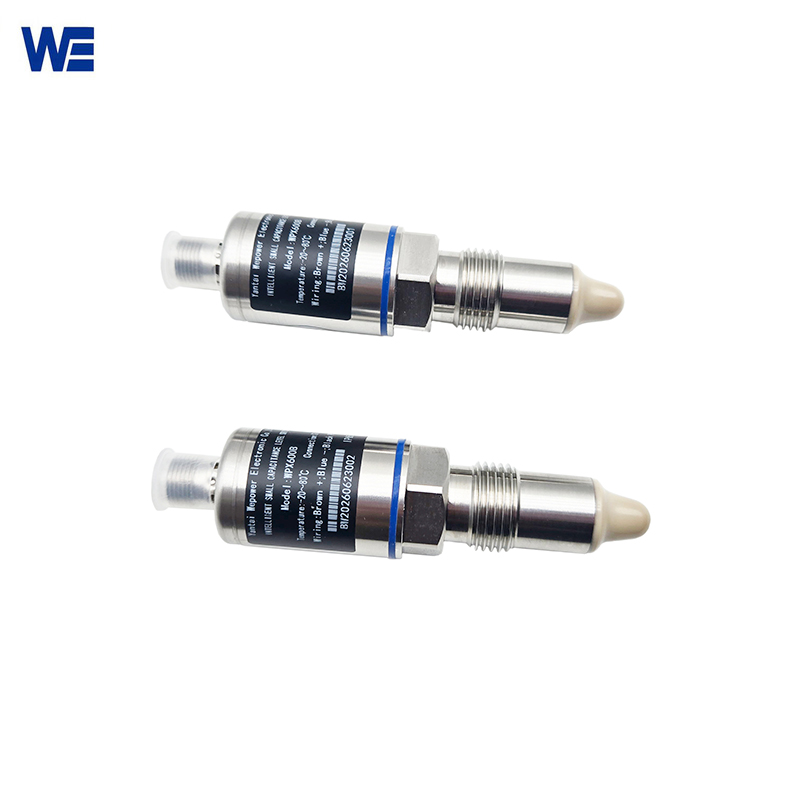

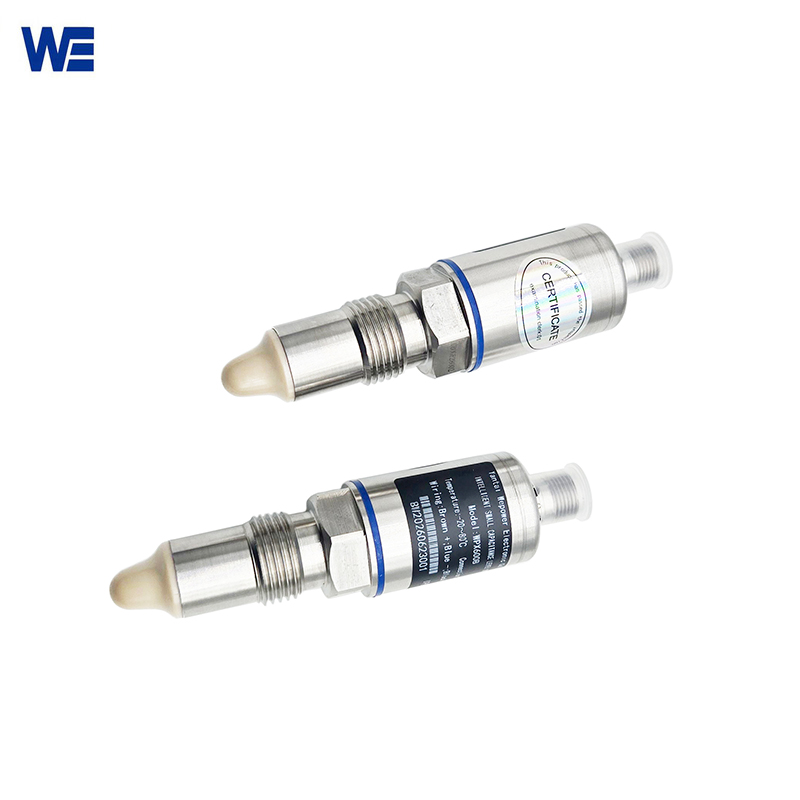

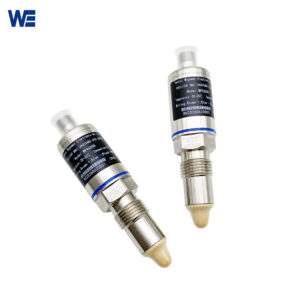

Capacitive Level Switch For Viscous Liquids

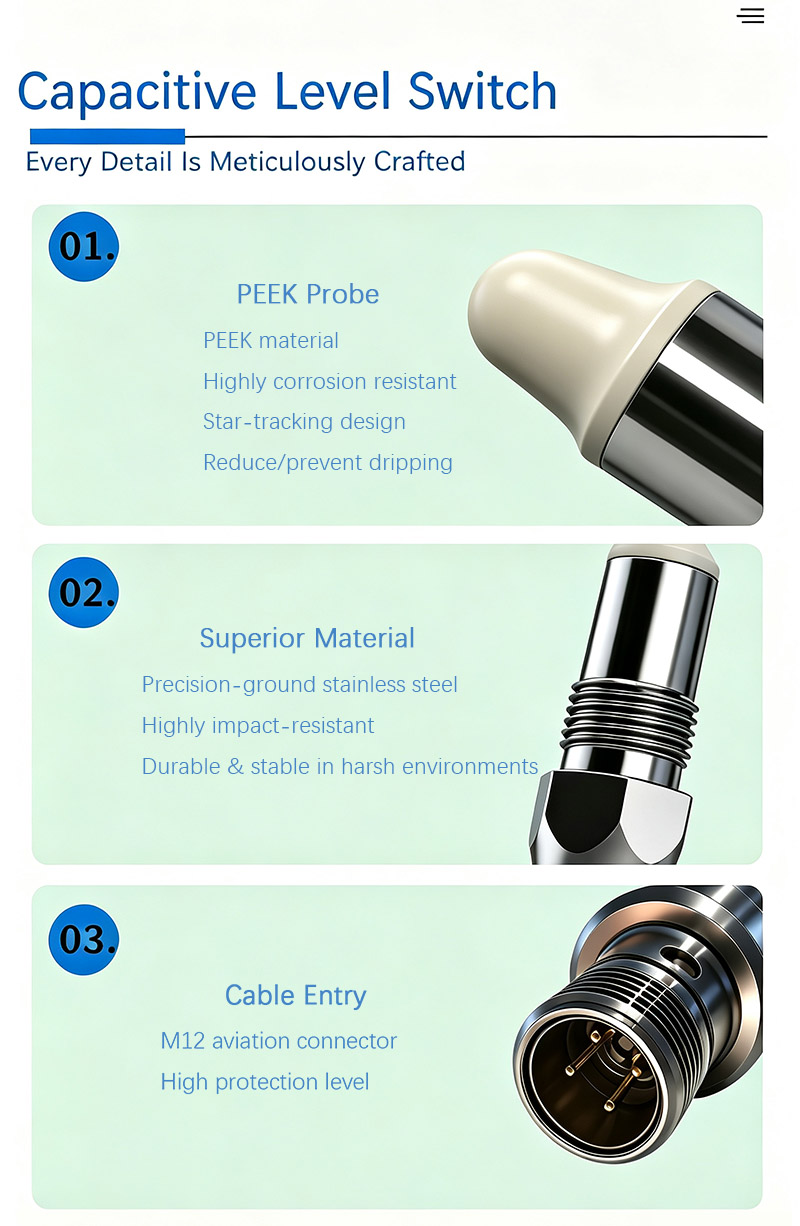

The integrated capacitive level switch probe features a compact structure, is small and exquisite, and can be installed in narrow cavities and with small threaded interfaces; the probe has a smooth tapered PEEK end which is good performance for the viscous liquids.
Which Level Switch Is Suitable For High-Viscosity Liquids?
Wepower’s Capacitive Level Switch -WPX600B has been structurally and sensor-adapted for viscous media, making it ideal for level limit detection of high-viscosity liquids such as syrups, slurries, viscous oils, and gel-like materials.
Feature:
- The probe uses a smooth, tapered, insulated design with a flat, groove-free surface, preventing material buildup, accumulation, and clumping in viscous media. Even with high viscosity and poor flowability, small amounts of material adhering to the probe surface will not cause false signal triggering.
- Based on capacitive sensing, WPX600 series capacitive level switch has no vibrating mechanical parts and is unaffected by damping caused by viscous media.
- For operating conditions prone to scaling and containing viscous impurities, cleaning and maintenance are convenient, eliminating the need for frequent disassembly and repair.
Parameters:
| Product name | Capacitive Level Switch |
| Model | WPX600B |
| Medium | Water, water-based media, oil, oil-based media, coolants and lubricants, powders, etc. |
| Principle | Frequency difference pnnapi |
| Output | PNP/PNP |
| Operating temperature | -40～120℃ |
| Status indicator | LED Red LED Green |
| Process connection | G1/2” F thread |
| Wetted material | PEEK, SS316 |
| Housing material | SS304 |
| Cable entry | M20*1.5 |
| Power supply voltage | 18…30VDC |
| Wiring Protection | Reverse phase protection, overload protection, short circuit protection |
| Ptotection grade | IP67 |
| Current consumption | ≤35MA |
| Response time | ≤1MS |
| Vibration resistance | 10G/0…500HZ |
| Process pressure | -1…40Bar |
