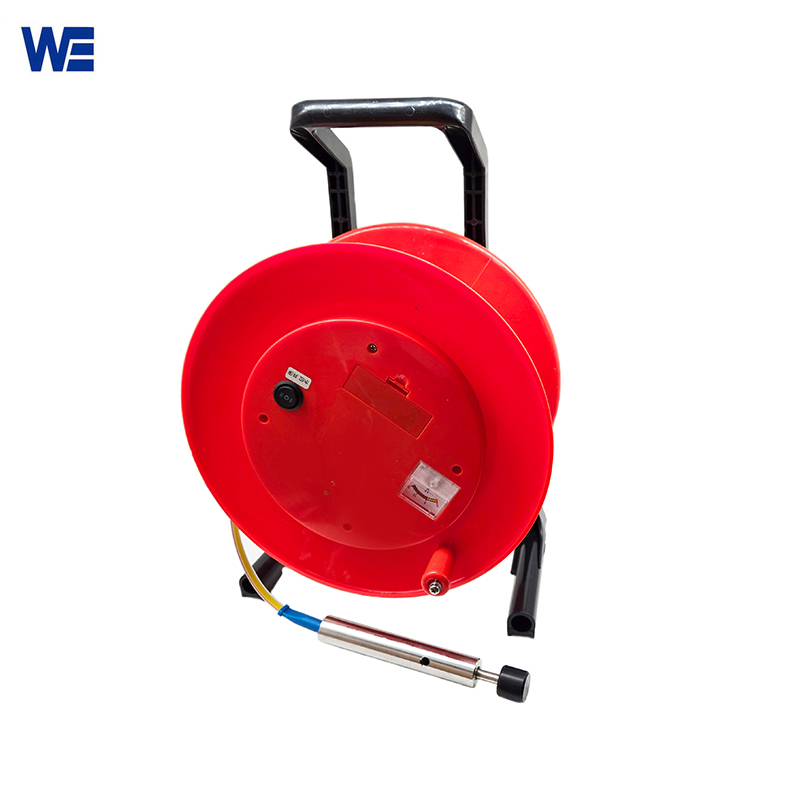

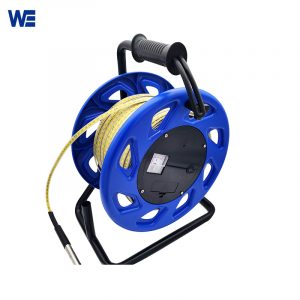

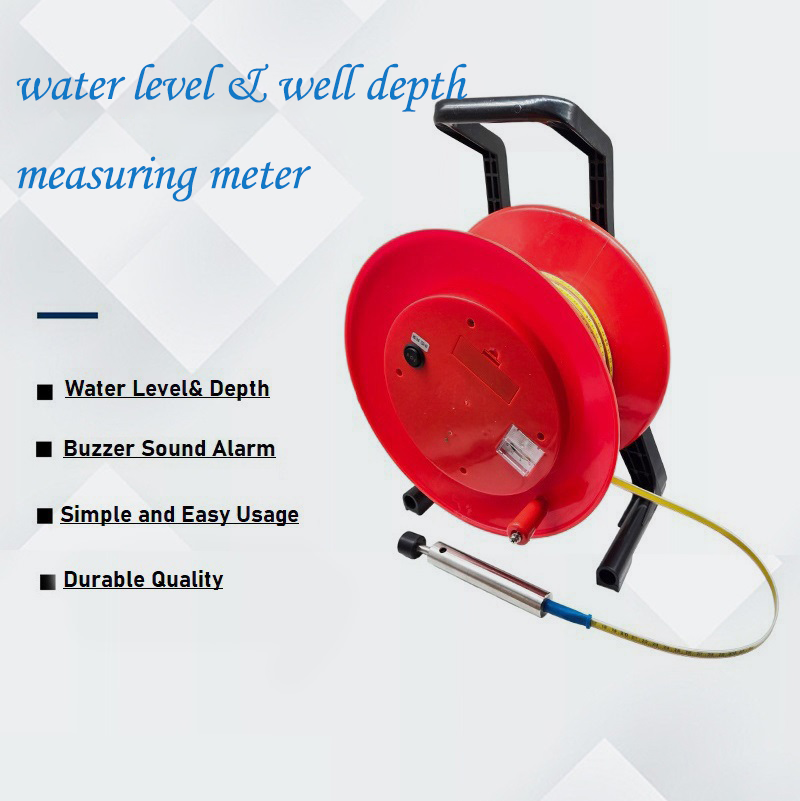

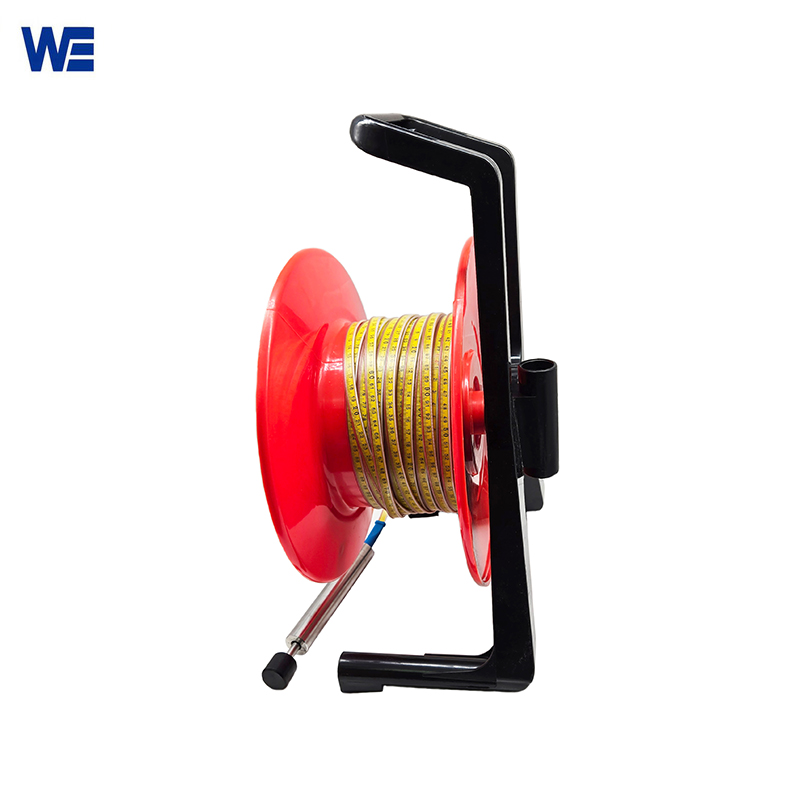

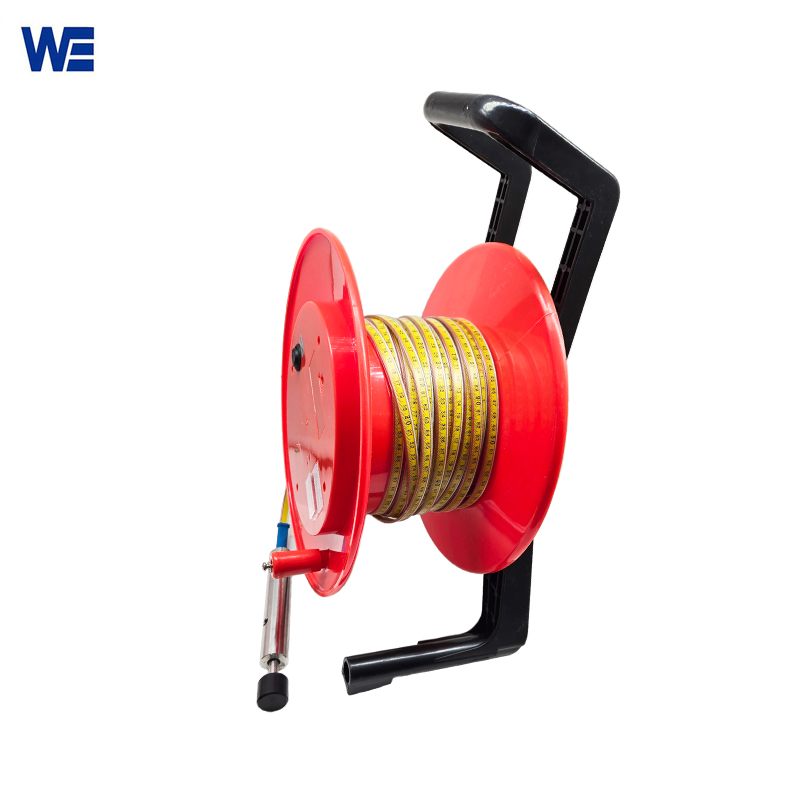

Depth Gauge With Double-duty Probe
Depth gauge with double-duty probe equipped with fixed stainless probe and steel tape is designed for measuring both water level and depth, which offer you greatly convenience. This device is of course suitable for outdoor industries in harsh environments, ensuring the high quality, durability and reliability.
Optional functions

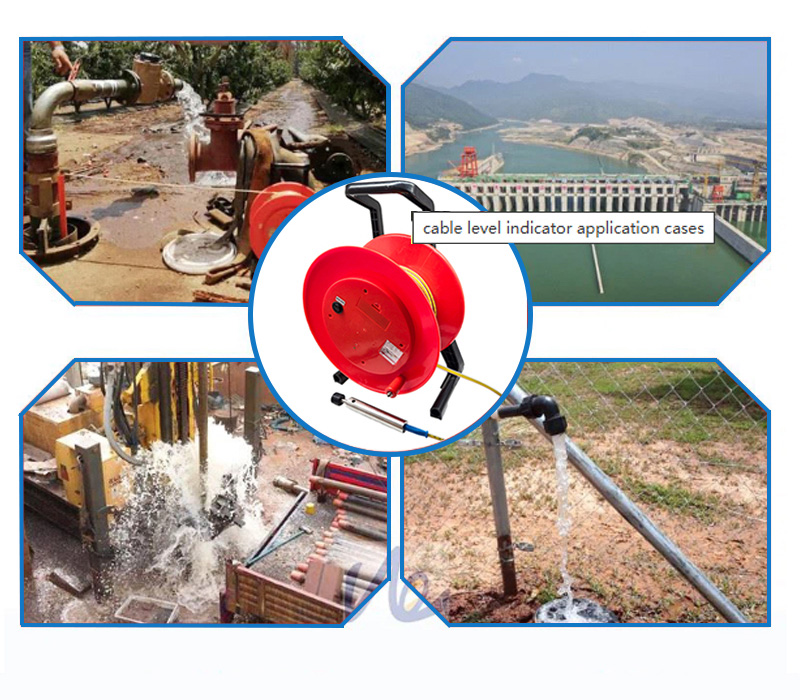

This depth gauge (water dip measuring gauge) equipped with an double-duty weighted probe(25*170mm) and tape(30-600m), which is designed for precise measurement and well depth indication. Its function includes measuring both level and depth of water in like wells, boreholes and other similar environment. With this depth reader gauge you can read the value exactly and accurately through the combination of cabel ruler and flexible sensor. Its robust design ensures you will be satisfied with the use, making it highly suitable for complicated and field operations.

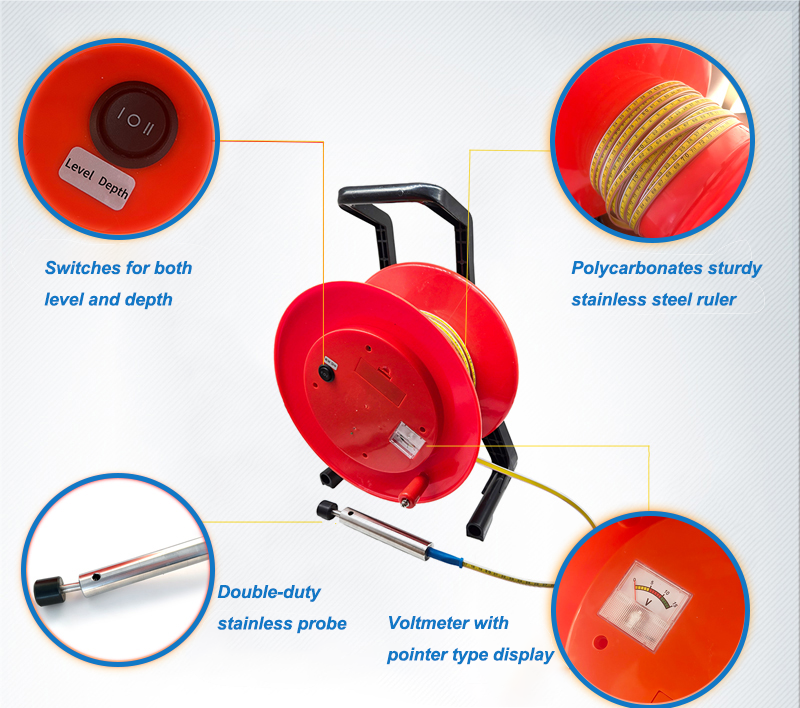

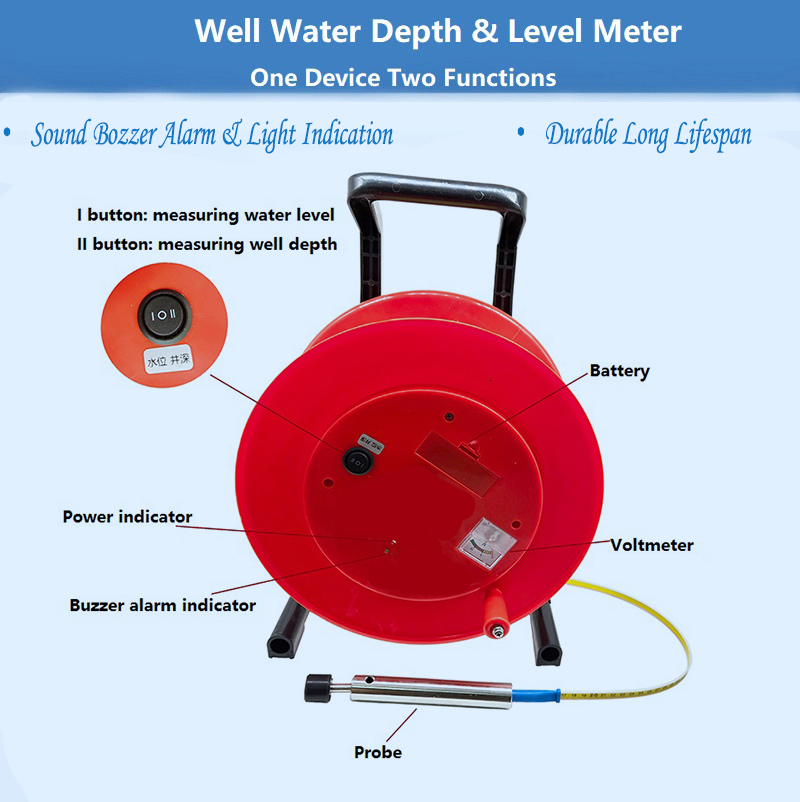

With two buttons, not only can it indicate the depth of wells, but also water level. While water level, choose button “Ⅰ”, and while well depth, switch to button “Ⅱ”.
What are the advantages of this well depth gauge with double-duty probe？
- Convenience

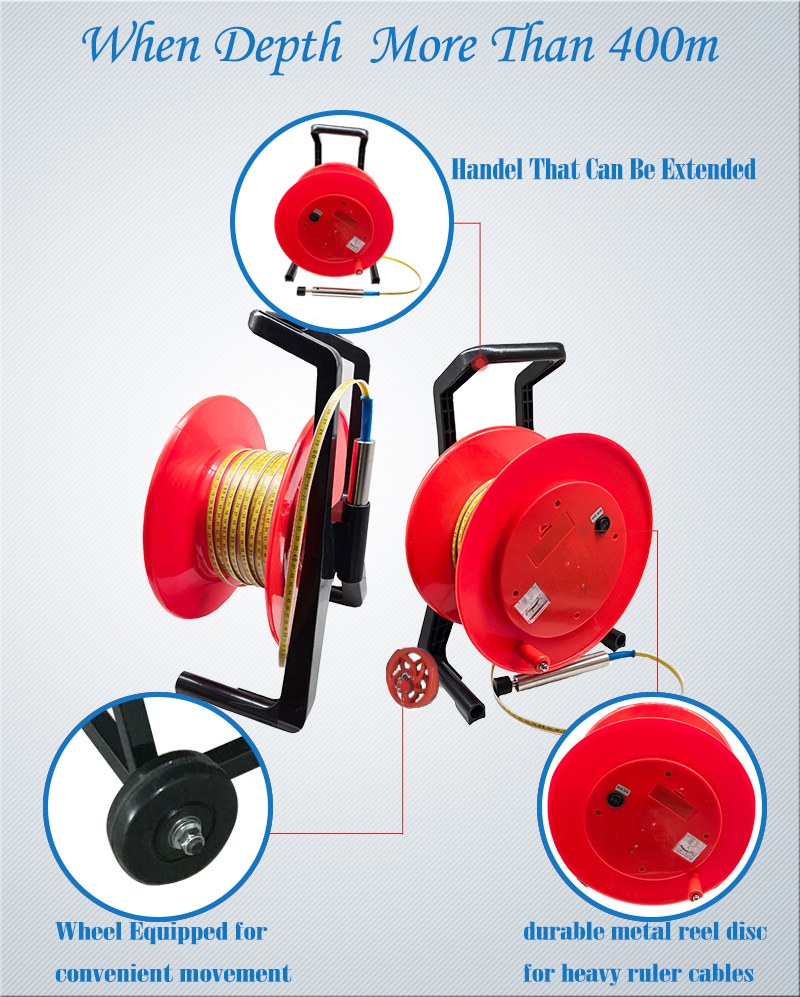

When the cable range you need is more than 400m, this level and depth gauge’s weight will grow up. So, we designed wheels for movement and extended handel for convenience.
- Easy to operate
This water level and depth measruing device require only 9V lithium battery to power. And when you need to use it, only need to put the probe into water, and the sensor’s buzzer will sound alarm to urge you while water fooding the hole of the probe, then you can read the precise value.
- Reliability
This cable ruler’s scale is reliable and has long lifespan, easy to read, ensuring a precise service. In addition, the stainless steel probe also fit harsh environments, becuase the material has the characteristic of heat-resistant and corrosion-resistant, can be used in pure water and brackish water.
| Product Name | Depth Gauge With Double-duty Probe |
| Measuring Range(m) | WEDL-10M,WEDL-20M,WEDL-30M,WEDL-50M,WEDL-100M,WEDL-150M,WEDL-200M,
WEDL-250M,WEDL-300M,WEDL-350M,WEDL-400M,WEDL-500M,WEDL-600M |
| Minimum Indication(mm) | 1mm |
| Repeat Indication(mm) | ±2.0 |
| Power Supply(V) | 9V lithium battery |
| Probe Dimension | 25mm*170mm |
| Material | 30-350m range: strong ABS reel disc and frame
≥400m range: strong ABS reel disc+ frame+wheel trolley for easy moving SS304 probe |
| Cable Material*Size | Steel ruler with PE coating; Width:10mm*Thickness 2mm |
| Ambient Temperature | -20~65℃, relative humidity ≤85%, no condensed water, no strong magnetic field interference |
| Indication Way | Indicator light, buzzer |
| Product Size | Length 46cm*Width 37cm*Height 28cm(150 meters and below); Length 46cm*Width 37cm*Height 30cm(200m,300m); Length 51cm*Width 48cm*Height 64cm(400m, 500m, 600m) |
| Weight | 5kg(50m)/9kg(300m)/30kg(500m) |
| Reel Disc Color | Orange |
