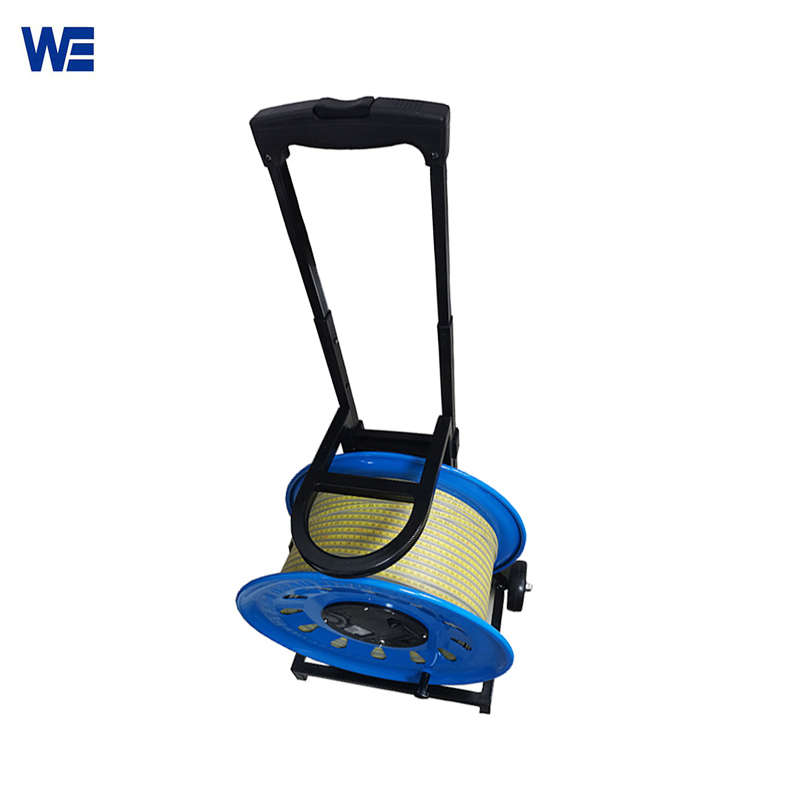

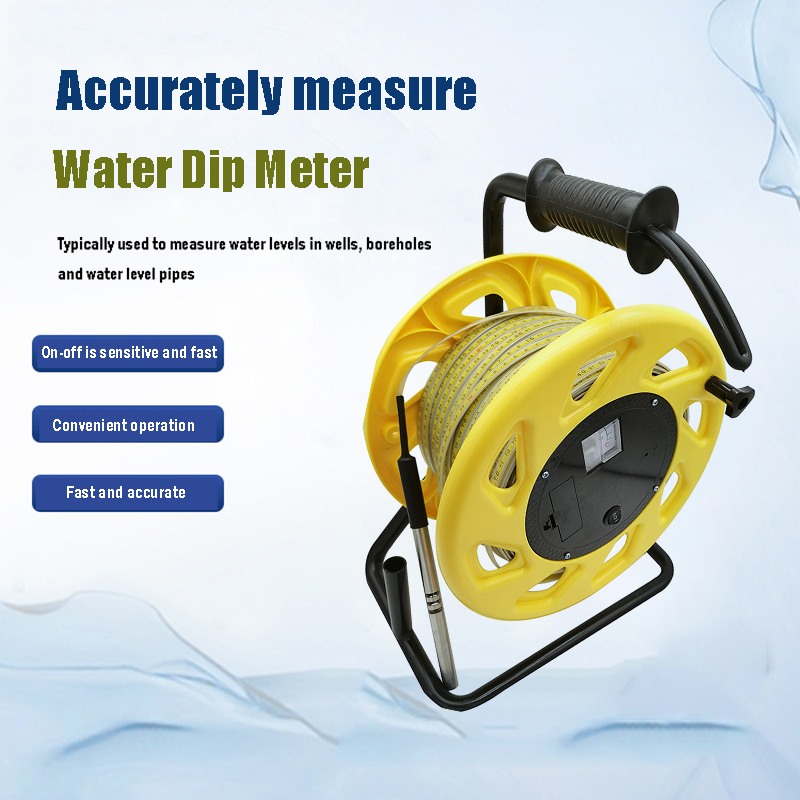

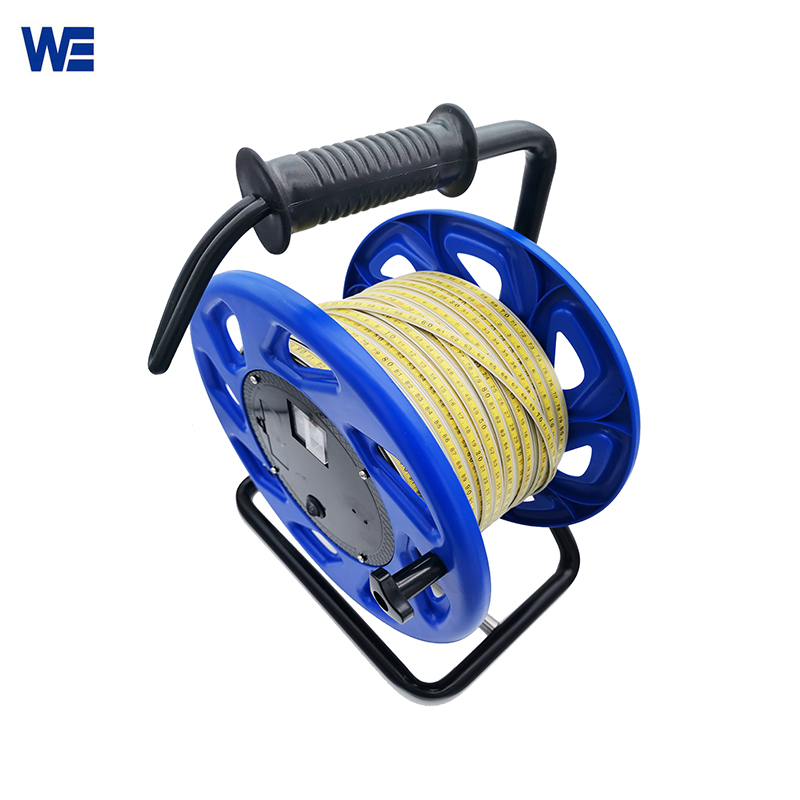

Water Well Depth Sensor
Water Well Depth Sensor is supplied on a sturdy winding reel complete with a brake and carrying handle.
Measuring Range Of Water Well Depth Sensor:
Water Well Depth Sensor with Laser Marked Tape for accurately measuring the depth of water in wells, boreholes, standpipes, and tanks. Measuring depth range optional as 30m, 50m, 100m, 150m, 200m, 250m, 300m, 350m, 400m, 450m. When depth more than 400m, the water well depth sensor comes with the moving wheels for easy carrying, and the pulling handle can be extended for moving around, the metal frame is steady to bear the long and heavy scale tapes.
Features Of Water Well Depth Sensor:
- Choice of highly accurate Polyethylene coated steel tape marked in engineering or metric increments
- Field serviceable 14mm diameter probe with stainless steel conductors for durability
- Adjustable sensitivity to prevent false triggering
- Audible and visible alarms activated when the probe makes contact with water
- Easily replaced 9 volt battery
| Product Name | Water Well Depth Sensor |
| Measure Range (m) | WCL-30m, WCL-50m, WCL1-00m, WCL-150m, WCL-200m, WCL-250m, WCL-300m, WCL-350m, WCL-400m, WCL500m, etc. |
| Minimum Indication(mm) | 1 mm |
| Repeat Indication (mm) | ±2.0 |
| Power Supply(V) | 9V Lithium Battery |
| Probe Dimension | 14*220mm;(Dia16mm can be offered too) |
| Material | ● ABS Reel and handle, Metal frame (Range less than 350m )
● Metal reel, Metal Handle, Metal Frame (Range≥ 400m ) ● Metal reel, metal handle, Metal Frame with wheel trolley (Range=500m) |
| Cable Material /Size | Steel ruler with PE Coating; Width: 12mm * Thickness 2mm |
| Ambient Temperature | -20~65°C, relative humidity ≤90%, no condensed water, no strong magnetic field interference |
| Indication Way | Indicator Light, Buzzer when the probe makes contact with water |
| Product Size | Length 36cm * Width 26cm * Height 44cm |
| Weight | 5KGS (50m )/ 10KGS(300m) /23KGS(500m) |
| Reel Disc Color | Yellow / Blue |
