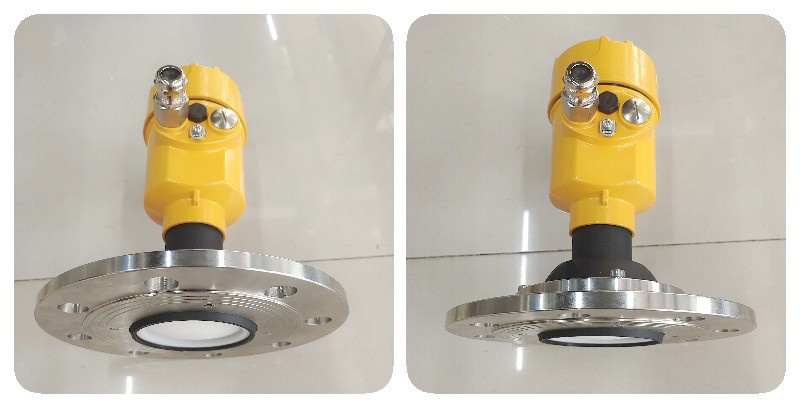

Economical 80GHz Tank Radar Level Transmitter
80GHz tank radar level transmitter is an upgrade radar level meter that has better high-frequency radar components which is less affected by liquid mixing, temperature changes, pressure changes etc.
Choosing the right radar tank radar level transmitter requires careful consideration of multiple factors, including frequency, accuracy, range, cost, and application requirements. This high quality Economical 80GHz Tank Radar Level Transmitters have minimum requirements for users, all products are perfectly calibrated before shipment. Economical 80G tank radar level transmitters are industrial-oriented radar level transmitters, that realize real-time fast and correct data display. Economical 80G tank radar level transmitter performs very well, it is very suitable for measuring granular matter and solid matter, and it is a good choice for level measurement in granaries.
Economical 80GHz Tank Radar Level Transmitter Features:
- Measuring powder/coal ash/lump substances
- Same function as other Wepower Electronic 80G models
- Â Using high-quality high-frequency radar
- Economical style saves money for customers
| Name | Economical 80GHz Tank Radar Level Transmitter |
| Model | WERD-92E |
| Medium | Solid/Solid with Dust |
| Antenna Type | PTFE; 76mm Lens |
| Measure Range | 0-120m |
| Mounting | Universal flange with purging |
| Accuracy | <2mm |
| Response time | 0.6s (due to parameter setting) |
| Display | LCD display |
| Beam angle | 3° |
| Microwave frequency | 76-81 GHz |
| Output signal * | 4-20mA +HART, RS485 MODBUS -RTU |
| Power supply * | DC 6-24V, AC 220V/50Hz |

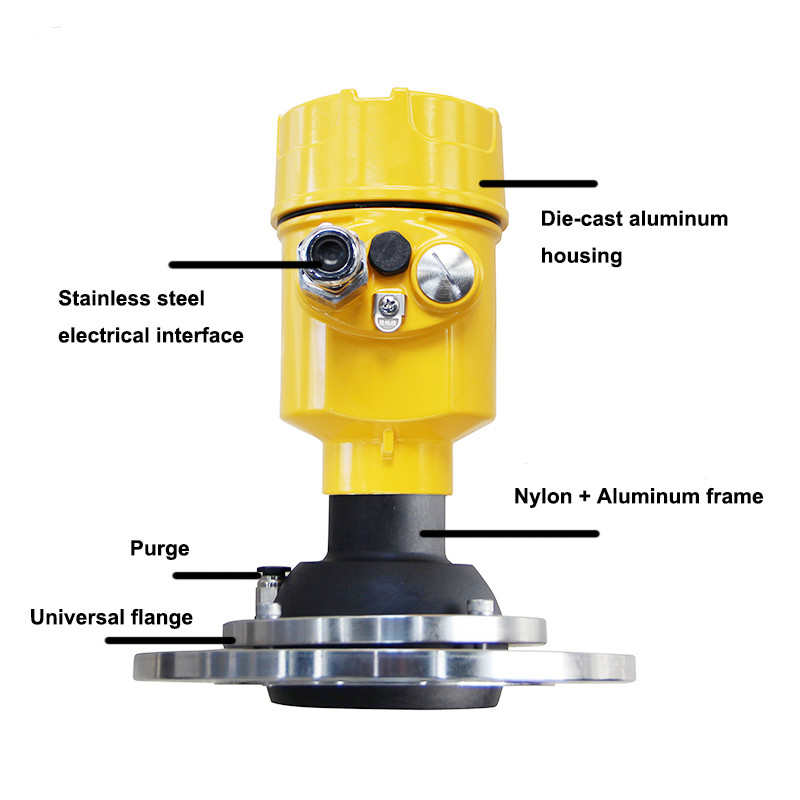

| Material | Shell: aluminum, process: 304 stainless steel |
| Pressure | -0.1 ~ 2MPa |
| Storage temperature | ( -40～120）℃ |
| Protection class | IP68 |
| Warranty | 12 months |
