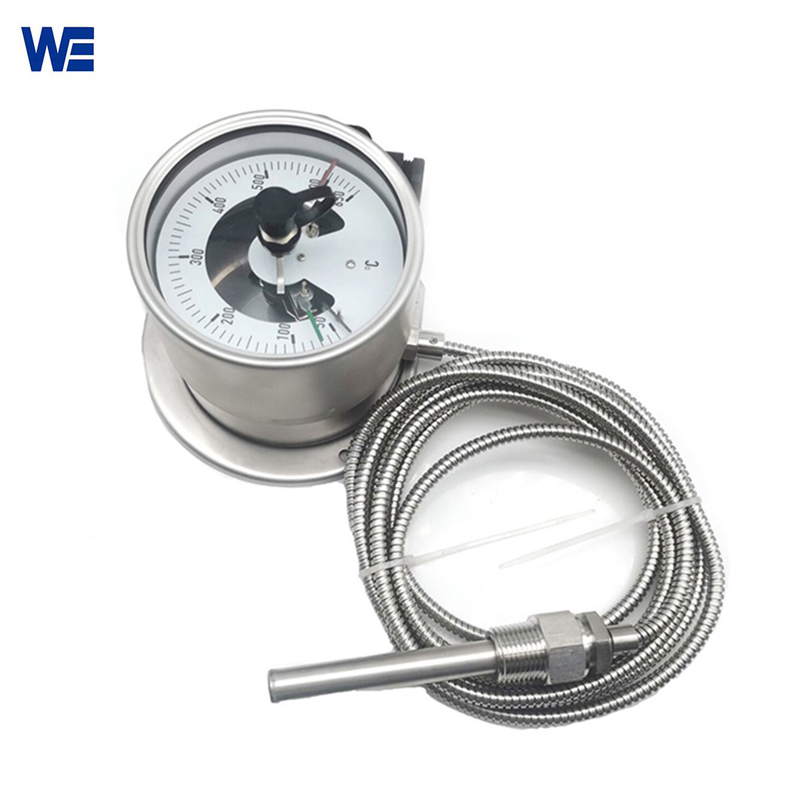

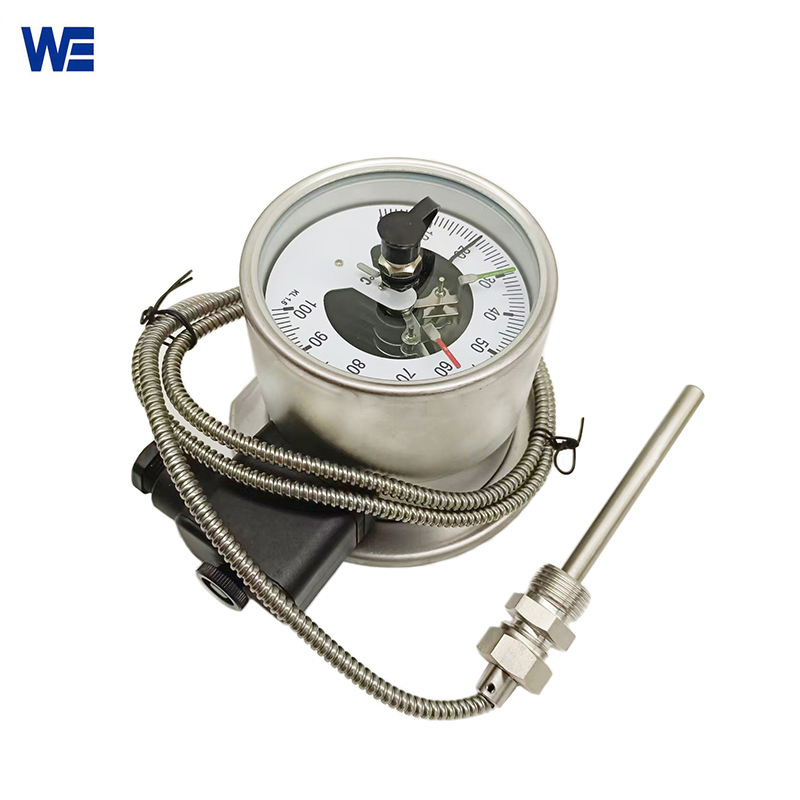

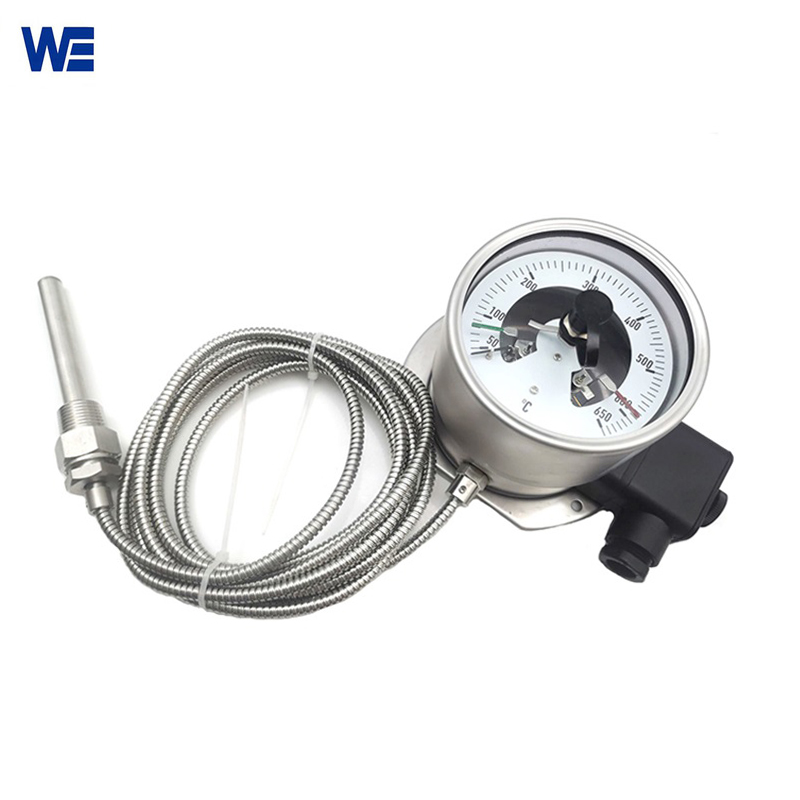

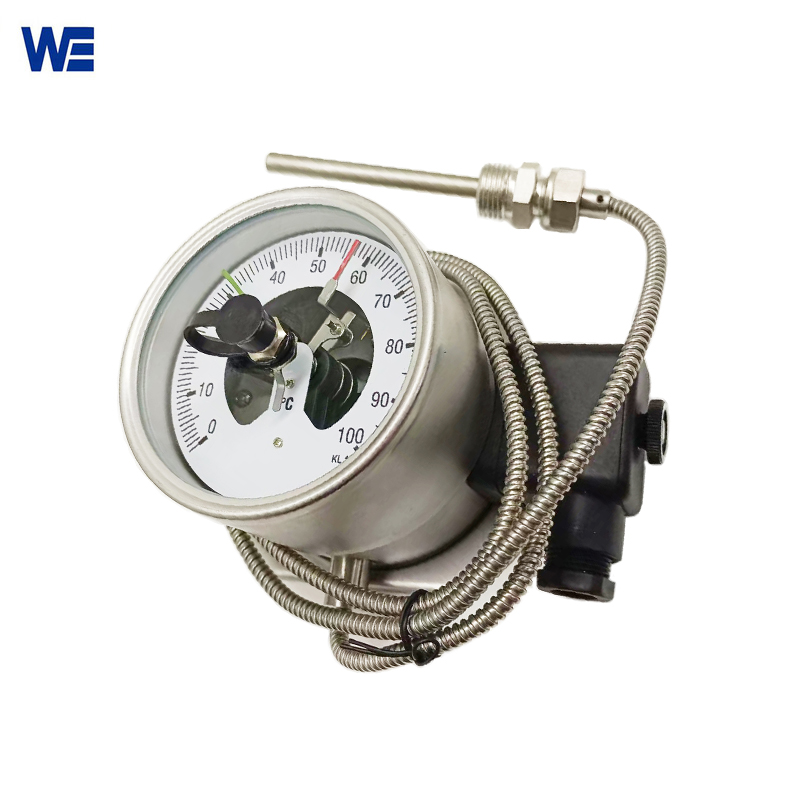

Electric Contact Capillary Thermometer
Electric contact capillary thermometer is suitable for measuring long-distance liquids or gases in the production process, the electric contact capillary thermometer is a pressure-type industrial temperature gauge that can emit electrical signals when the working temperature reaches and surpasses a predetermined value.
Working Principle Of Electric Contact Capillary Thermometer:
The Electric Contact Capillary Thermometer is a pressure type thermometer that uses temperature changes to drive electric contact changes. When it is connected to or disconnected from the upper and lower limit contacts, the relay in the circuit is activated, thereby automatically controlling and alarming.
Wepower Electronic Meets All Your Customization Needs:
The case, capillary, stem and process connection of the Electric Contact Capillary are made from stainless steel. In order to better serve various working conditions, we provide different insertion lengths and process connections.
Features:
- Universal application
- Case, stem and capillary made from stainless steel
- With automatic power cut-off and alarm function
- Various structural forms to meet different requirements
Parameters:
| Product Name | Electric Contact Capillary Thermometer |
| Temperature Range | -30…+60,0….100,0…120,0…160,0…200,0…300,
0…350,0…400,0..500,0…600 |
| Material | stainless steel 304/316 |
| Accuracy | 1.5% of range |

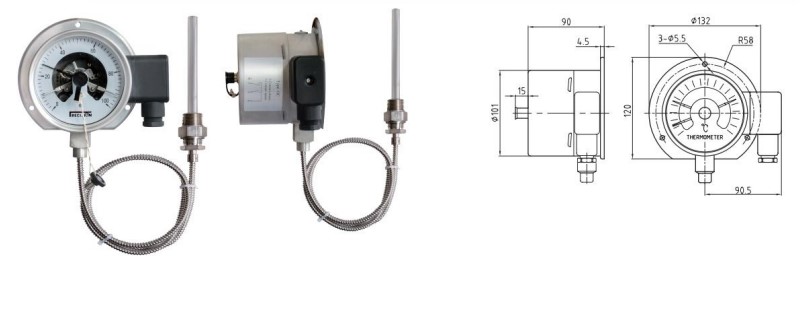

| Diameter of Dial Indicator | φ100mm;150mm;75mm;63mm |
| Capillary Material | SS304/SS316 |
| Probe Diameter | φ6, φ10, φ12 |
| Process connecting Method | Without fixed
Movable thread outer Movable thread inner Fixed thread Fixed flange Adjustable thread Adjustable flange |
| Thread | M16X1.5; M27X2; G1/2; G3/4,M33×2 |
| Direction | Axial/Radial |
| Contact Type(for electric contact type): | NO,NC,NONO,NCNC,NONC,NCNO,SPDT |
