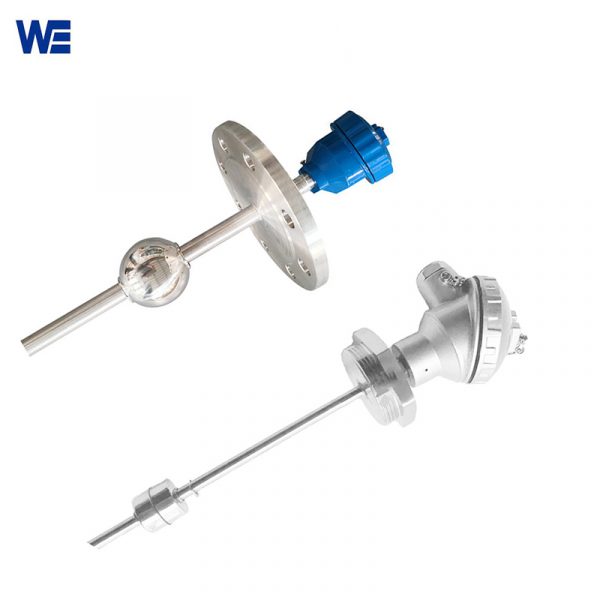

Hydraulic Tank Level Switch
Hydraulic tank level switch can also be called hydraulic oil tank level sensor. Wepower hydraulic tank level switch is a popular level controller and mostly used in oil level measuring and controlling fields.
Hydraulic Tank Level Switch, as the name suggests, is a measuring instrument for measuring hydraulic oil. Our hydraulic tank level switch uses the principle of buoyancy. Hydraulic tank level switch can be used to measure not only oil but also water, acid or alkaline substances.
When using the hydraulic tank level switch, it is necessary to measure the size of the caliber accurately in advance. The process connecting flanges of are generally well welded (DN80-DN150).
About Wepower Electronic:
Our company has been dedicated to producing and selling precision instruments for several years. Wepower Electronic was established in 2003, we have our own dedicated factory and production team. We hold ISO9001, CE, ROHS, SVHC, Explosion Proof, SIL and other testing certificates.
At present, our company provides a variety of hydraulic tank level switches, as well as ultrasonic level gauges, radar level gauges, etc. We always provide high quality products and friendly service.
| Measuring range | L≤6000mm |
| Specific gravity of medium | ≥0.8 |
| Container flange | DN50~DN150 |
| Pressure Level | 0.6~2.5MPa |
| Output signal | 4-20mA |
| Power supply | DC24V |
| Measurement accuracy | L=500~1000mm, ≤±1.5%FS; ﹥1000mm, ≤±1.0%FS |
| Load Resistance | 0~750Ω |
