Hygienic Magnetic Flow Meter
Hygienic magnetic flow meter is designed to meet the requirement of measuring conductive liquids’ flow according to the principle of electromagnetic induction. Every section of this sanitary device is suitable for medicine, food-processing, beverage, pharmaceutical and other hygienic industries. There is no need to worry its quality and safety.
What is the principle of hygienic magnetic flow meter?
Hygienic magnetic flow meter is designed according to the principle of electromagnetic induction, each parts meet hygienic standards.

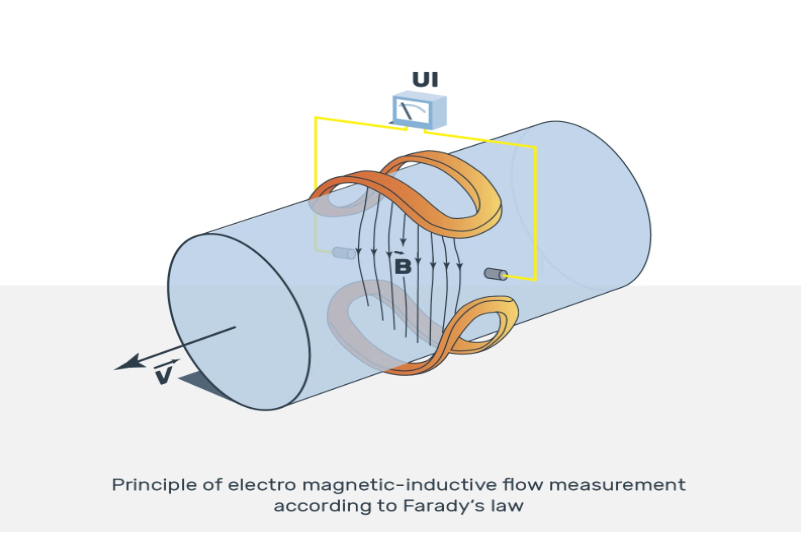

First of all, there are two excitation coil in the lining, creating a constant magnetic field, and another two electrode is installed in the lining. When the liquid is still, electrodes won’t sense the induced voltage, and when liquid flows through, electrodes sense the voltage waveform and to measure. The induced voltage is proportional to the velocity of flow, and calculated together with cross-sectional area of the pipeline, we can get the flow rate.
How to guarantee the accuracy of this hygienic magnetic flow meter?
In actual application, the electrodes can not only measure the liquid voltage, but also the interference voltage, so it is of great significance to isolate the interference voltage. So, this hygienic magnetic flow meter uses the DC pulse to generate a magnetic field, then the other constant voltage interference such as electrochemical effects in liquids or electromagnetic effects of external magnetic files will be successfully eliminated.
As a result, this hygienic magnetic flow meter is of truly high grade, high quality and high accuracy. Customers need not to worry about it!
| Converter | ||
| Integrated Type | IP65 | |
| Remote Type | IP65(IP68 optional) | |
| Measurement sensor | ||
| Nominal Diameter | DN15-DN1000 | |
| Pressure rating (High pressure can be customized) |
DN6 – DN80, PN<4.0MPa | |
| DN100 – DN150, PN<1.6MPa | ||
| DN200 – DN1000, PN<1.0MPa | ||
| DN1200 – DN2000, PN<0.6MPa | ||
| Lining Material | Chloroprene rubber (CR), Polytetrafluoroethylene (PTFE/F4), Fluorinated ethylene propylene (FEP/F46), Teflon(PFA) |
|
| Electrode Material | 316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt | |
| Ingress Protection | IP68 | IP65 |
| Medium Temperature | -25 – 180℃ | -10 – 80℃ |
| Lining Temperature Range | Rubber liner:-20 …+60℃
High-temp rubber liner:-20…+90℃ PTFE liner: -20…+120℃ High-temp PTFE liner: -2O…+ 160℃ Polyurethane liner: -2O…+ 80℃ PFA: -20 …+180℃ |
|
| Serial communications | RS-485 | |
| Output | Current (4-20 mA), pulse, frequence, state switch | |
| Max measuring error | Measurement value ±0.5%（Flow speed > 1m/s）； Measurement value ±0.5% ±2mm/s（Flow speed <1m/s） |
|
| Repetitiveness | 0.15% | |
| Power supply | 100-240VAC, 50/60Hz, 22VDC—26VDC | |
| Power consumption | Max 15VA | |
| Signal cable | Apply only to remote type | |
| Shielded cable | Signal section, wire: 0.5mm2 Cu /AWG20 | |
