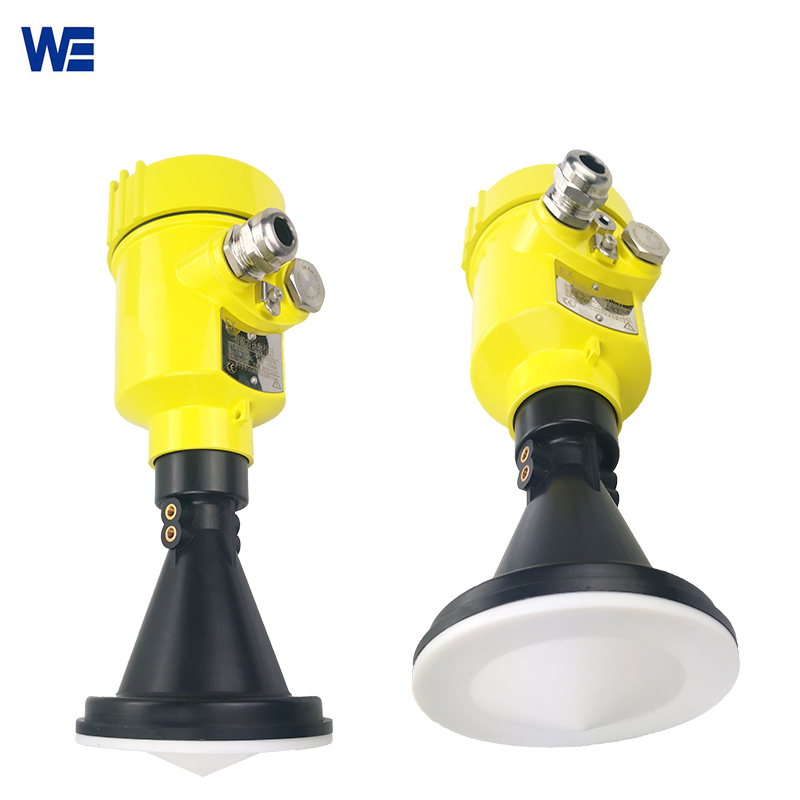

Lake Radar Level Sensor
The level of a lake or river can be measured with a lake radar level sensor. Wepower Lake Radar Level Sensor’s solid PTFE material antenna doesn’t have to worry about mosquito infestation or deterioration from saline water. We are adamant on providing high accuracy lake radar level sensors with great performance.
Lake Radar Level Sensors RD808Â play a significant role in the detection of rivers, lakes, and groundwater. Lake and river levels may be an ecological indicator of climatic, agrarian, and precipitation-related changes. Real-time river and lake condition detection is possible with the Lake Radar Level Sensor.
What Are Features Of Lake Radar Level Sensor RD808?
▲Application：Flood control, Shallow lakes
â–²Range: 30m
▲Process temp: 140~100°C
What issues must be addressed while employing a lake radar level sensor?
â–²Typically, in order to use this RD808 lake radar level sensor, the user must prepare the bracket beforehand. The bracket can be constructed based on the needs of the customer.
▲Lake and river water is always moving and changing. It must be measured at the same time every day if the user wants to measure the weekly or monthly variance in lake or river water.
â–²Users should constantly check the lake radar level sensor’s functionality and pay attention to everyday upkeep and repair.

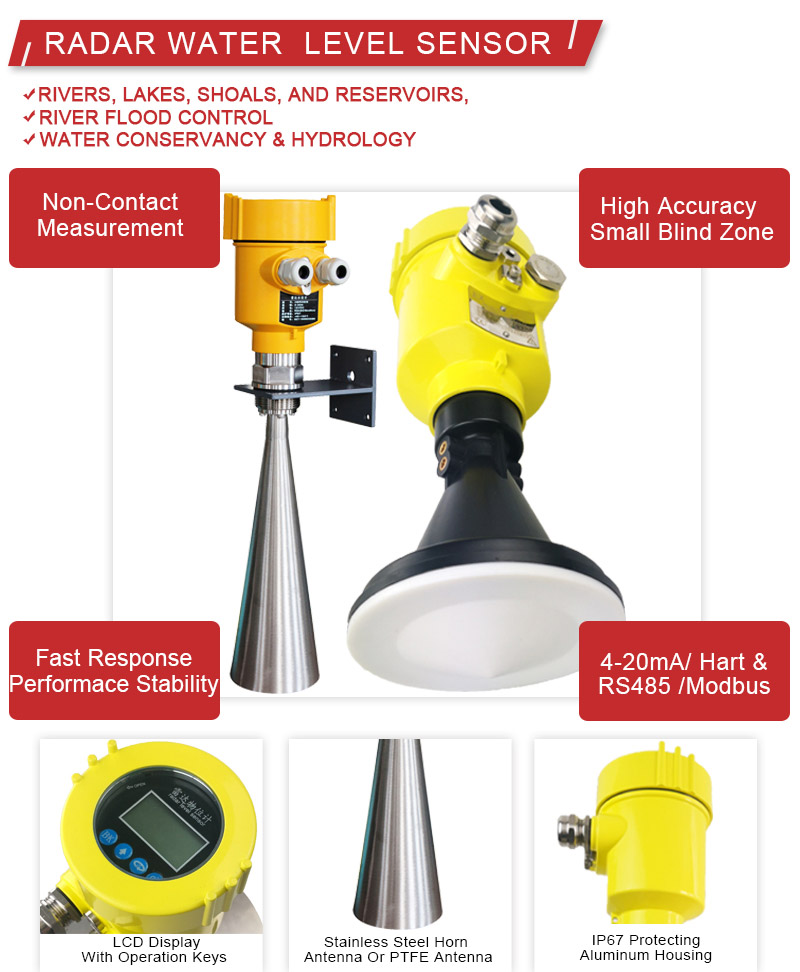

| Product Name | Lake Radar Level Sensor |
| Model | WERD808 |
| Medium | rivers, lakes, shoals, and reservoirs, river flood control for water conservancy and hydrology |
| Process Connection | G1-1/2″A thread, vertical bracket, flange |
| Measurement Accuracy | ± 5mm |
| Display | LCD, Programmable |
| Material | Antenna : Stainless steel (RD803); PTFE(RD808) |
| The seal between the shell and the shell cover: Silicone rubber | |
| Casing window: Polycarbonate | |
| The ground terminal: Stainless Steel | |
| Housing : Aluminum / Stainless steel | |
| Cable parameters | Cable entrance / plug: 1 M20xl.5 cable entrance ;1 blind plug |
| Terminal : Conductor cross section 2.5mm² | |
| Power Supply | 2-wire（DC24V）/ 4-wire（DC24V /AC220V ） |
| Output signal | 4… 20mA / HART (2-wire / 4-wire) |
| RS485/ Modbus | |
| Blind area | the ends of the antenna |
| Maximum measuring range | 70m( RD803); 30m(RD808) |
| Pressure | -0.1-0.3MPa |
| Adjust time | about 1 second (depending on the parameter settings) |
| Explosion-proof Grade | Exiaâ…¡C T6 Ga / Exd â…¡C T6 Gb |
| Process temperature | -40℃~130℃ the temperature of the antenna part |
| Working & Storage Temperature | (-40～100) ℃ |
