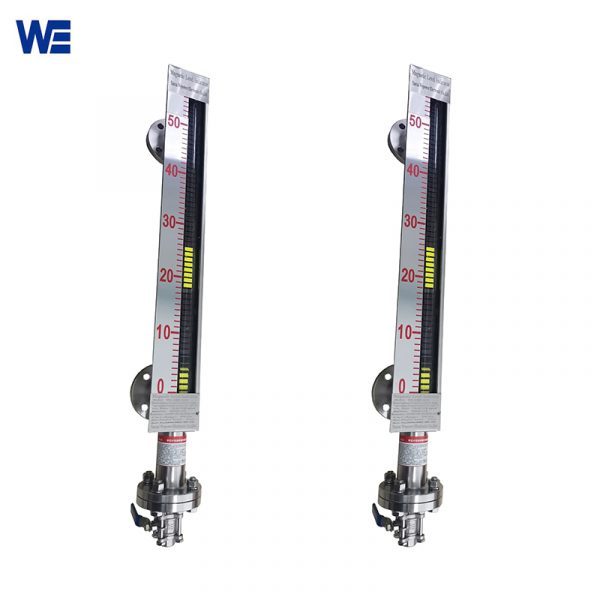

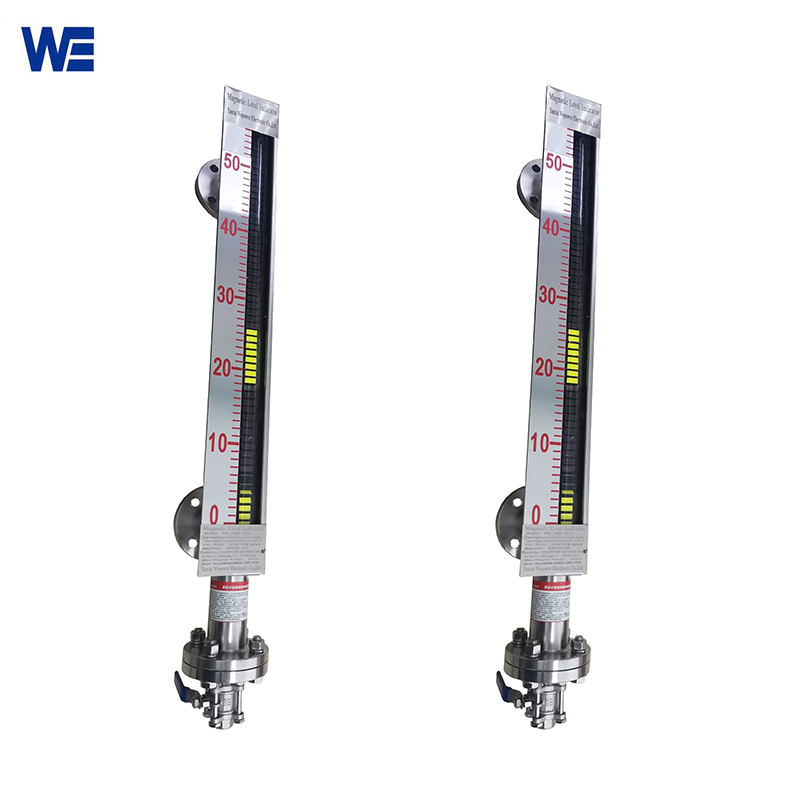

Magnetic Float Level Sensor
Magnetic Float Level Sensor means an upgraded sight glass type magnetic level gauge. Wepower has been working on this simple and practical measuring instrument for many years and has extensive experience in this field.
The focus of Magnetic Float Level Sensor is to visualize the data. Wepower magnetic float level sensors can or be used to measure outdoor chemical containers. Our magnetic float level sensor is different from the previous simple sight glass level gauge, since our this magnetic float level sensor does not require the measurement core to be in contact with the liquid medium.
What is the difference between normal sight glass level indicator and magnetic float level sensor?
Previous sight glass level indicators were not easy to clean. The conduit and the measuring panel of the ordinary sight glass level gauge are integrated, so there may not be much problem when measuring pure water, but the repetition rate and efficiency are significantly reduced when measuring oil or strong acid and alkali liquids.
The upgraded magnetic float level sensor does not come into direct contact with the measuring medium. That is to say, even if the product fails due to long-term use, the magnetic float level gauge does not need to be replaced in a large area, only a part of it needs to be replaced.
| Product name: | Magnetic float level sensor |
| Measuring medium: | water, hydrochloric acid, strong alkali, ammonia water |
| Measuring range: | 300-15000mm |
| Measurement accuracy: | ±10mm |
| Working pressure: | 0.6-42Mpa |
| Operating temperature: | -40-480°C |
| Protection class: | IP65 |
| UHZ Magnetic Liquid Level Meter | ||||||||
| / | A Side Mounted B Top Mounted |
Installation Type | ||||||
| / | 1 Basic Type 2 Anti-corrosive 3 Jacket Type 4.High Pressure &Pressure |
Type | ||||||
| / | C 0.6MPa D 1.6MPa E 2.5MPa F 4.0Mpa G 6.4Mpa H More than 6.4MPa |
Working Pressure | ||||||
| / |
|
Optional | ||||||
| L= Measuring Range (For Side Mounted) | / | |||||||
| / | L1=Measuring Range (Top mounted 0～4000mm) | / | ||||||
| / | Medium Density ρ(g/cm³ ) | / | ||||||
| / | / | |||||||
| A | 1 | D | 1 | L=2500mm | L1=3000mm | ρ=0.8g/cm³ | Example | |
Wepower ensures factory inspection before shipment, one year warranty, 24 hours technical supports, contact us now!
