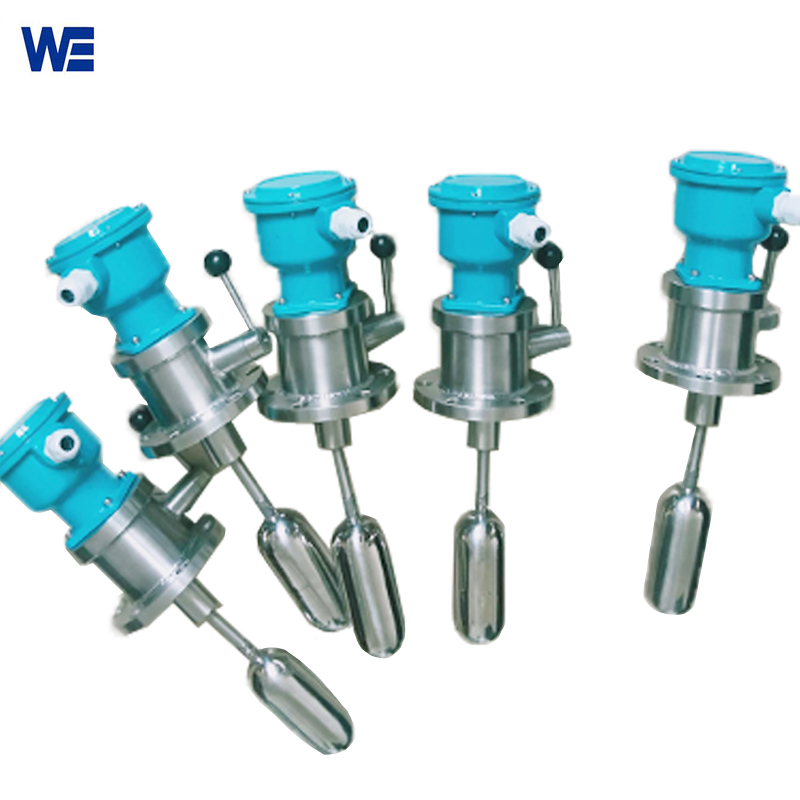

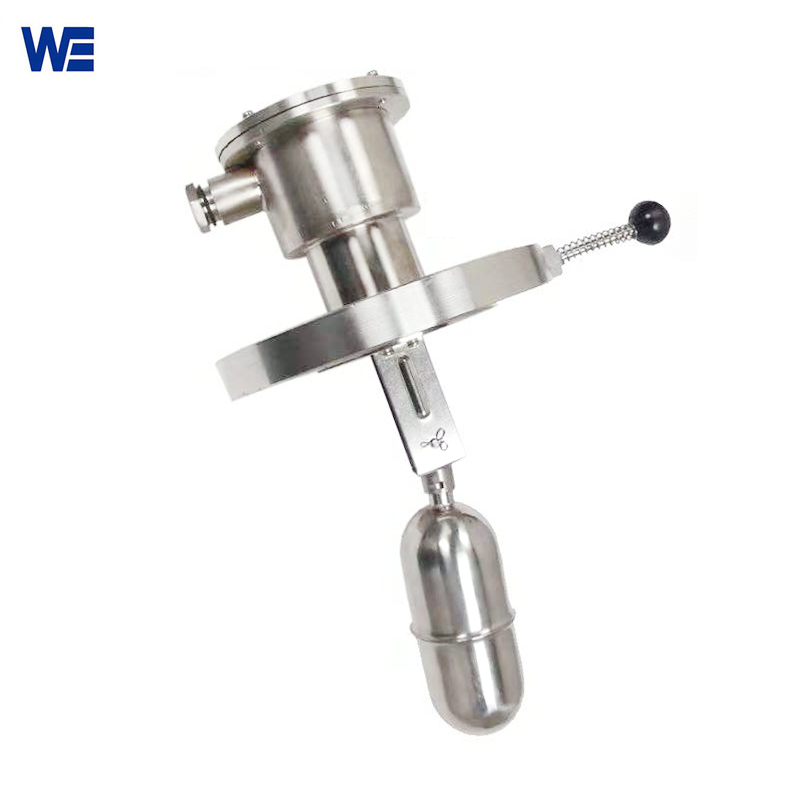

Magnetic Float Level Switch
Magnetic float level switch is a kind of level controlling instrument, which is widely used in petrochemical, water treatment, food processing and other relevant industries. Our products are all produced under serious quality inspection and control, so each of our customers gives us high praise.
Product Features of WPS Magnetic Float Level Switch
- Simple structure;
- Stable and reliable performance;
- Convenient and easy installation;
- The control part is isolated from the medium;
- Can be used in high temp and high pressure environments;
- Various material and process connection methods can meet customers’ requirements;
- Cannot be easily affected by the viscous liquids.
What Is The Principle Of This WPS Serial Magnetic Float Level Switch?
The main function of this buoyancy level switch is for alarming the liquid’s level and output signal of opening or closing. When the float floats up and down under the buoyancy of liquid medium, the reed switch in the junction box will interact with the magnet to cause the reed switch to act. Then, under the action of it, we can easily know the change and inspect or control the liquids’ level.
| Product Name | Magnetic Float Level Switch |
| Output Contact | 5A/220VAC |
| Operating Pressure | <1.5~2Mpa |
| Operating Temperature | -20~80℃, -20~200℃, 200~350℃ |
| Wetted Material | SUS304/316 |
| Applicable Specific Gravity | 0.65 |
| Contact Form | SPDT(IC) |
| Process Connection | Thread, Flange, Customization |
| Connecting Types | Side- mounted or Top- mounted |
| Float Material | SS304, SS316, Titanium Alloy, PP |
| Wiring Box Material | ABS, Aluminum Alloy, SS316, SS304, PP |
| Model | WPS 101/102/103/104 |
