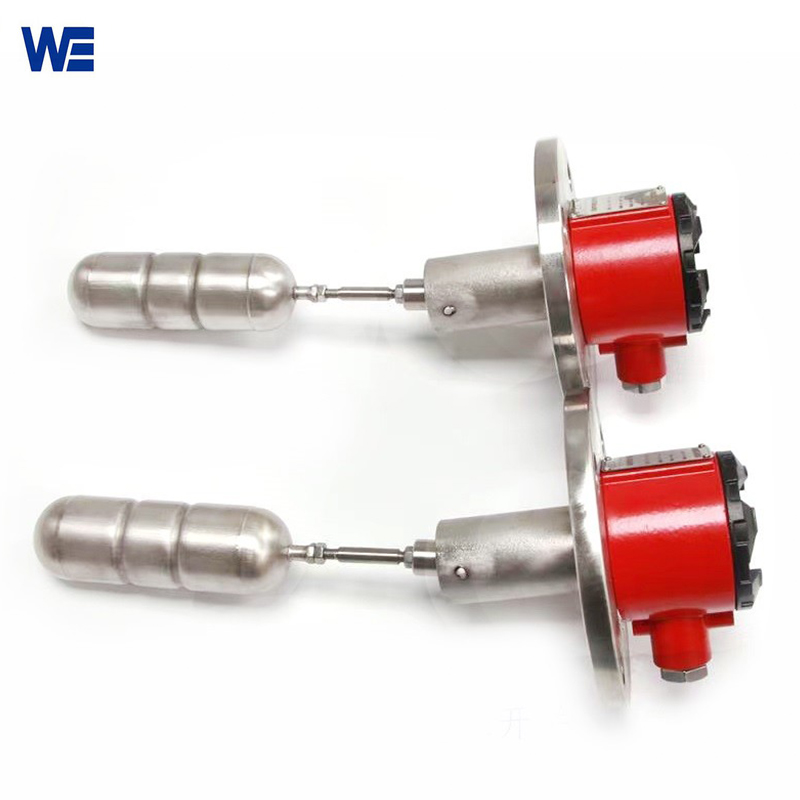

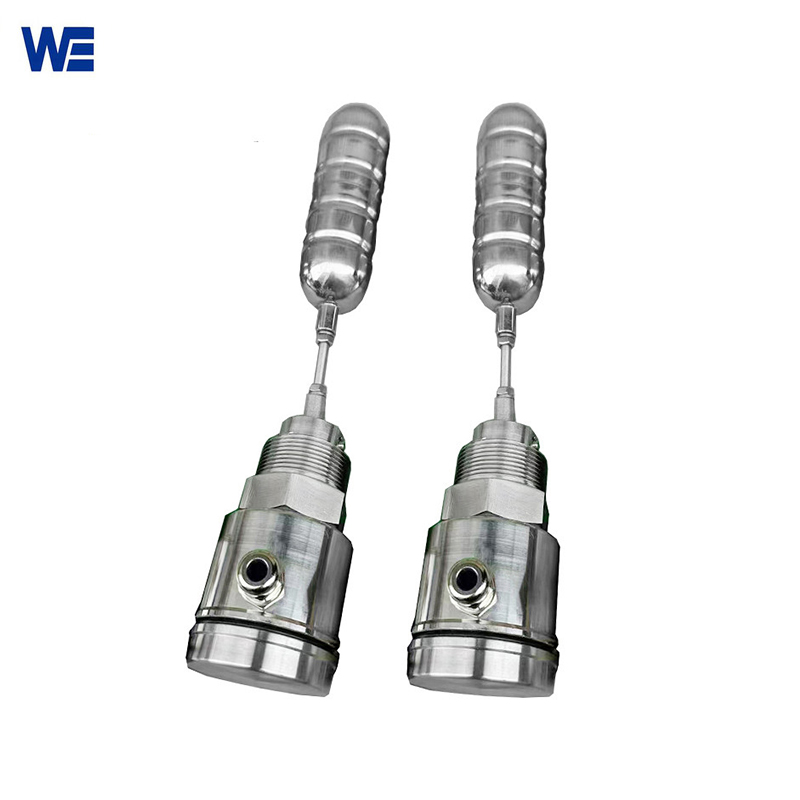

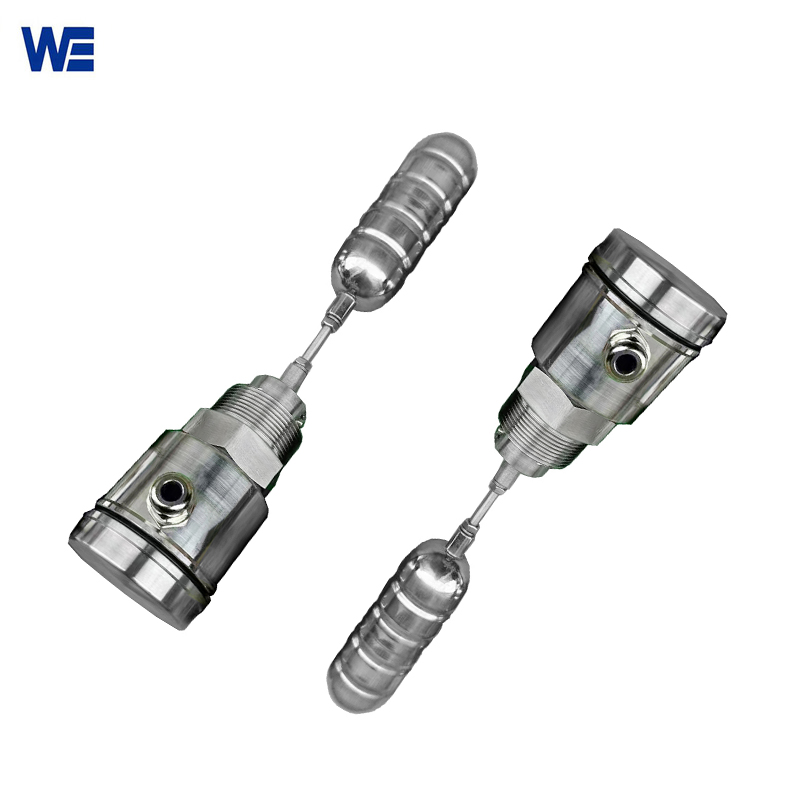

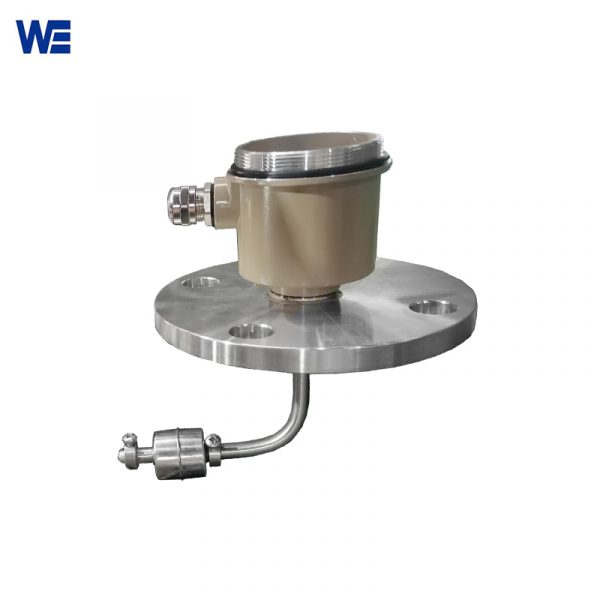

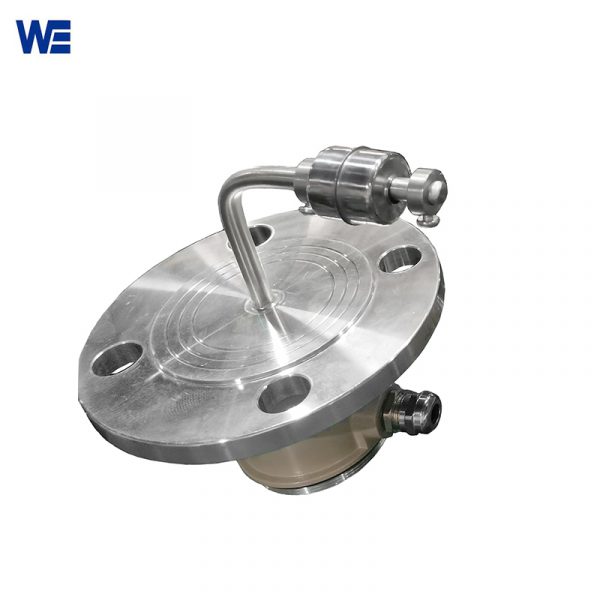

Side Mounted Float Switch
Side mounted float switches, use magnetic coupling and snap acting contacts. It is made up of NO and NC contacts that can be connected to the alarm system and light system etc. Wepower Electronic  is a professional global supplier of Side Mounted Float Switch.
Features Of Side Mounted Float switch:
â–²In many other industries as well as industrial water and drinking water treatment facilities, Side Mounted Float Switches are commonly utilized. Liquids with low impurity levels are typically suited for side mounted float switches.
â–²Water Float Switch is a simple and convenient side mounted float switch launched by Wepower Electronic. Side mounted float switch does not need to take up too much area, the price is more affordable and the quality is high.
â–²The side mounted float switch produced by Wepower Electronic is used to detect and control the high and low liquid levels in the tank. It can be installed horizontally on the tank wall or vertically on the top. The float switch can only move within a certain range. When the probe (float) rises with the liquid level, and after one end of time, the plane of the probe is about 20 degrees from the previous horizontal plane, an alarm signal will be sent out.
| Product | Â Side mounted float switch |
| Model number | WPS series |
| Measuring media | Liquid (diesel, base oil, water, chemical solution, chemical reagent, LPG etc.) |
| Wiring box | ABS aluminum |
| Output contact | 5A/220VAC |
| Contact form | SPDT（IC） |
| Type | Side-mounted threaded/flange type and top mounted threaded/flange type |
| Operating pressure | 15bar (side mounted)~ 30bar (special customization) |
| Operating temperature | -20~200°C , support high temp type |
| Wetted material | SUS304/316 |
| Applicable specific gravity | 0.65 side mounted /0.55 top mounted |
| Probe/Rod | Straight(standard) / L-shaped type |

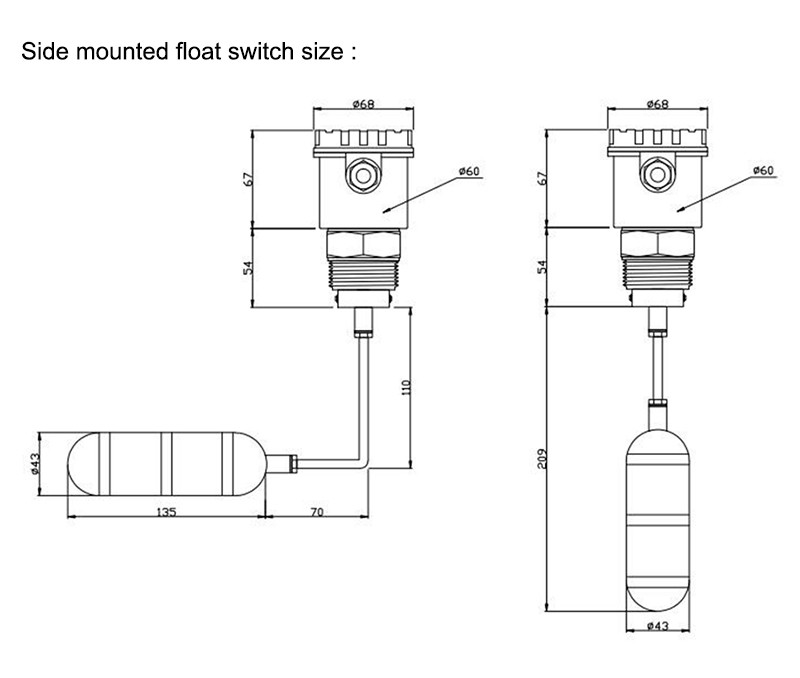

Dimension:

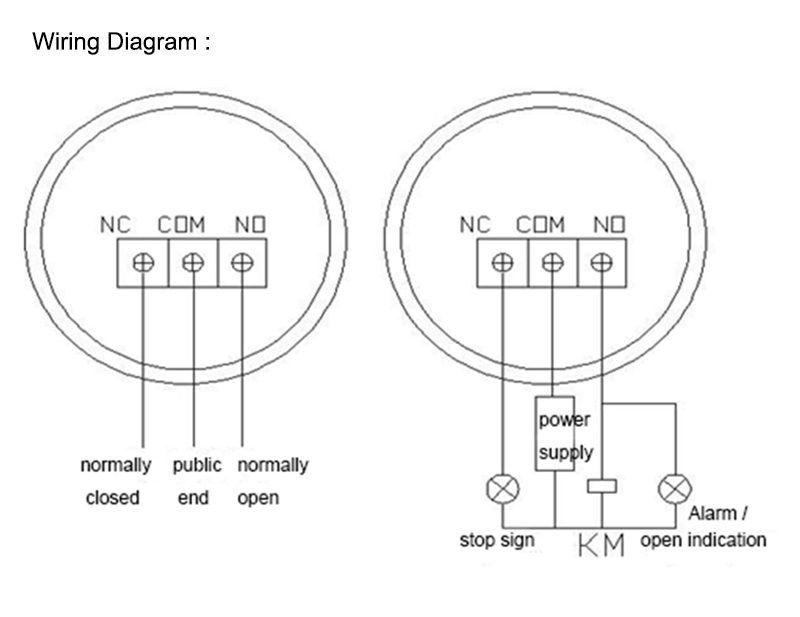

Wiring:
