Magnetic Level Gauges
Magnetic level gauges are instruments introduced by Wepower to measure liquid level in tanks. Wepower has been engaged in the magnetic level gauges industry for many years, welcome to contact us.
Magnetic Level Gauges are safe and reliable liquid level measuring instrument used in various industrial occasions. Magnetic level gauge is not only an instrument used in daily life, but also a high-performance measuring instrument that can be used in high temperature, high pressure and strong corrosive environments.

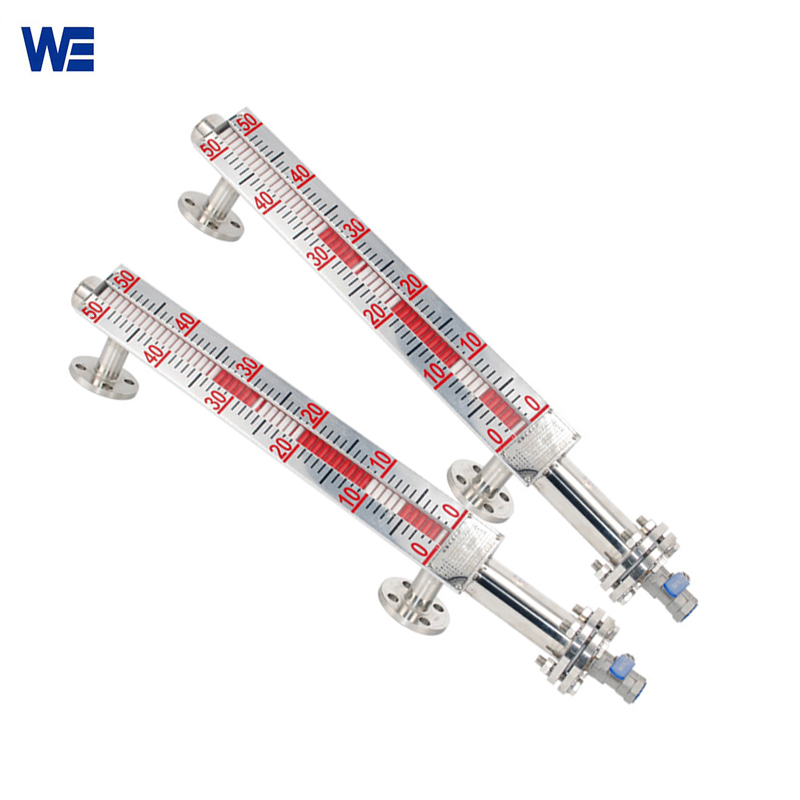

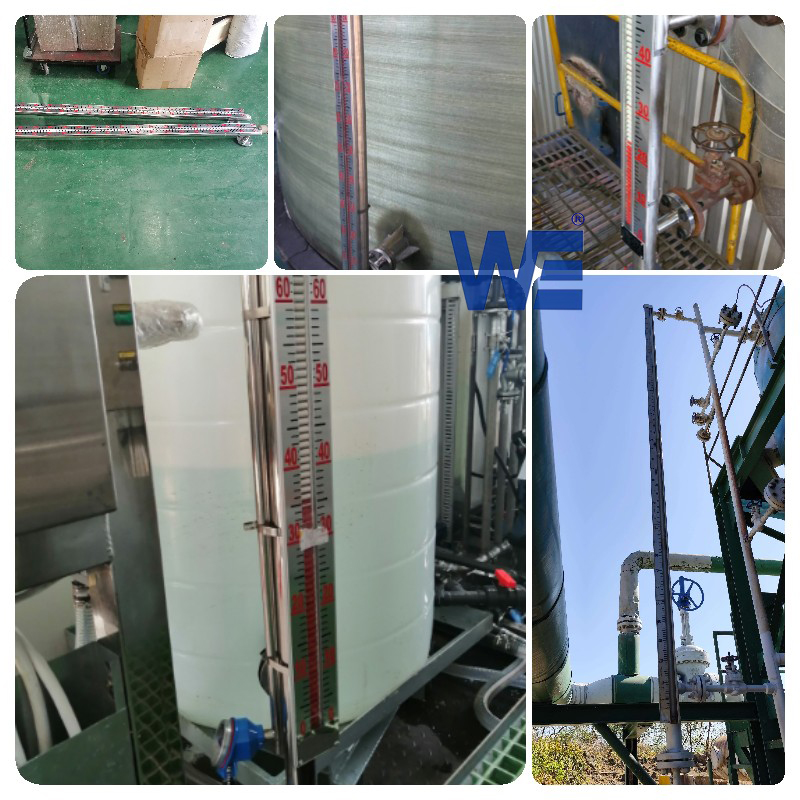

In terms of appearance of magnetic level gauges, there are two important parts, a conduit and a display panel. The conduit is an important device connected to the measuring tank, and the display panel is an important component for displaying the liquid level. Magnetic level gauges are mainly installed around the sides of industrial water tanks.
The panels of magnetic level gauges are made of aluminum material, which has excellent light and heat reflectivity and conductivity. It is treated by cold and hot processes and has strong corrosion resistance.
The high practicability of the inner working system and the safe and durable aluminum shell parts make the Wepower magnetic liquid level gauge have better performance and more stable measurement functions.
| Product name: | Magnetic level gauge |
| Measuring medium: | water, hydrochloric acid, strong alkali, ammonia water |
| Measuring range: | 300-15000mm |
| Measurement accuracy: | ±10mm |
| Working pressure: | 0.6-42Mpa |
| Operating temperature: | -40-480°C |
| Protection class: | IP65 |
| UHZ Magnetic Liquid Level Gauge | ||||||||
| / | A Side Mounted B Top Mounted |
Installation Type | ||||||
| / | 1 Basic Type 2 Anti-corrosive 3 Jacket Type 4.High Pressure &Pressure |
Type | ||||||
| / | C 0.6MPa D 1.6MPa E 2.5MPa F 4.0Mpa G 6.4Mpa H More than 6.4MPA |
Working Pressure | ||||||
| / |
|
Optional | ||||||
| / | L= Measuring Range (For Side Mounted) | / | ||||||
| / | L1=Measuring Range (Top mounted 0～4000mm) | / | ||||||
| / | Medium Density ρ(g/cm3) | / | ||||||
| / | / | |||||||
| A | 1 | D | 1 | L=2500mm | L1=3000mm | ρ=0.8g/cm3 | Example | |
More high quality magnetic level gauges are available on our website.
