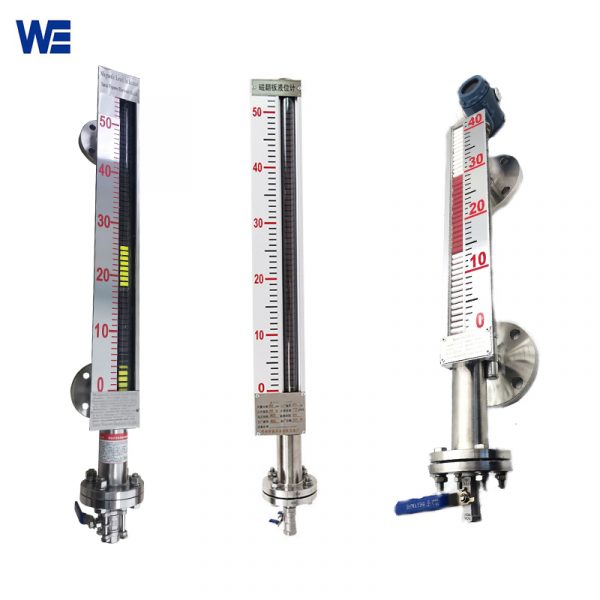

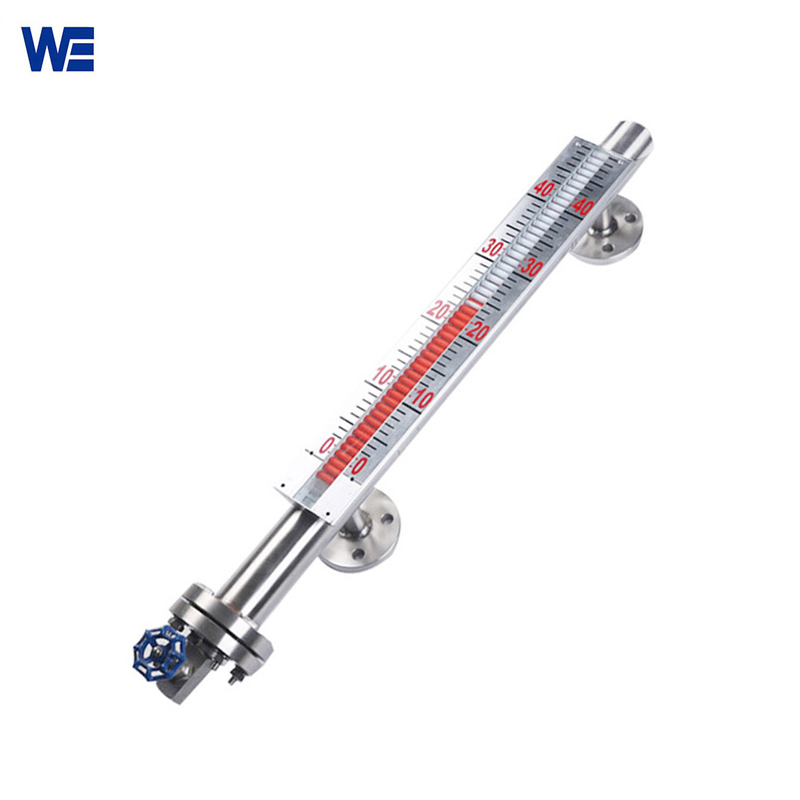

Float Level Gauge For Tanks
Wepower Electronic float level gauge for tanks is industrial level indicator. Float level gauge for tanks can be combined with hydrostatic level transmitter or reed-resistance level transmitter to output current signal easily.

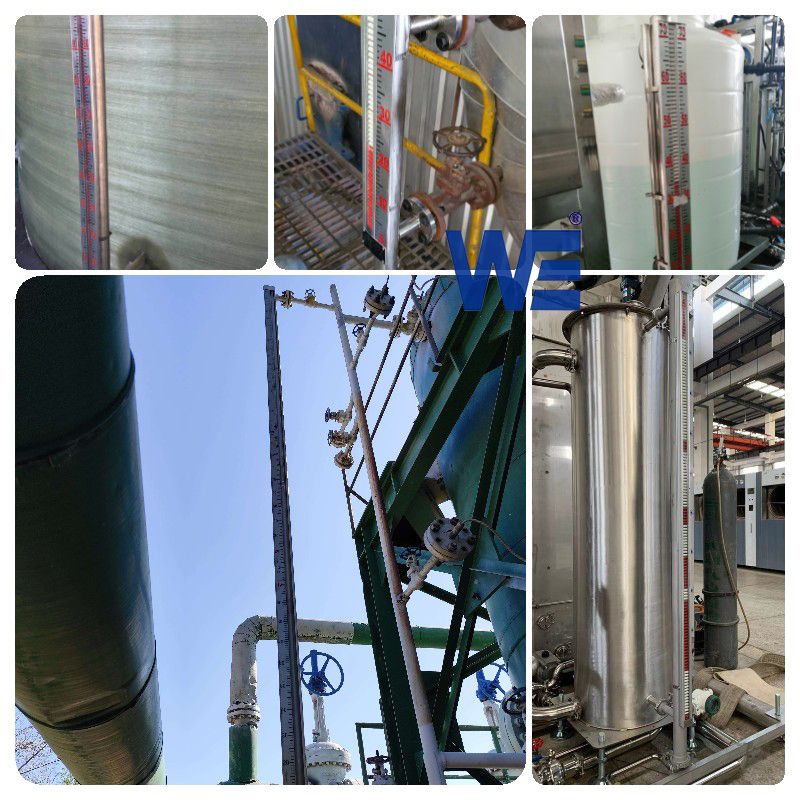

Wepower Electronic Float Level Gauge For Tanks can clearly reflect the liquid level in the storage tank even in complex, dangerous and highly corrosive fluid environments. There are normal temperature type, high temperature type, mechanical type, output type and display type etc. Different working temperature and working pressure will affect the manufacturing process and production materials of float level gauge for tanks.
Advantages Of Float Level Gauge For Tanks:
▲ Low maintenance cost, high cost performance
▲ Simple structure, simple installation
▲ Large indicator panel, easy to read
▲ Good shock resistance, stable measurement
▲The magnetic steel aligner can be used for on-site adjustment
| Product | Float level gauge for tanks |
| Model number | WP/ZP- UHZ |
| Working principle | Magnetic coupling effect |
| Measuring media | liquid like water, solutions |
| Measuring range | 300-13000mm |
| Accuracy | 10mm |
| Working pressure | 1.0/1.6/2.5/4.0/6.0/16Mpa |
| Working temperature | -20~450°C |
| Medium Viscosity | ≤0.5Pa.S |
| Medium density | ≥0.45g / cm³ |
| Relative Humidity | 10% to 90% |
| Environmental Pressure | 86KPa ~ 106KPa |
| Wetted materials | stainless steel 304, 316L stainless steel, PVC, PTFE, titanium, etc. |
| Process connection | flange connection, DN25 by default. |
| Power supply | DC24V or AC220V |
| output | Mechanical type, output type(4-20mA+HART) |
| Display | With or Without |

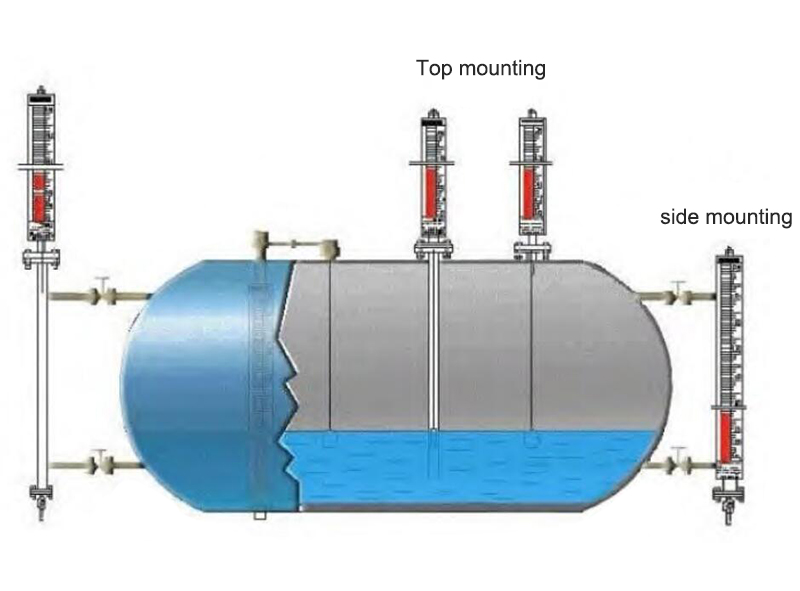

| Installation type | Side mounted or top mounted |
| UHZ Magnetic Liquid Level Meter | ||||||||
| / | A Side Mounted B Top Mounted |
Installation Type | ||||||
| / | 1 Basic Type 2 Anti-corrosive 3 Jacket Type 4.High Pressure &Pressure |
Type | ||||||
| / | C 0.6MPa D 1.6MPa E 2.5MPa F 4.0Mpa G 6.4Mpa H More than 6.4MPa |
Working Pressure | ||||||
| / |
|
Optional | ||||||
| L= Measuring Range (For Side Mounted) | / | |||||||
| / | L1=Measuring Range (Top mounted 0～4000mm) | / | ||||||
| / | Medium Density ρ(g/cm³) | / | ||||||
| / | / | |||||||
| A | 1 | D | 1 | L=2500mm | L1=3000mm | ρ=0.8g/cm³ | Example | |
