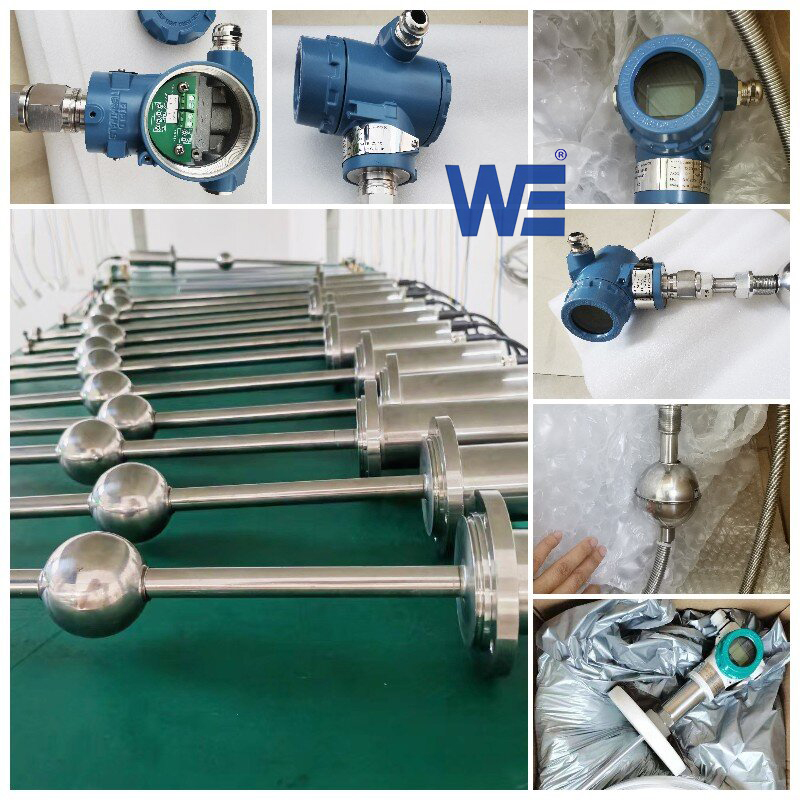

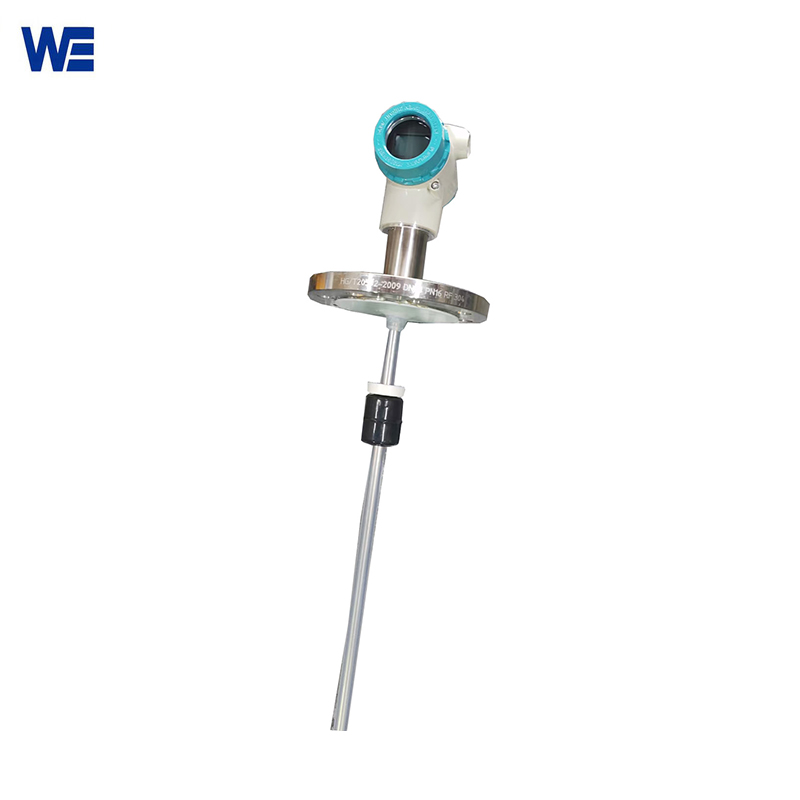

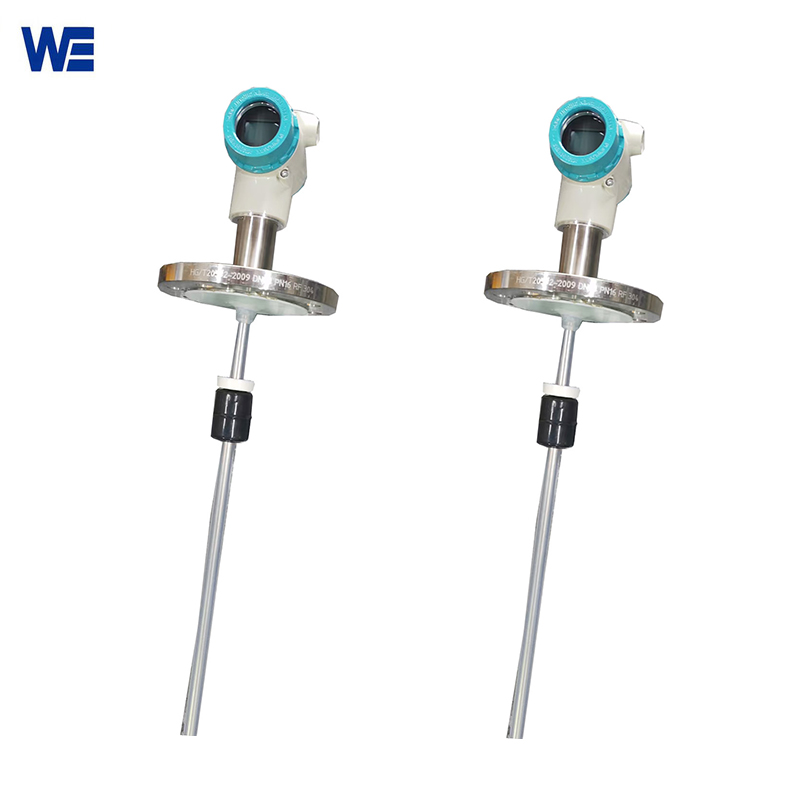

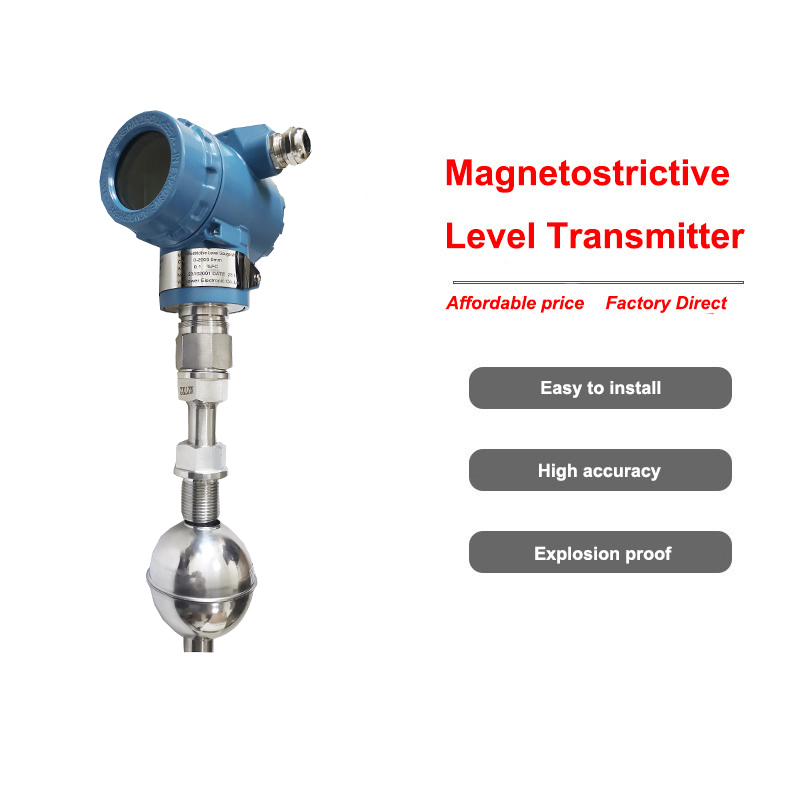

Anti-corrosive Magnetostrictive Level Transmitter
Anti-corrosive magnetostrictive level transmitter is a highly sensitive liquid level measurement device used in highly corrosive environments. Anti-corrosive magnetostrictive level transmitter is a continuous multi-functional liquid level measurement instrument. Wepower anti-corrosive is easy to use and requires no assembly or calibration.
What Substances Can Anti-corrosive Magnetostrictive Level Transmitters Detect?
Anti-corrosive Magnetostrictive Level Transmitters are liquid level measuring instruments that can be utilised for extremely corrosive chemical compounds such as strong acid, hydrochloric acid, nitric acid, hydrochloric acid, ammonia, calcium hydroxide, sodium hydroxide solution, and so on. The transmitter and measuring rod of the Anti-corrosive magnetostrictive level transmitter are sealed in the conduit, and the measuring element is not in direct contact with the measuring medium.
Anti-corrosive Magnetostrictive Level Transmitters use efficient operating principles to be more precise and safer. Wepower Electronic has consistently upheld the value of being accountable to consumers, and all products are rigorously inspected and calibrated before leaving the factory. Users need only follow the requirements while using anti-corrosive magnetostrictive level transmitters. Users do not need to put together or modify settings by themselves.
Application Fields Of Anti-corrosive Magnetostrictive Level Transmitter:
▲Medicine and health field
▲Machinery manufacturing field
▲Power plant power generation fields
▲Water treatment
▲ Food and beverage industry
▲Offshore & Shipbuilding
▲Crude oil processing
| Product | Anti-corrosive magnetostrictive level transmitter (WPX 901) |
| Measuring range | 100-5000mm |
| Wetted material | AISI304, AISI316, PTFE etc. |
| Measurement field | Water, aqueous solution, beverages, food production, beverage production, chemical reagent production, petrochemical industry, crude oil storage, etc. |
| Medium | specific gravity ≥0.5g/cm3 and viscosity 1.25St |
| Accuracy | :≤±0.1%FS or 1um, whichever is the maximum |
| Power supply | DC12-36V / Rated 24V |
| Output | two-wire 4-20mA+HART (optional) |
| Measurement display resolution | 0.3mm |
| Nonlinearity | <±0.05%FS |
| Hysteresis | ≤±0.002%FS |
| Temperature | -40-85°C (special instruction are required if it exceeds 85°C) |
| Pressure | 0-1Mpa (special indication is required when exceeding 1Mpa) |
| Explosion-proof | EXiaⅡCT4 intrinsically safe type |
| Junction box protection level | IP65 |

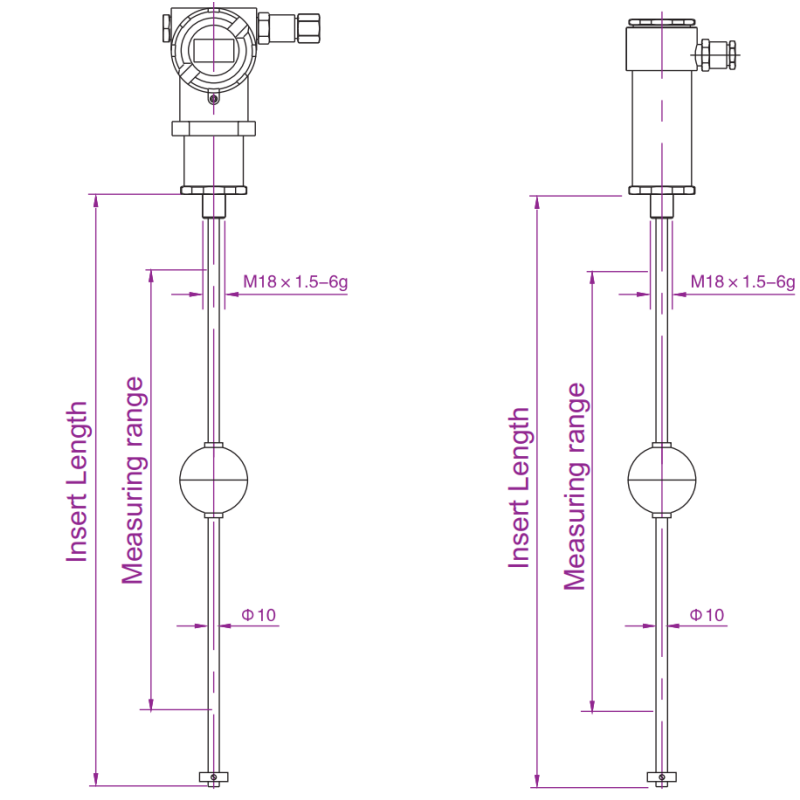

| Magnetic float ball | Standard ø76 special supply ø48, ø51, ø120,
ø145 or user’s choice. Float height F: ø48, is 55, ø51 is 60, ø76 is 80, ø120 is 125, ø145 is 150 (mm) |
