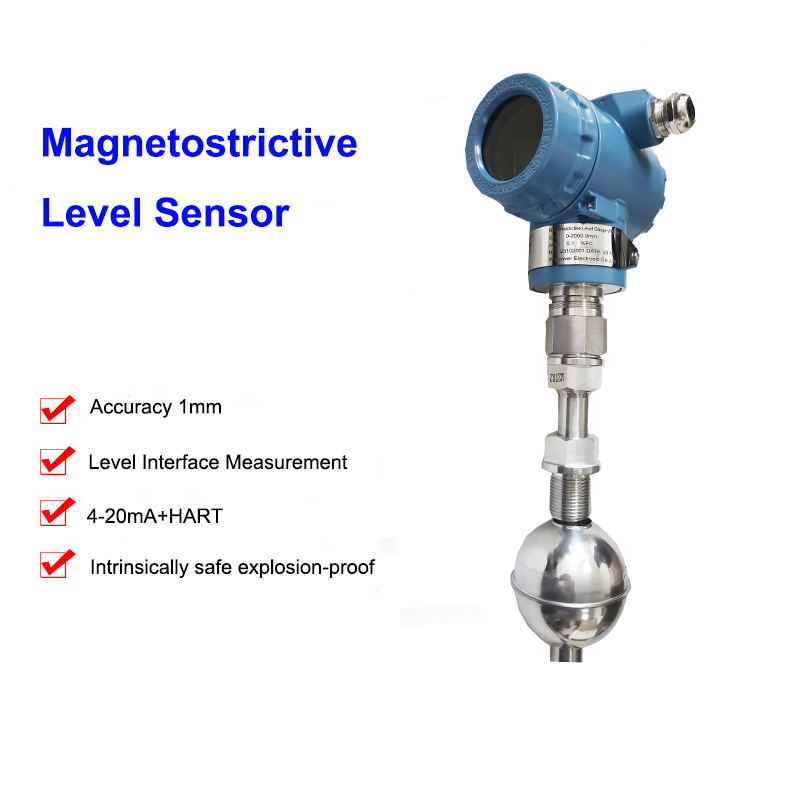

Magnetostrictive Type Level Transmitter
Magnetostrictive type level transmitter is a high-precision and cost-effective liquid level measuring instrument. Wepower Electronic magnetostrictive type level transmitters are employed in liquid-level monitoring circumstances with high standards and strict accuracy requirements.
What’s The Working Principle Of Magnetostrictive Type Level Transmitter?
Magnetostrictive Type Level Transmitter is a liquid level measuring instrument that employs the Wiedmann effect principle. In contrast to the magnetic coupling-based liquid level gauge, magnetostrictive type level transmitter tracks the time difference between transmitting a pulse signal and receiving a rebound pulse signal.
Wepower Electronic Magnetostrictive Type Level Transmitter is used in liquid level measurement environments with high standards and strict accuracy requirements. We use high-quality core materials to ensure safe use, accurate results, and long-term usability.
Wepower Electronic has always been committed to providing high-level measuring products. Magnetostrictive type level transmitter is a contact instrument with a similar appearance to a float level gauge.
| Product | Magnetostrictive type level transmitter (WPX 901) |
| Measuring range | 100-5000mm |
| Wetted material | AISI304, AISI316, PTFE etc. |
| Measurement field | Water, aqueous solution, beverages, food production, beverage production, chemical reagent production, petrochemical industry, crude oil storage, etc. |
| Medium | specific gravity ≥0.5g/cm³ and viscosity 1.25St |
| Accuracy | :≤±0.1%FS or 1um, whichever is the maximum |
| Power supply | DC12-36V |
| Output | two-wire 4-20mA+HART (optional) |
| Measurement display resolution | 0.3mm |
| Nonlinearity | <±0.05%FS |
| Hysteresis | ≤±0.002%FS |
| Temperature | -40-85°C (special instruction are required if it exceeds 85°C) |
| Pressure | 0-1Mpa (special indication is required when exceeding 1Mpa) |
| Explosion-proof | EXiaâ…¡CT4 intrinsically safe type |
| Junction box protection level | IP65 |
| Magnetic float ball | Standard ø76 special supply ø48, ø51, ø120,
ø145 or user’s choice. Float height F: ø48, is 55, ø51 is 60, ø76 is 80, ø120 is 125, ø145 is 150 (mm) |
