Paddle Level Switch

What Are The Features Of Paddle Level Switch?

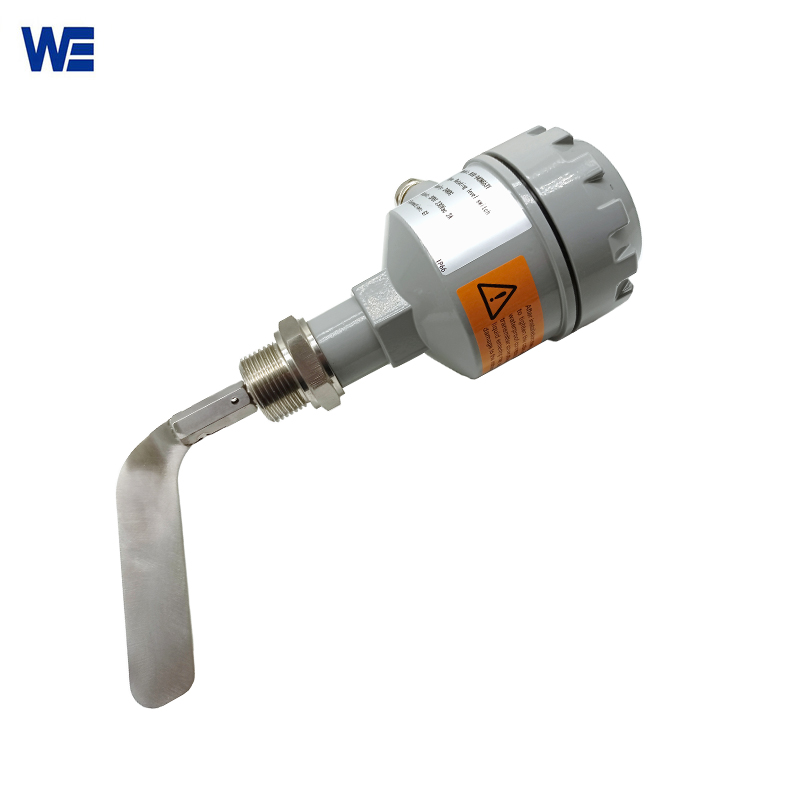

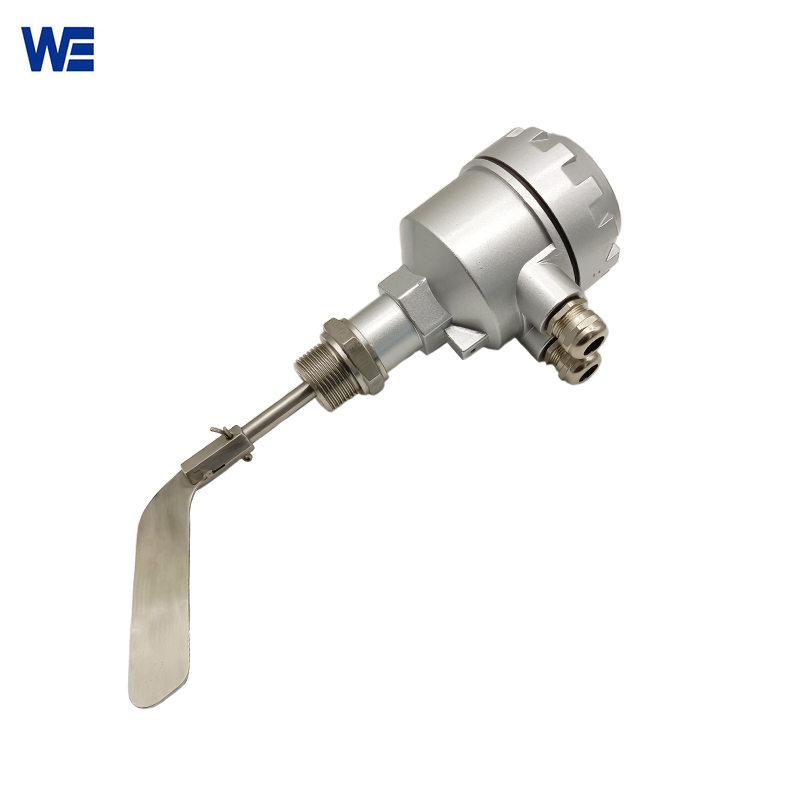

Installed in tanks, bins, and pipes, Paddle Level Switches—also known as rotary paddle level sensors—are a frequent level measurement device for blocky and powdery items. Additionally, the feed and discharge switches are frequently utilized in tandem with the paddle level switch. The paddle level switch is precise in its measurement, long-lasting, and easy to install.

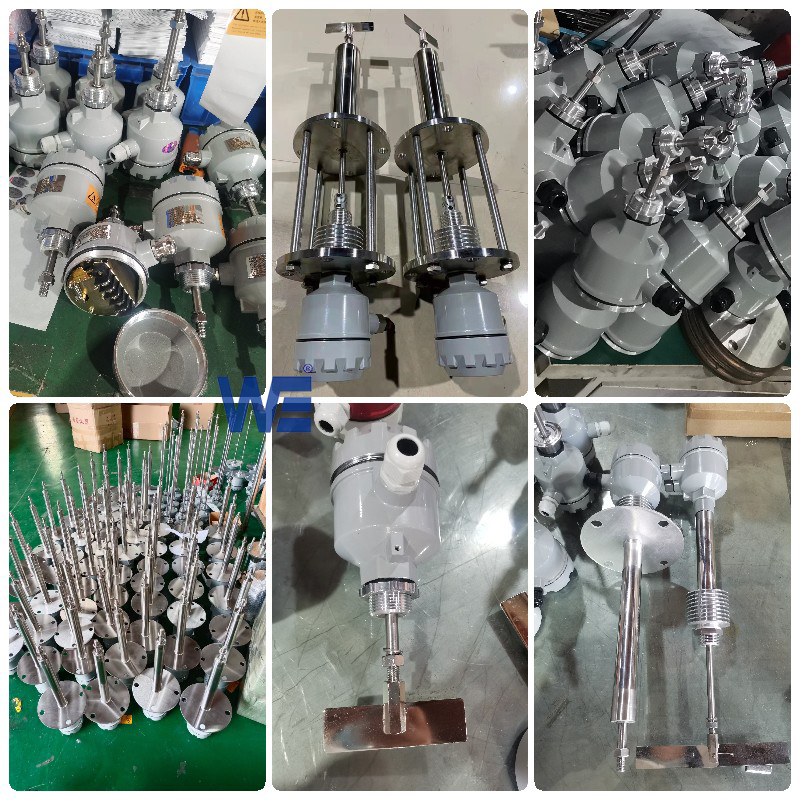

Paddle Level Switch can be used in the detection of fertilizers, berries, soybean meal, ores and other substances. The detection range of normal specification Wepower Electronic level switch paddle type is about 145mm. Rotating level switch paddle type has a variety of shapes. Our company can install extension tubes and provide high-temperature version configurations according to customer needs.

What Should Be Paid Attention To When Operating The Rotary Paddle Level Switch On Site?

• When installing the paddle level switch, please install it horizontally or vertically according to the selected model.
• When installing the  paddle level switch, avoid installing it very close to the material inlet. If the switch must be installed close to the material inlet, we recommend that the user install a 2mm wide safety protection baffle 200mm above the switch.
• When using the shaft length adjustable switch, when the universal joint is connected to the rotating shaft, the user should ensure that the lock nut is coated with anoxic glue, and then locked with a wrench.
• During on-site installation, users should follow the rule of “opening the cover after power off”.

To see the comparison of different RPM of Rotary paddle switch, please click on the picture below.
