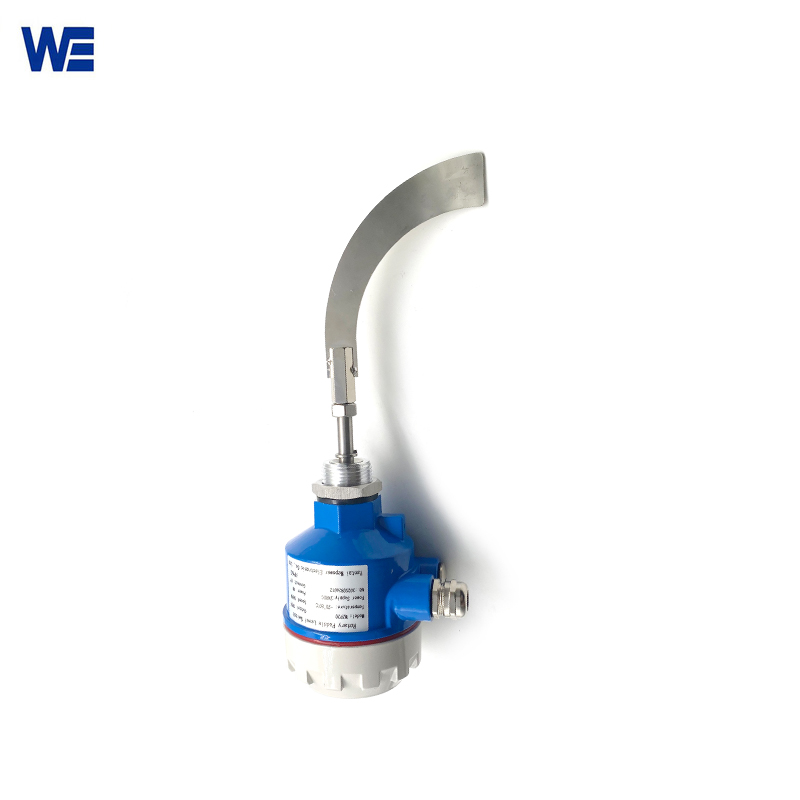

Rotary Level Switch For Powder
With its simple structure, stable performance, and strong adaptability, Wepower WZP20 rotary level switch for powder has become one of the most commonly used level detection instruments in industrial sites, providing stable and reliable monitoring for various silos, hoppers, and storage tanks.
Why Choose Wepowerās Rotary Paddle Level Switches For Powders And Granules?
- Wide Range Of Applications: It can detect a variety of granular and powdery materials such as cement, grain, feed, plastics, ore, coal powder, and chemical raw materials.
- Robust and Durable Structure: The aluminum junction housing has high level of protection, is dust-proof, waterproof, and anti-interference, and can operate stably for a long time in harsh industrial environments.
- Highly Customization: Supports various customization options such as high-temperature models and extended tube types, tailored to specific working conditions.
Whether in conventional industrial production or in harsh environments such as high temperature, heavy dust, explosive, and high viscosity conditions, Wepower rotary level switch deliver stable performance for continuous monitoring, providing a solid warranty for safe production.
Beyond rotary paddle level switches for powders, Wepower also offers a full range of level switches including vibrating fork level switches, RF admittance level switches,Ā float level switches, and vibration rod level switches. Precise detection, stable and reliable operation, suitable for various working conditions involving liquids, powders, and granules. Choose Wepower for reliable level detection solutions!
| Product name | Rotary Level Switch For Powder |
| Model | WZP20 |
| Power supply | 220VAC/24VDC/110VAC |
| Power consumption | 4W |
| Contact capacity | SPDT 5A/250VAC |
| Blade speed | 1RPM/2.5RPM/5RPMļ¼220V only have 1Rpm and 5 Rpmļ¼ |
| Voltage withstand | AC 1500VĆ1minute |
| Measuring torque | 1.0 NĀ·m |
| Explosion-proof | Ex d ā ” C T6 Gb |
| Applicable specific gravity | 0.5g/cmĀ³ or more |
| Operating temperature | -20ļ½80ā/high temperature type -20ļ½250ā |
| Process connection | G1āā thread(our normal); Flange; other options are customizable |
| Cable entry | M20Ć1.5 internal thread |
| Junction Housing | Aluminum with color coating |
| Blade material | SS304; SS316 |
| Insertion length | Ā Standard length or customized protection extension tube |
| Output | Relay |
| Blade type | 100×30(WxH),65×80(WxH), 65×120(WxH), 80×80(WxH), 50×30(WxH), Sickle shape |
Ā

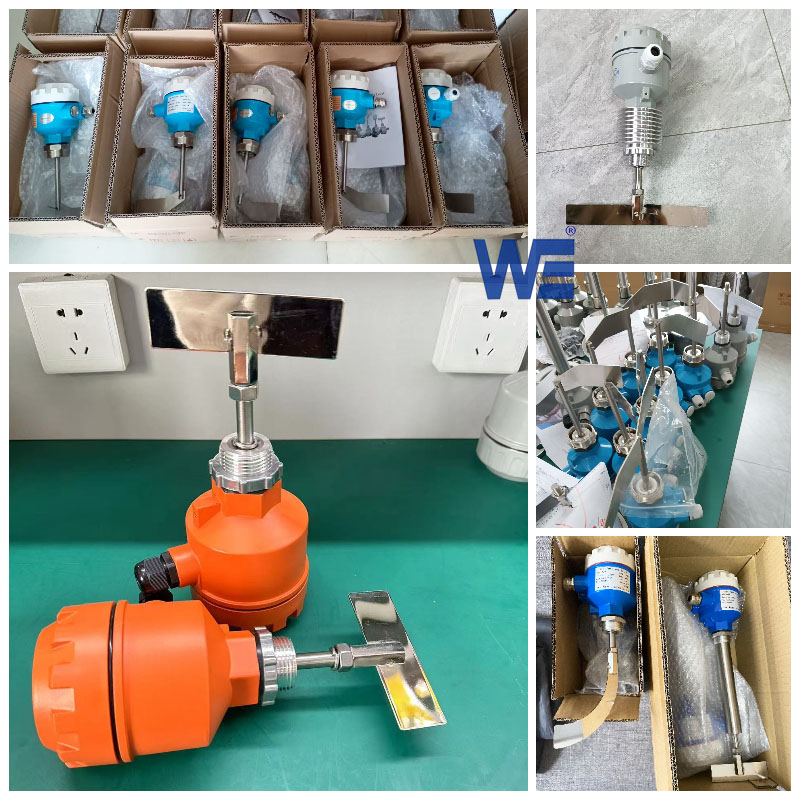

The Picture Below Shows One Middle EasternĀ Customer Who Placed An Order For 200 Sets Rotary Paddle Switches After Using Our Products.
