Radar Level Transmitter For Chemical Storage Tank
Chemical liquid level can be properly and efficiently measured with radar tank transmitter. Radar level transmitters RD807 are also used in water treatment plants and crude oil refining etc., Please contact Wepower Electronic if you want to see more about level transmitter for chemical storage tank.

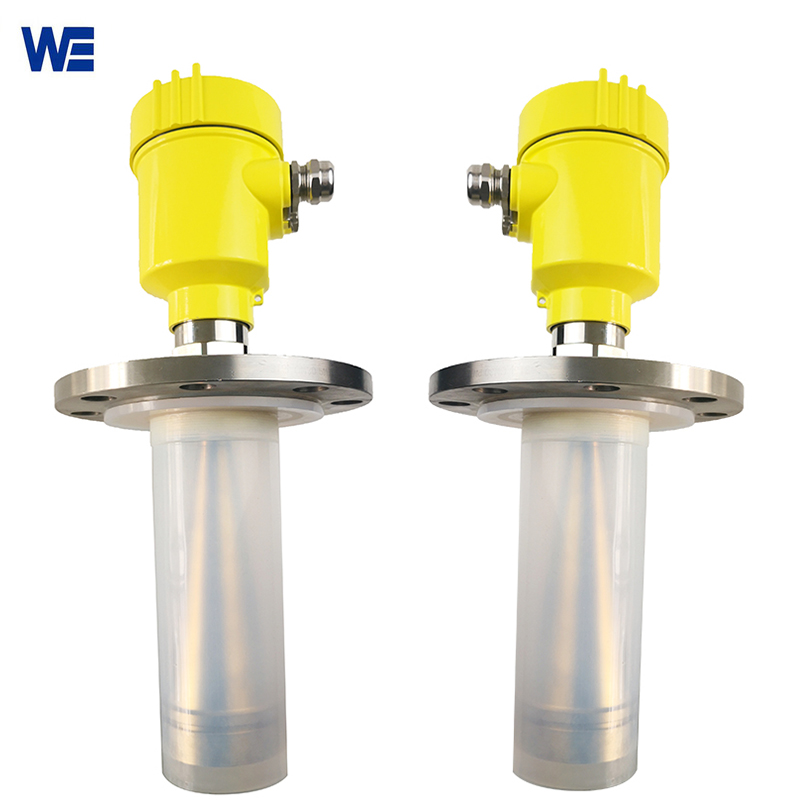

Radar Level Transmitter For Chemical Storage RD807Â is a bit unusual in appearance. The conical horn antenna is located below the flange. The outside of the radar antenna is covered with a transparent PTFE hard film.
The accuracy of the radar level transmitter RD807 can reach ±3mm, and the range that can be measured can reach 30 meters. It can often be seen in many oil processing plant. The stainless horn shape antenna inside the RD807 radar level transmitter is very durable, the outer PTFE material is mainly used to protect the radar and antenna from corrosive liquids, this design also prevents the dead bodies of bugs and flies from clogging the radar level transmitter.
 Features Of Radar Level Transmitter for Chemical Storage Tank RD807:
- Application: Corrosive water, Sewage
- Range: 30m
- Â Process connecting: Thread/Flange
- Temperature: -40~150°C
- Pressure: -0.1~4.0MPa
- Accuracy: ±3mm
- Frequency range: 26GHz
- Â Signal output: 4~20Ma/HART/RS485/MODBUS
- Anti-explosion: Yes
| Product Name | Level Transmitter for Chemical Storage Tank |
| Model | RD807 |
| Medium | Crude oil, Corrosive liquid /steam |
| Process Connection | Thread G1½″A ,Thread 1½ ,NPT, Universal Flange |
| Measurement Accuracy | ± 5mm |
| Display | LCD, Programmable |
| Material | Antenna :PTFE |
| The seal between the shell and the shell cover: Silicone rubber | |
| Casing window: Polycarbonate | |
| The ground terminal: Stainless Steel | |
| Housing : Aluminum / Stainless steel | |
| Cable parameters | Cable entrance / plug: 1 M20xl.5 cable entrance ;1 blind plug |
| Terminal : Conductor cross section 2.5mm² | |
| Power Supply | 2-wire（DC24V）/ 4-wire（DC24V /AC220V ） |
| Output signal | 4… 20mA / HART (2-wire / 4-wire ) |
| RS485/ Modbus | |
| Blind area | the ends of the antenna |
| Maximum measuring range | 30 |
| Pressure | -0.1-4MPa |
| Adjust time | about 1 second (depending on the parameter settings) |
| Explosion-proof Grade | Exiaâ…¡C T6 Ga / Exd â…¡C T6 Gb |
| Process temperature | -40℃~130℃ the temperature of the antenna part |
| Working & Storage Temperature | (-40～100) ℃ |
