Radar Tank Level Transmitter

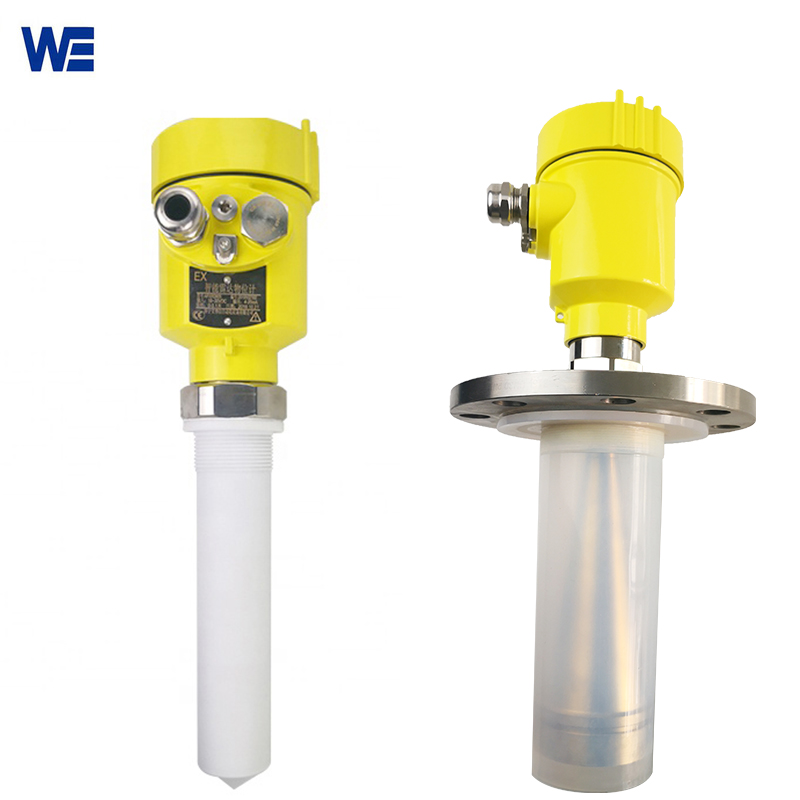

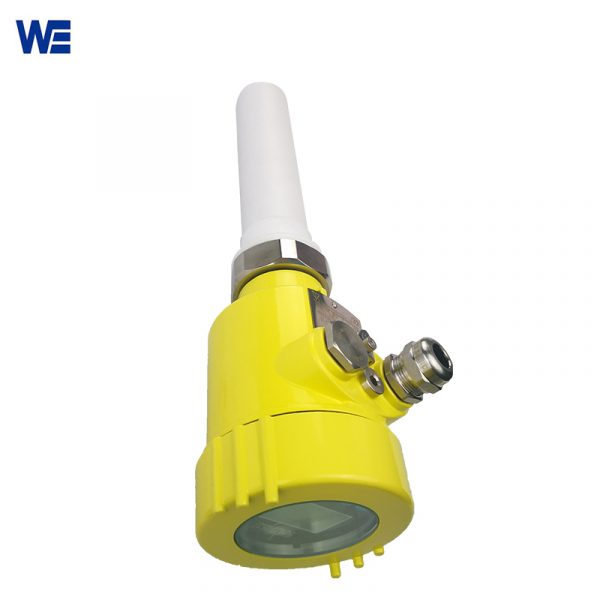

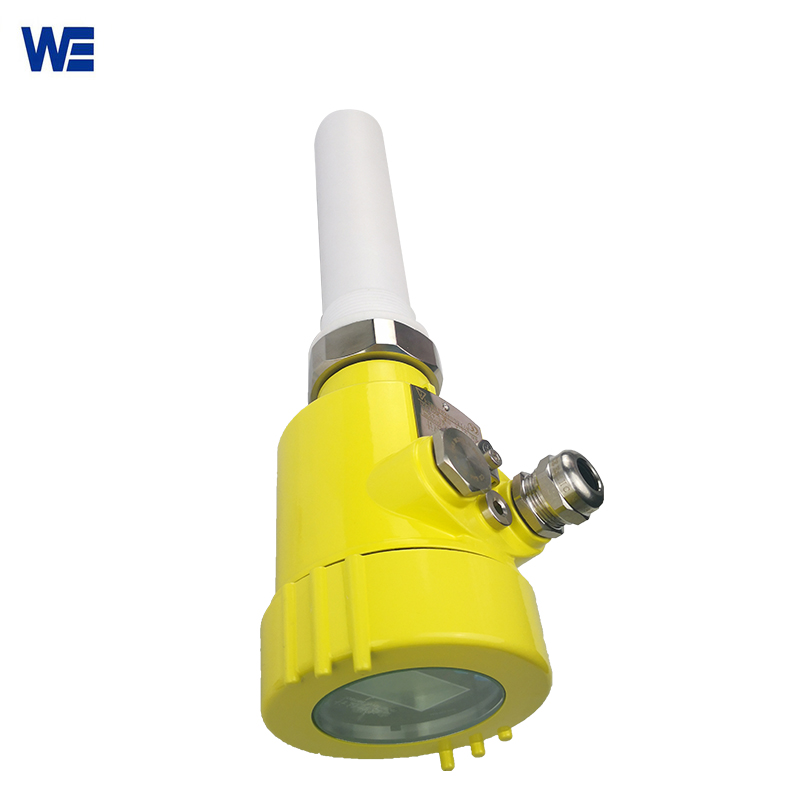

WERD801 radar tank level transmitter adopted 26G high frequency radar sensor , which is full PTFE antenna is suitable for measuring various strong corrosive liquids，preventing slight condensation.
The 26G high frequency radar sensor, which has a complete PTFE antenna and can measure a variety of very corrosive liquids while preventing mild condensation, was used by the WERD801 radar tank level transmitter. Tetrafluoroethylene, the material used to make the antenna structure, has a high resistance to corrosion. Utilizing its benefits of cheap maintenance, high performance, high precision, high reliability, and extended service life, the measurement is stable and has a great after-use effect.
The 801 radar tank level transmitter is commonly used for measuring corrosive liquids in smaller tanks, and it can be placed using a threaded connection and flange connection. The PTFE rod needs to be put into the measurement tank, and the radar transmitter is mounted at 1/4 or 1/6 of the diameter.
| Product Name | 26G Radar Tank Level Transmitter |
| Model | WERD801 |
| Medium | Corrosive liquid |
| Process Connection | Thread G1½″A ,Thread 1½ ,NPT, Universal Flange |
| Measurement Accuracy |
± 5mm |
| Display | LCD, Programmable |
| Material |
Antenna :PTFE |
| The seal between the shell and the shell cover: Silicone rubber | |
| Casing window: Polycarbonate | |
| The ground terminal: Stainless Steel | |
| Housing : Aluminum / Stainless steel | |
| Cable parameters | Cable entrance / plug: 1 M20xl.5 cable entrance ;1 blind plug |
| Terminal : Conductor cross section 2.5mm² | |
| Power Supply： | 2-wire（DC24V）/ 4-wire（DC24V /AC220V ） |
| Output signal | 4… 20mA / HART (2-wire / 4-wire ) |
| RS485/ Modbus | |
| Blind area | the ends of the antenna |
| Maximum measuring range | 20m |
| Pressure | -0.1-0.3MPa |
| Adjust time | about 1 second (depending on the parameter settings) |
| Explosion-proof Grade | ExiaⅡC T6 Ga / Exd ⅡC T6 Gb |
| Process temperature | -40℃~130℃ the temperature of the antenna part |
| Working & Storage Temperature | (-40～100) ℃ |
| The instrument is preferably installed at 1/4 or 1/6 of the diameter of the tank. 1. datum2. The container center or axis of symmetry Note: The minimum distance from the tank wall should be 200mm. |
 |
| The top conical tank level, can be installed at the top of the tank is intermediate, can guarantee the measurement to the conical bottom. |  |
| Typical installation errors: Conical tank cannot be installed above the feed port.
Note: outdoor installation should adopt sunshade. 1. Correct 2. Error rainproof measures |
 |
| There are obstacles affecting measurement needed reflection plate.
1. Correct 2. Error |
 |
