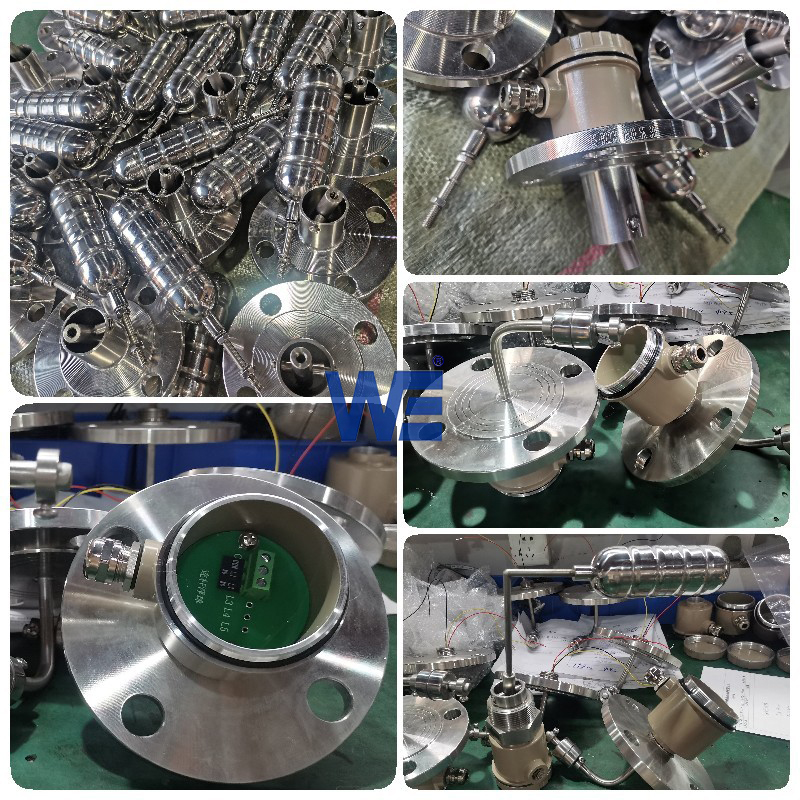

Side Mount Level Switches
The side mount level switch works on the principle of float and magnetic effect. Wepower Electronics Supply side mount level switches have been around for many years and we guarantee decent quality at very competitive prices.
Features Of Side Mount Level Switches:
For high- and low-level liquid control, the Side Mount Level Switch is a cost-effective and dependable point level switch. A practical ON-OFF switch sensor for determining the liquid level in a tank or container is a side mount level switch. This float side mount level switch is better suited for tiny tanks, irregular tanks, and tanks with partial agitation than the traditional rod type float level switch. For many years, Wepower Electronic has been dedicated to the subject of liquid level measuring. Numerous industrial demands can be satisfied by this side mount level switch. Please get in touch with us.
Working Principle Of Side Mount Level Switches:

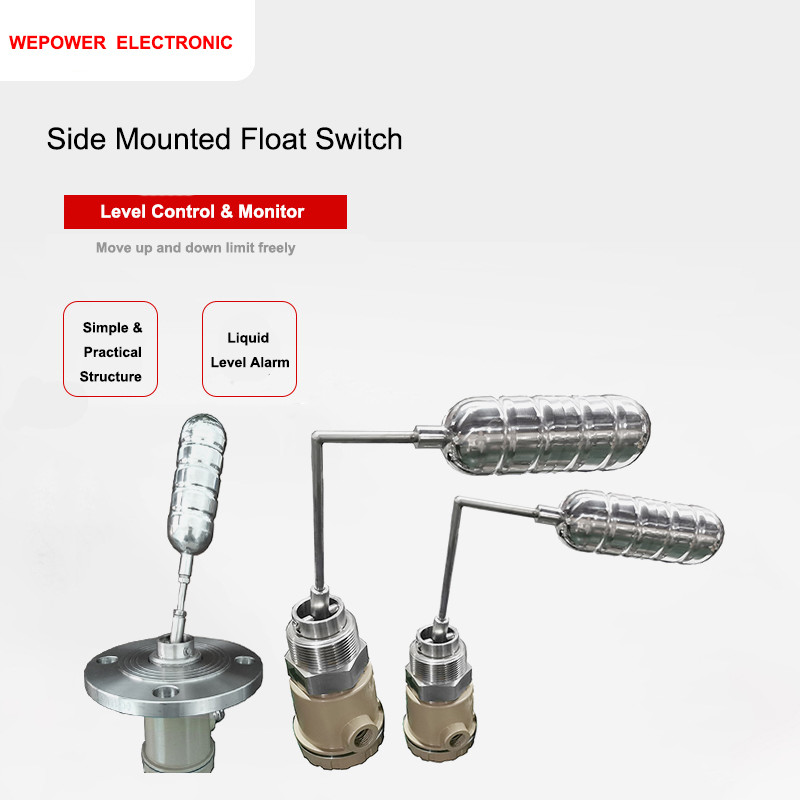

The Side Mounted Float Switch is based on the buoyancy principle. Wepower side mount level switch is composed of concise wire structure and small-sized rod type float. The magnetic reed switch in the wire box and the magnet in the rod contact or disconnect to output ON and OFF switch signals.
| Product | Side mount level switch |
| Model number | WPS series |
| Measuring media | Liquid (diesel, base oil, water, chemical solution, chemical reagent, LPG etc) |
| Wiring box | ABS aluminum |
| Output contact | 5A/220VAC |
| Contact form | SPDT（IC） |

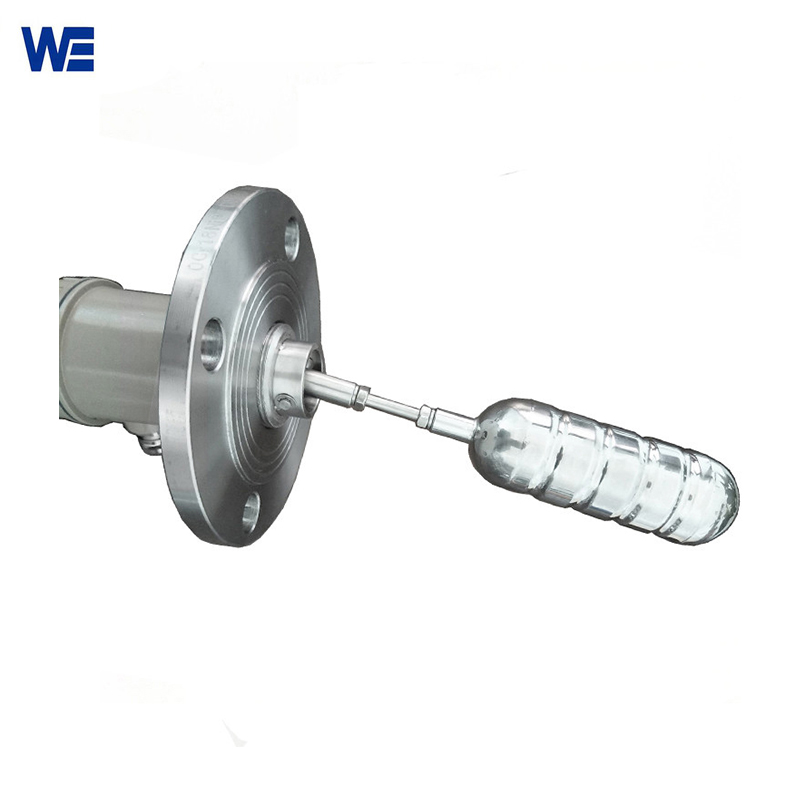

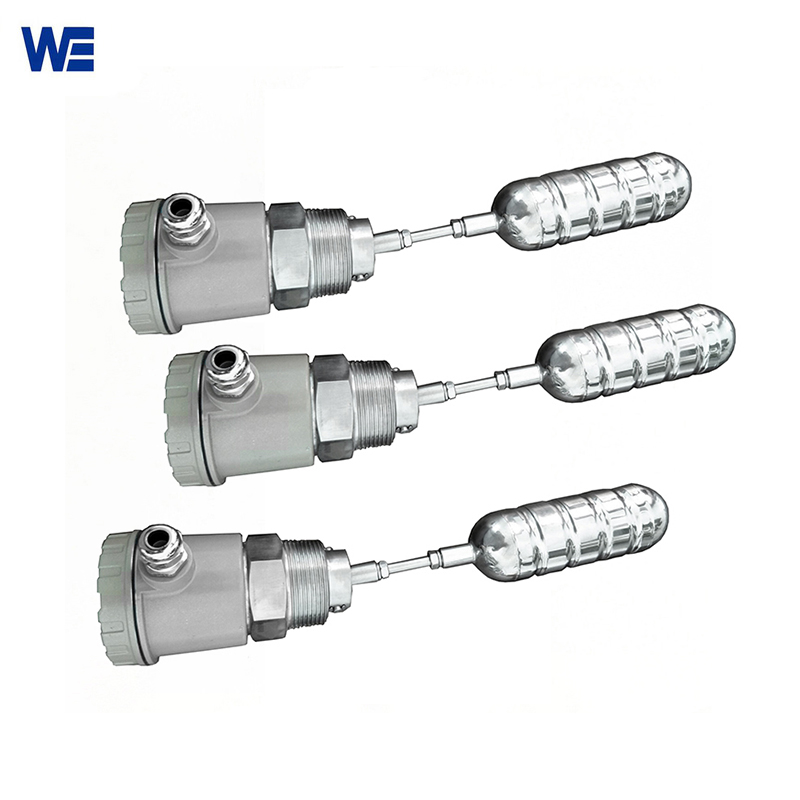

| Type | Side-mounted threaded/flange type and top mounted threaded/flange type |
| Operating pressure | 15bar (side mounted)~ 30bar (special customization) |
| Operating temperature | -20~200°C , support high temp type |
| Wetted material | SUS304/316 |
| Applicable specific gravity | 0.65 side mounted /0.55 top mounted |

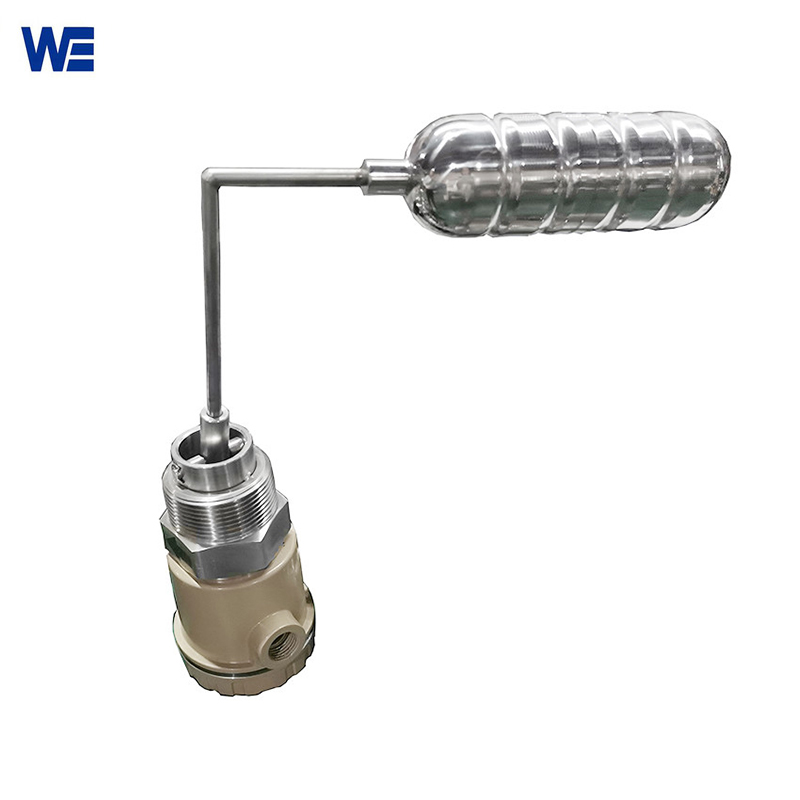

| Probe/Rod | Straight(standard) / L-shaped type |
Dimension:
Installation:
