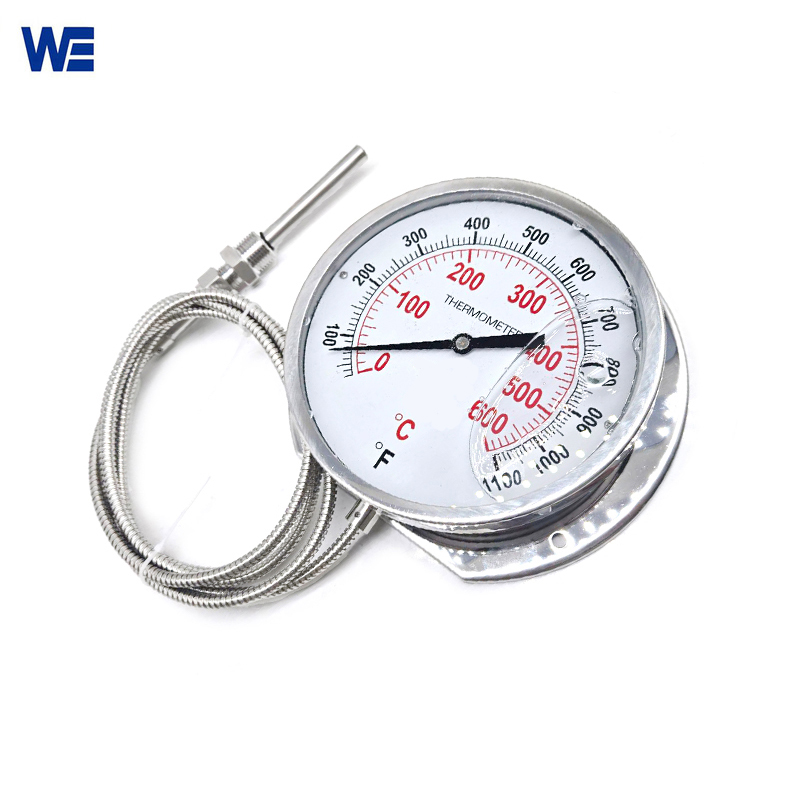

Silicone Oil-Filled Thermometer
A type of pressure thermometer, this silicone oil-filled gauge is made up of a capillary stem, an oil-filled glass pane, and a stainless steel casing. WEpower thermometers are produced using top-notch machinery under stringent quality supervision. It can withstand hostile environments and corrosive media in addition to being appropriate for measuring and controlling liquids and gases.
What are the advantages of Wepower brand silicone oil-filled thermometer?
- High sensitive temperature sensor
The silicone oil-filled thermometer is equipped with more sensitive and flexible temperature, which drives the dial indicator point the correct value of the substance you measuring when gas in tube heated.
- Silicon oil filled to absorb shock
WEpower gas actuated temperature gauge has the advantage to bear high pressure and shock environment with silicone oil filled in the dial indicator, ensuring the accuracy of the pointer.
- Stainless steel case and stem
Made from stainless steel 304/316, temperature reading gauge have the advantage of anti-corrosion and water-proof, when you need to measure corrosive media’s temperature, it is also suitable for you.
- Strict quality control and mirror-polished surface
Under scientific managing mode and rigorous quality inspection, our every temperature gauge is perfect and flawless. What’s more, high grade mirror-polished surface looks great and feels smooth, so it is really fit to be installed on your high-end device.
PRODUCT FEATURES
- Measuring range from 0℃ to 600℃
- Stainless steel materials
- High sensibility and flexibility
- Exquisite mirror-polished surface
- Anti-corrosion and water-proof
- Reliable for long time usage
- Precise glass dial indicator
| Product Name | Silicone Oil-Filled Thermemeter |
| Temperature Range | -30…+60,0…100,0…120,0…160,0…200,0…300,0…350,0…400,0…500,0…600 |
| Material | Stainless Steel 304/316 |
| Accuracy | 1.5% Of Range |
| Diameter Of Dial Indicator | φ100mm;150mm;75mm;63mm |
| Capillary Material | SS304/SS316 |
| Probe Diameter | φ6, φ10, φ12 |
| Process Connecting Method | Without Fixed
Movable Thread Outer Movable Thread Inner Fixed Thread Fixed Flange Adjustable Thread Adjustable Flange |
| Thread | M16X1.5; M27X2; G1/2; G3/4; M33×2 |
| Direction | Axial/Radial |
| Contact Type
(For Electric Contact Type): |
No,Nc,Nono,Ncnc,Nonc,Ncno,Spdt |
