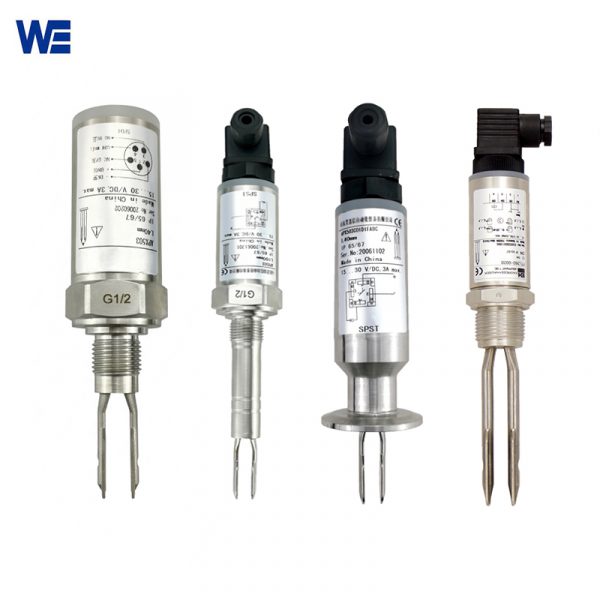

Tuning Fork Type Level Sensor

Working Principle Of Tuning Fork Type Level Sensor:

Tuning Fork Type Level Sensor causes the vibration of the piezoelectric crystal to cause its vibration. When subjected to material damping, the amplitude is sharply reduced and the frequency and phase change significantly. These changes are detected by the internal electronic circuit and are processed. , Convert to switch signal output. The tuning fork type level sensor switch can measure a variety of levels, has high/low fail-safe limit switches, overflow or dry running protection, pump control, and displays the presence/absence of flow in the pipeline.

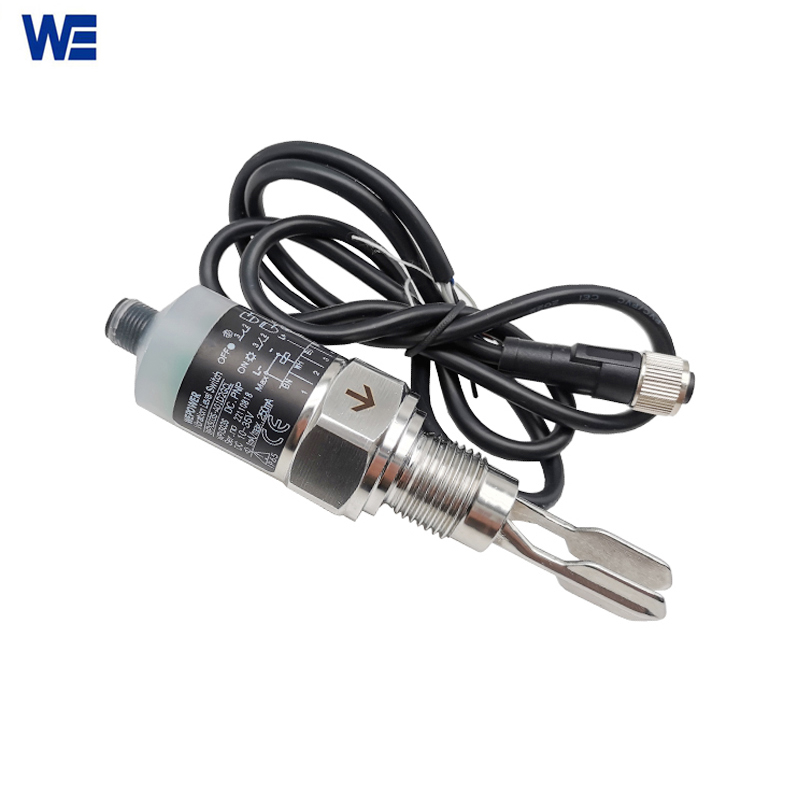

Vibrating Level Switch is suitable for chemical, pharmaceuticals, feed, environmental protection, water treatment and other manufacturing and processing industries.

Features Of Tuning Fork Type Level Sensor:

• With automatic learning function, through the button, without calibration;
• All metal structure, strong and durable; Not moving parts, maintenance-free;
• The fork body has a large vibration amplitude, which can reach more than 10mm, which can shake off the low-viscosity local hanging material on the induction rod to prevent mis-operation;
• Compact type , small product dimension with light weight, much popular for the places with limit installation space;
• Run a real impact by free flow, turbulence, bubbles, foam, vibration, solids content, coating, liquid properties and product changes;
• Do not require calibration and installation procedures;
• Polarity insensitive and short circuit protection;
• The use of industry-standard plug / socket connector

Dimension & Wiring
