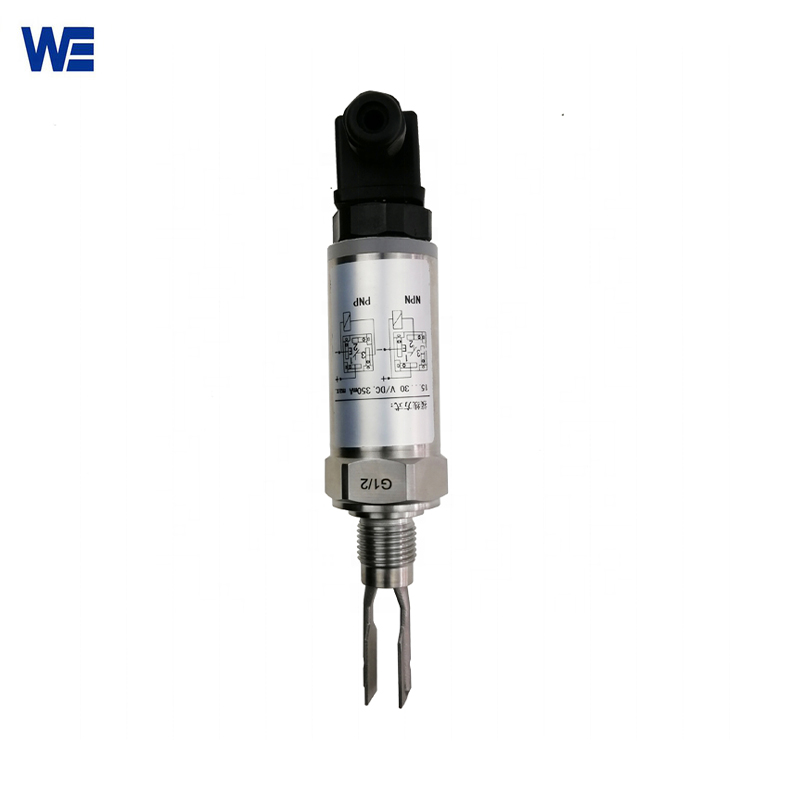

Vibrating Level Switch For Liquid
This vibrating level switch for liquid is suitable for almost all liquid media, even challenging liquids. Vibrating level switches are widely used in process control of level in metallurgy, building materials, chemical industry, light industry, grain and other industries.
Â
Advantages Of Vibrating Level Switch For Liquid:
This Vibrating Level Switch For Liquid is suitable for almost all liquid media, even challenging liquids, including sewage with layers, and industrial liquids such as hydrochloric acid and sodium hydroxide. The detection process is not affected by the electrical parameters and density of the measured medium, and does not require on-site adjustment. The Vibrating Level Switch For Liquid has a self-diagnostic function and can accurately and reliably locate fault information.
If you are a mud factory, beverage factory, pharmaceutical factory, winery, etc., you can purchase our vibrating level switch for trial. The vibrating level switch for liquid produced by Wepower Electronic have stable quality and excellent service, and there have been no after-sales problems so far.
| Model | WPX501/503/504 |
| Measure Medium | Liquid |
| Accuracy | ±2mm |
| Vibrational Frequency | 350/1000HZ |
| Measuring Length | 40-1000mm |
| Ambient Temperature | -30-80℃ |
| Operation Temperature | -30-150℃ |
| Repeatability | ±2mm |
| Indication Method | LED |
| Power Supply | 24V DC |
| Power | 1 W |
| Signal Output | SPDT/PNP/NPN/NAMUR |
| Maximum Load | SPDT(5A); PNP/NPN(350mA) |
| Body Material | Stainless steel |
| Pressure Range | -98KPa-3MPa |
| Wetted material | SS304/SS316 |
| IP Grade | IP67 |
| Process Connecting | Thread, Tri-clamp |
| Electrical Interface | Hersman Joint / Aviation Joint |
Wepower Electronic – Your Reliable Level Measurement Solution Provider ,Offer Other High Quality Automation Instruments Too!
