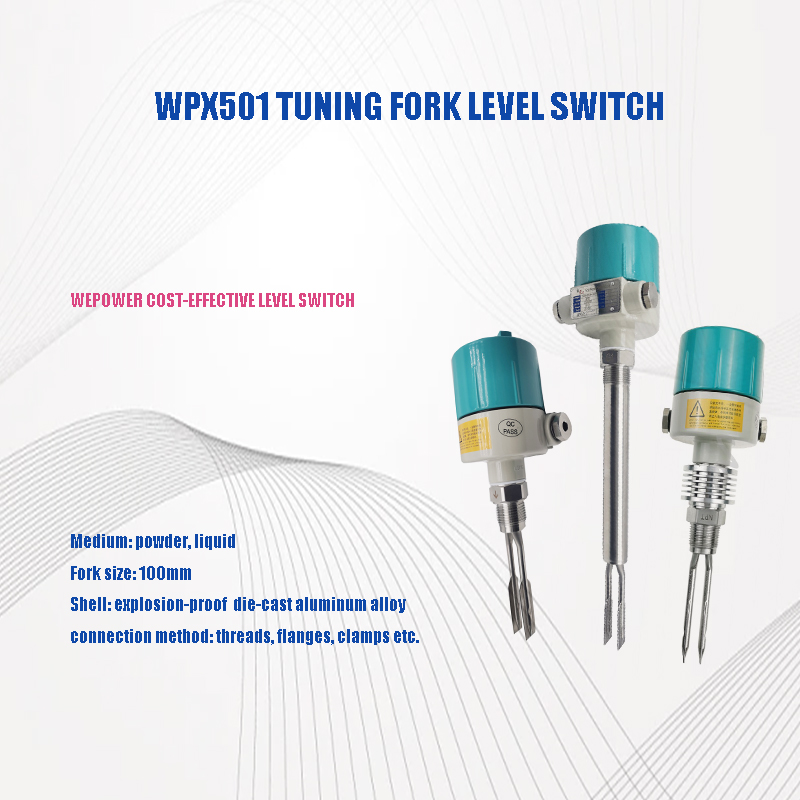

Vibrating Fork Type Level Switch

Advantages Of Vibrating Fork Type Level Switch:

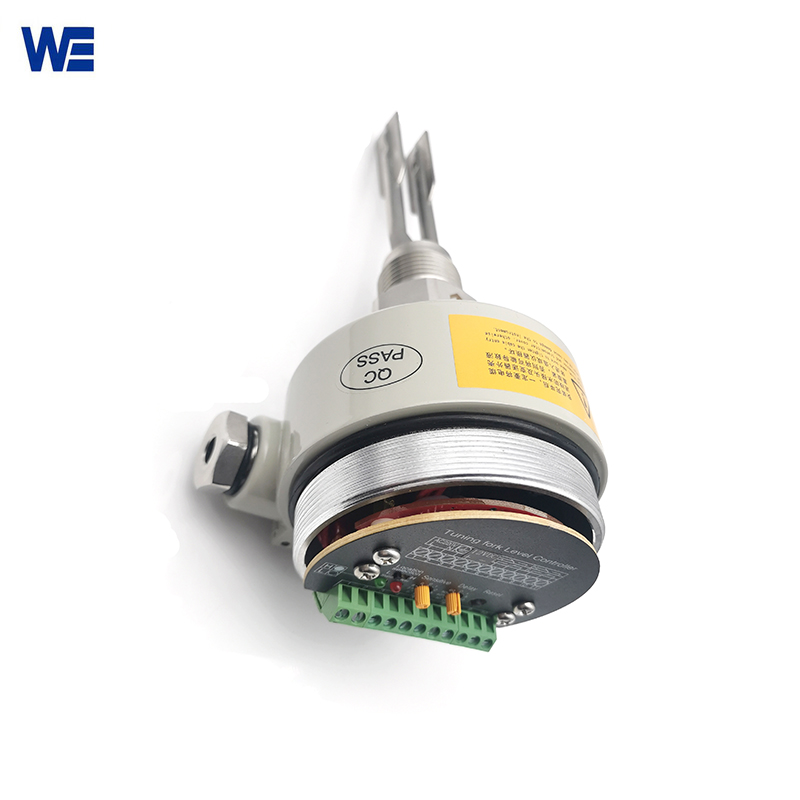

A liquid level detection device with good performance and low cost is the Vibrating Fork Type Level Switch. First of all, the vibrating fork type level switch has an aluminum die-cast shell that is resistant to oxidation, waterproof, and explosions. The wiring board of the vibrating fork type level switch is also well-designed, with a sensitive tuning fork and a high-quality circuit board.

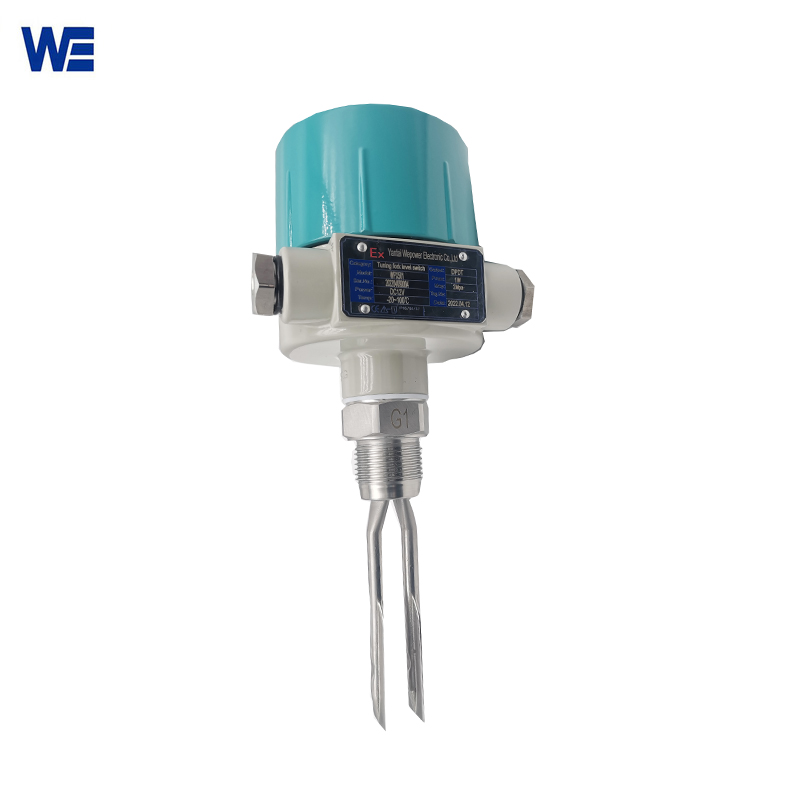

Vibrating Fork Switch is perfect for medium leak detection as well as high and low level detection. Due to their longevity and invulnerability, the WPX501 vibrating fork type level switches are very popular. The vibrating fork type level switch can withstand long-term high temperature measurements and scarcely reacts with the measured medium.

What Are The Precautions For Installing A Vibrating Fork Type Level Switch?

• Before installation, it should be noted that the user should ensure that the working conditions of the operation site meet the measurement conditions. The user should confirm the ambient temperature, process pressure, process temperature, properties of the measuring medium, etc.
• The installation angle and installation position of the vibrating fork type level switch are very flexible. WPX501 Vibrating fork type level switch can be installed horizontally, vertically or inclined at any angle.
• In terms of the installation direction, the user should ensure that the fork surface of the vibrating fork type level switch should be consistent with the direction of the liquid flow (liquid up and down in the tank), in other words, the liquid should pass through the position between the forks.
• Generally speaking, if the medium to be measured is relatively viscous, we recommend the user to install it vertically in the tank. Such an installation can reduce substances sticking to the fork.

Dimension

Installation Guidance
