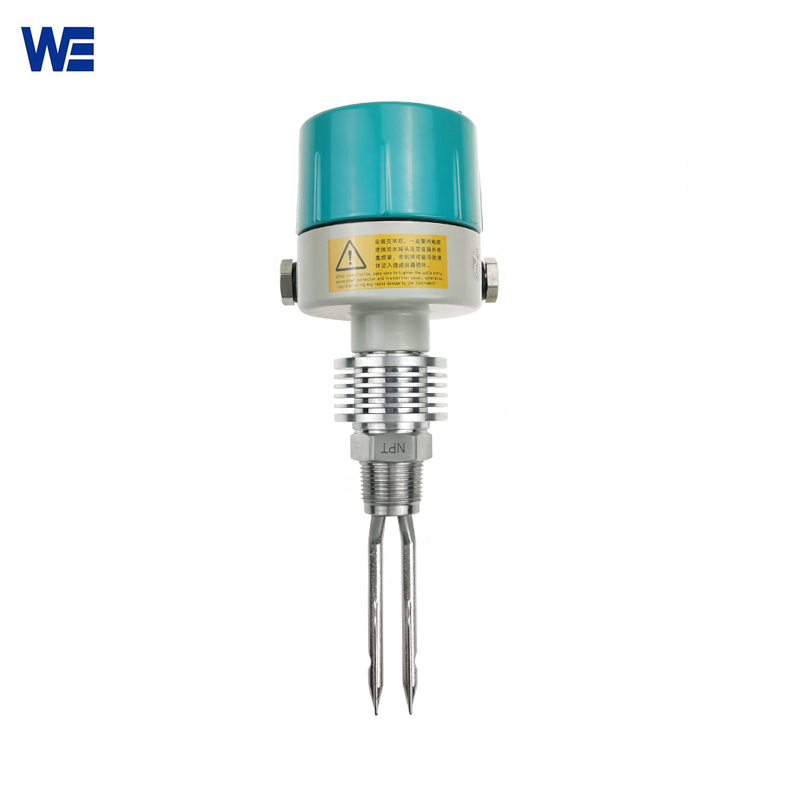

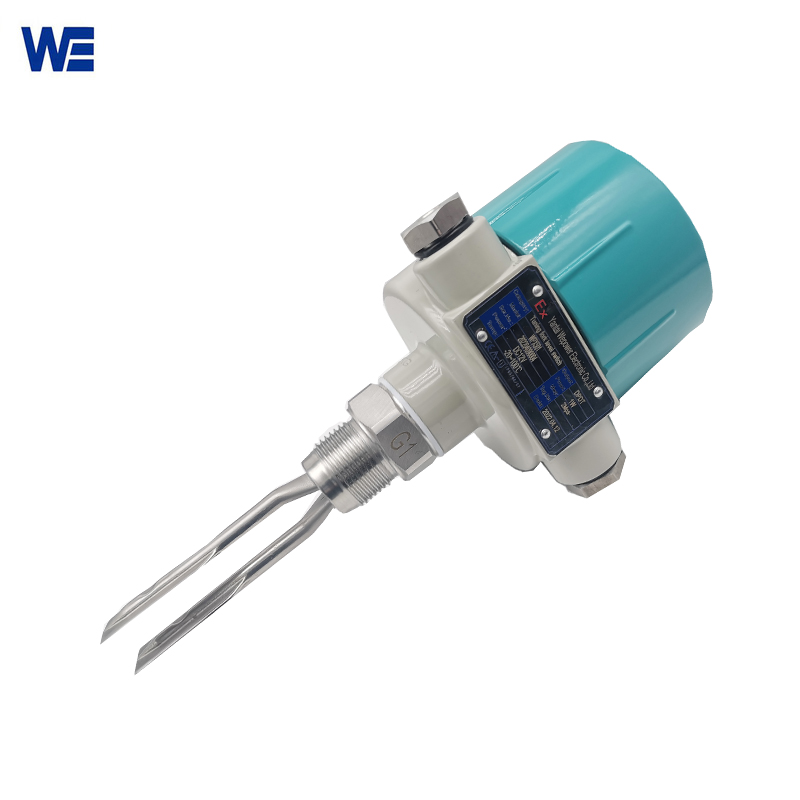

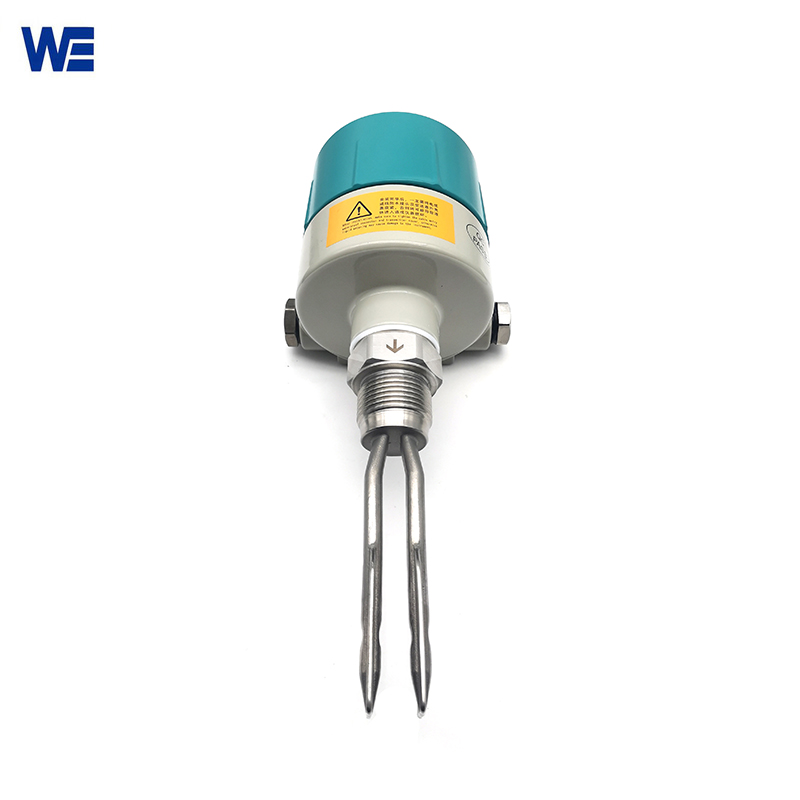

Top Mounted Tuning Fork Level Switch
Top Mounted Tuning Fork Level Switch is installed at the top of tank, it can detect and control the upper level of the tank medium, which is applicable to various liquids, powders and granular solids.
Top Mounted Tuning Fork Level Switches are typically positioned at the top of tanks. Top mounted tuning fork level switches are useful for a variety of liquids, powders, and granular solids and are able to detect and control the upper level of the tank medium. It serves as a useful overflow protection mechanism or high level alarm.
The side mounting method is generally used to find the material level’s upper and lower limit points on the tank body’s side wall. The top mounted approach can be utilized for installation when it is inconvenient to open holes on the side of the warehouse body. The position can be set on the pipeline to stop the pump from operating without material, or it can be chosen to minimize the impact of materials feeding.
| Medium | liquid, powder or granular solid |
| Measured medium density: | solid ≥0.1g/cm³ Liquid ≥0.7g/cm³ |
| Measured solid particle size: | ≤10mm |
| Maximum liquid viscosity: | <1000mm2/s |
| Measured medium repose angle: | ≥200 |
| Temperature: | Medium temperature range: -20°C～150°C |
| Ambient temperature: -20°C～80°C | |
| Environmental humidity: | ≤95%RH |
| Pressure range:: | ≤1MPa |
| Product Material: | Housing Material: Die Cast Aluminum Alloy |
| Fork body material: SS304/SS316 | |
| Explosion-proof grade: | DIIBT4 |
| Housing protection class: | IP65 |
| Process Connection: | 1″ NPT thread; Flange (user selected) |
| Supply voltage: | DC24V; AC220V 50HZ |
| Output signal: Relay output: | 5A 220VAC ; 3A 24VDC |
| Power consumption: | ≤ 2W |
| Vibration frequency: | 300±50Hz |
| Environmental vibration level: | V.L.4 acceleration is less than 1 |
| Switch signal action time: | 1-60S |

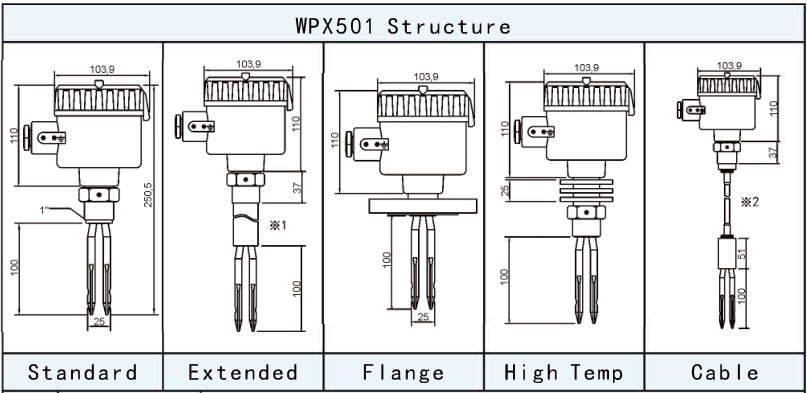

Product Dimension
Wiring
