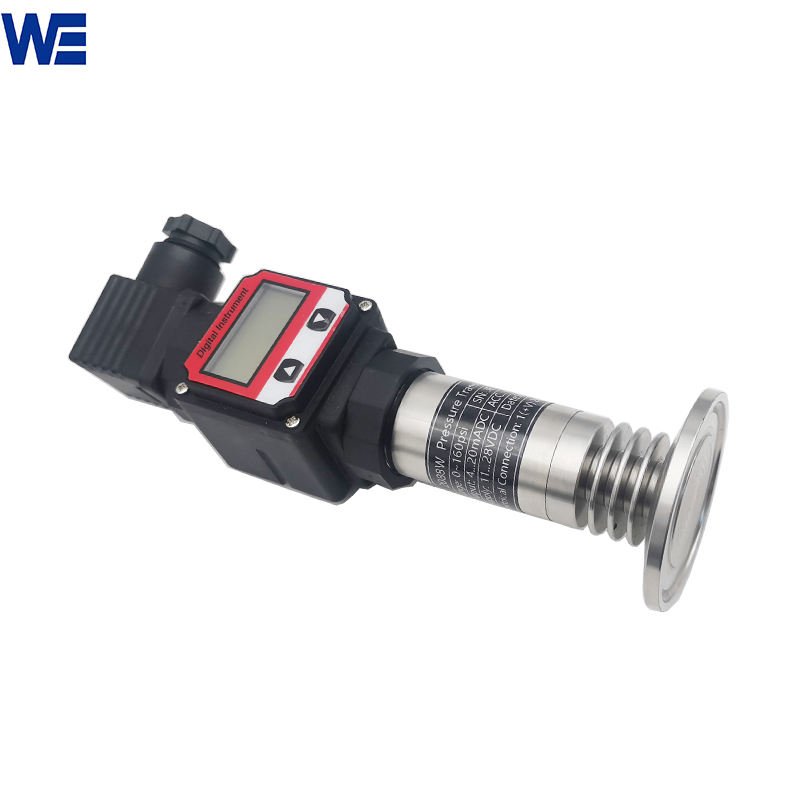

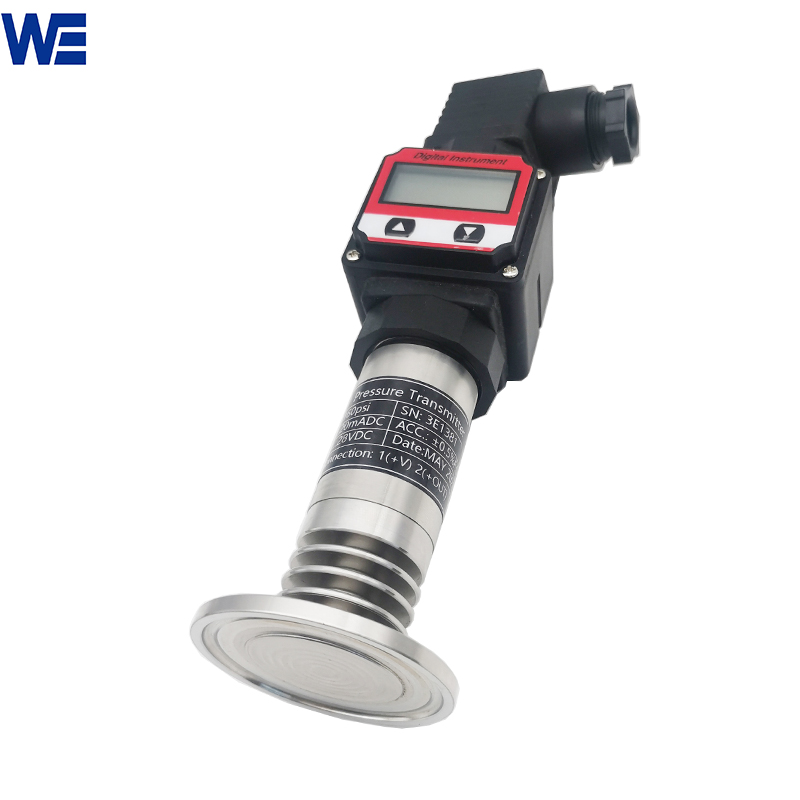

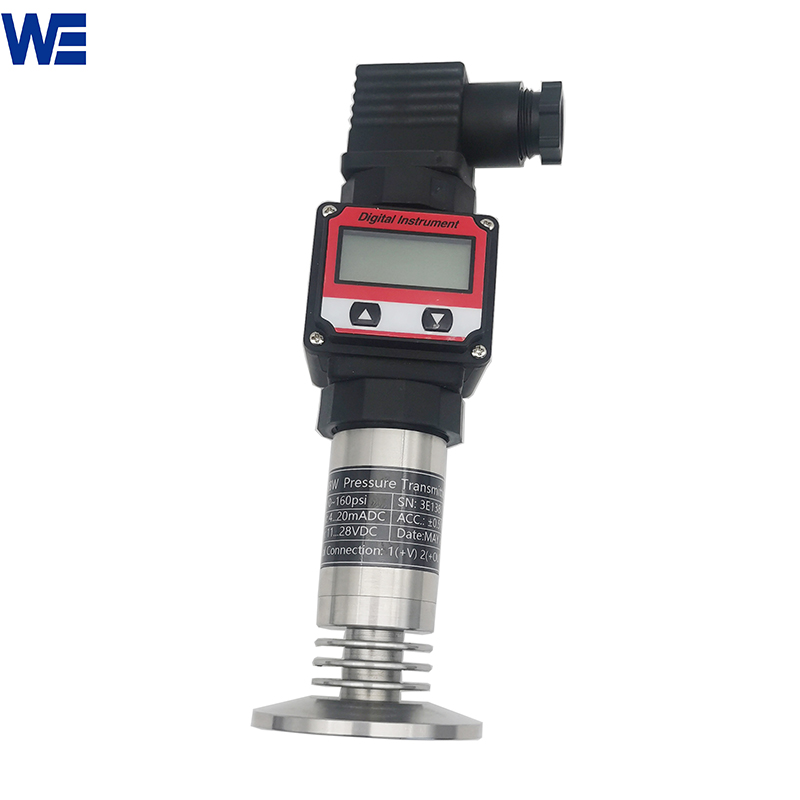

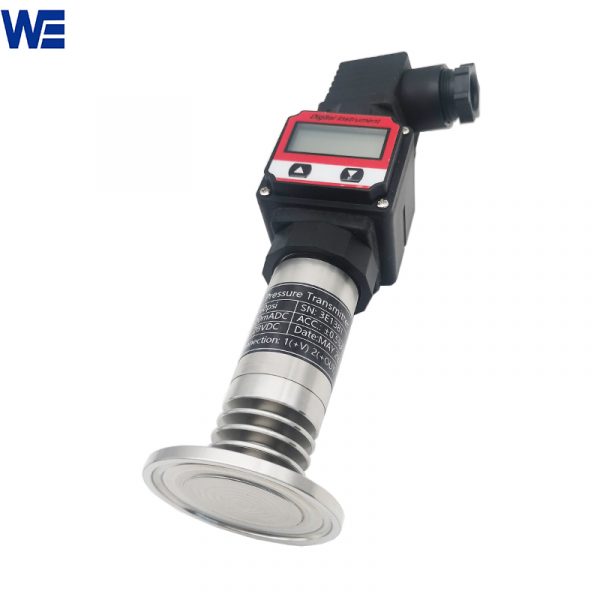

Sanitary Pressure Transducer
Wepower 2088W sanitary pressure transducer has an isolated diaphragm with welded sealing. Our sanitary pressure transducer can measures high temperature, high viscosity, and crystalline medium very accurately. 2088W sanitary pressure transmitter adopts a stainless steel all-round sealing mechanism without a dead angle, making it difficult for dust to enter the measuring area.
  2088W Sanitary pressure transducer /Transmitter can be implemented not only in food, beverage, pharmaceutical, and other disciplines, but also in thermoelectric, metallurgy, mechanical, light industrial, hydraulic, marine, diesel engine, and other industries. Sanitary pressure transducers have great measurement accuracy and are long-lasting and wear-resistant.This compact dimension sanitary pressure transmitter has strong temperature compensation performance and uses fully sealed welding technology with high protection level to ensure the measurement environment is clean and hygienic. WE2088W hygienic pressure transducer is superior to other small pressure transducers in terms of measurement effect and measurement accuracy.
The sensor and the process connection are the two primary components of the WE2088W sanitary pressure transducer/transmitter. Customers can select a setup with or without a display screen based on their requirements. Process connection options available to users include external screw connection, sanitary clamp connection, unique requirements, and so on.
| Product Name | Sanitary pressure transmitter, Hygeian pressure transmitter, Sanitary pressure transducer |
| Model | 2088W |
| Sensor Type | Diffusion Silicon |
| Pressure Type | absolute pressure and gauge pressure |
| Accuracy Class | 0.2%, 0.5%grade |
| Explosion-proof type | General type, Exd II C T6 Gb, Exia II C T6 Ga |
| Process interface type and size | M20x1.5 male thread, G1/2” male thread, G1” male thread, clamp type, special sizes |
| Wiring | M12; Hersman; wiring terminal (aluminum housing) |
| Media diaphragm material | SS316L, Hastelloy C, Monel, special materials |
| Temperature Type | Normal temperature, low to medium temperature (80-150°C), high to medium temperature (150-250°C), high temperature (250-315°C), special specifications |
| Electrical interface | M20x1.5, 1/2 NPT, G 1/2”, special specifications |
| Output signal | Normally 4-20mA, with meter head type can output HART protocol |
| Operating power | 24V DC, 220V AC, special specification |
| Display | LCD or without display |
‌ Pressure measurement plays a vital role in industry, which is directly related to the stability, safety and efficiency of industrial production. Wepower Electronic is your reliable pressure measuring expert, contact us for learn more!
