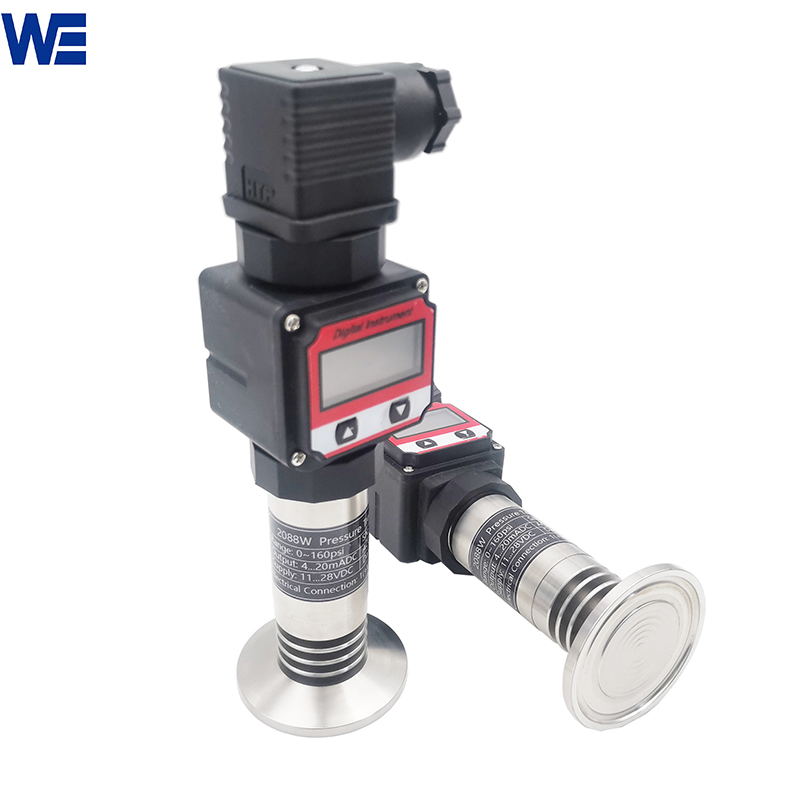

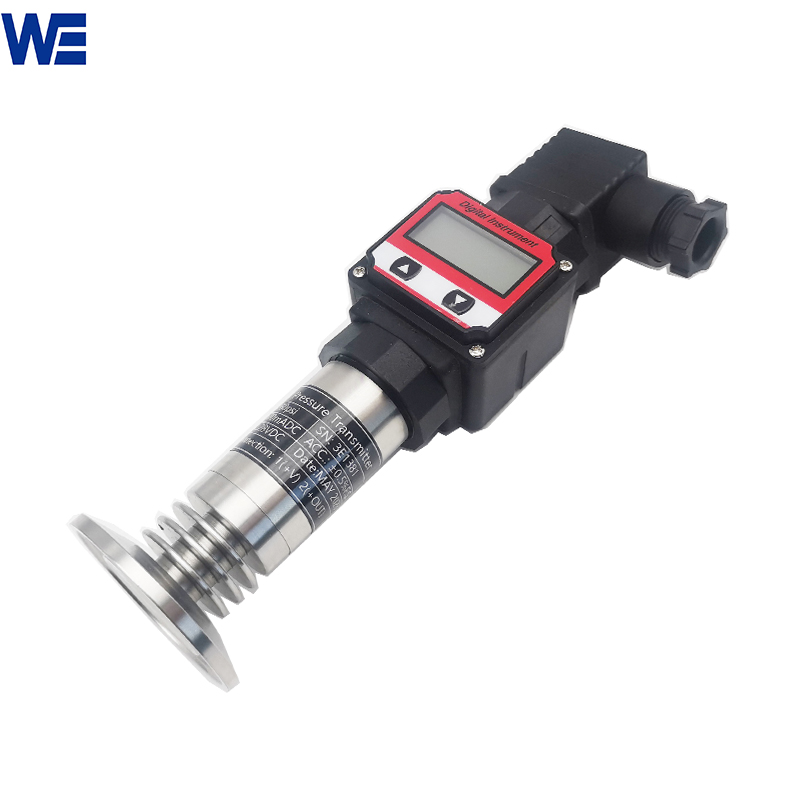

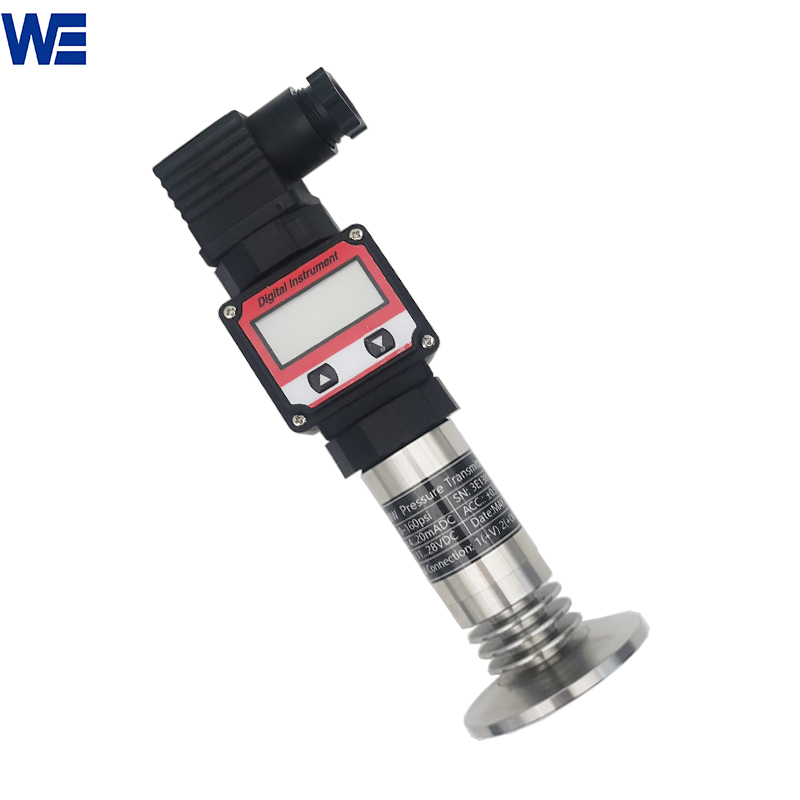

Digital LCD Pressure Sensor
Digital displaying LCD/LED pressure sensor, using piezoresistive principle which can directly sense the pressure for oil, water, gas, etc. Our pressure sensor is less affected by air bubbles and deposits with high precision, high stability, the exquisite design for more installation convenience.
Silicon Digital LCD pressure sensor, using piezoresistive principle. LCD/LED pressure sensor can directly sense the pressure exerted by the measured medium (oil, water, gas), and the LCD pressure sensor is less affected by air bubbles and deposits. The pressure sensor with LED/LCD display has high precision, high stability, Exquisite shape, light weight features.

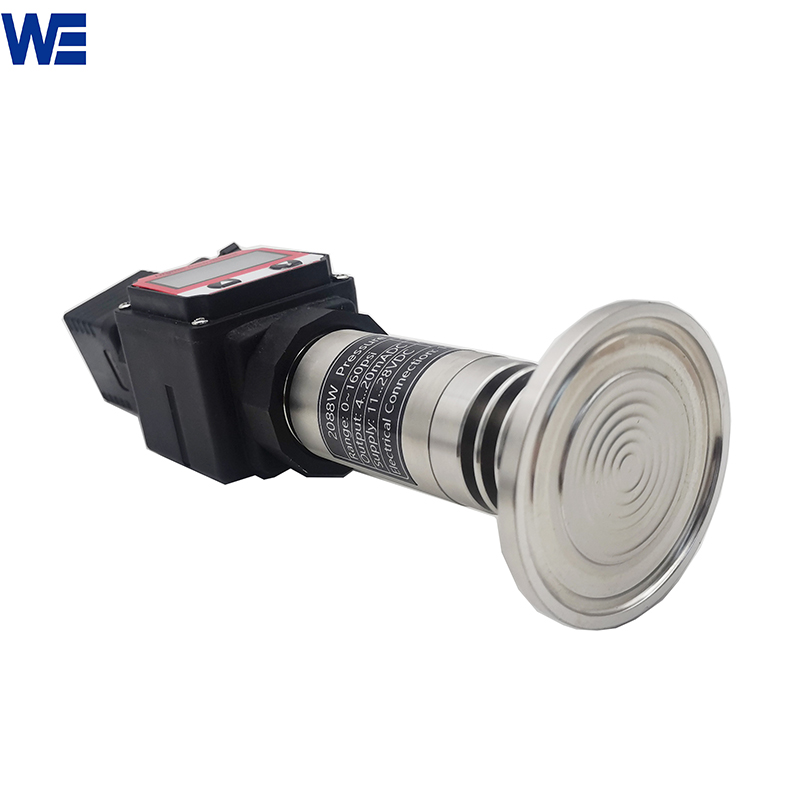

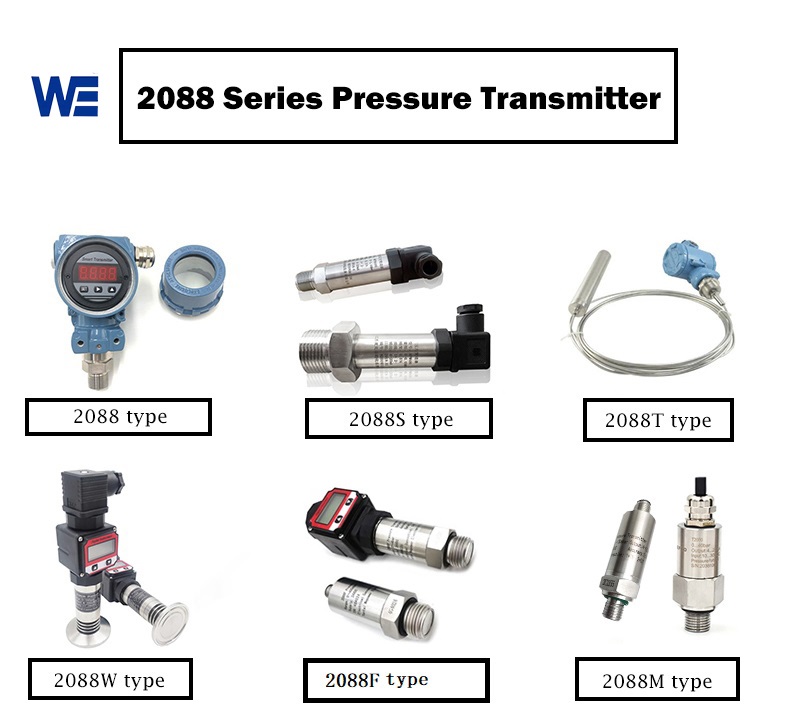

LCD/LED digital pressure sensor is resistant to corrosion; its diaphragm/wetted section is made of 316L material, and its shell is made of stainless steel 304. It may be used in temperatures ranging from -30 to 80 degrees Celsius. Wepower can also design an LCD or LED pressure sensor that is appropriate for high temperatures based on the measurement environment used by the customer. One of the primary functions is to simultaneously measure the pressure and output a 4–20 mA signal. The field of health and hygiene mostly uses the 2088W digital displaying pressure sensor, a compact pressure transmitter with an easy-to-clean tri-clamp process connection that helps prevent hygiene dead spots.
| Name | Digital displaying compact pressure sensor |
| Measurement Range (kPa) | -100kPa…0～10kPa…100MPa |
| Measuring medium | Liquid, gas |

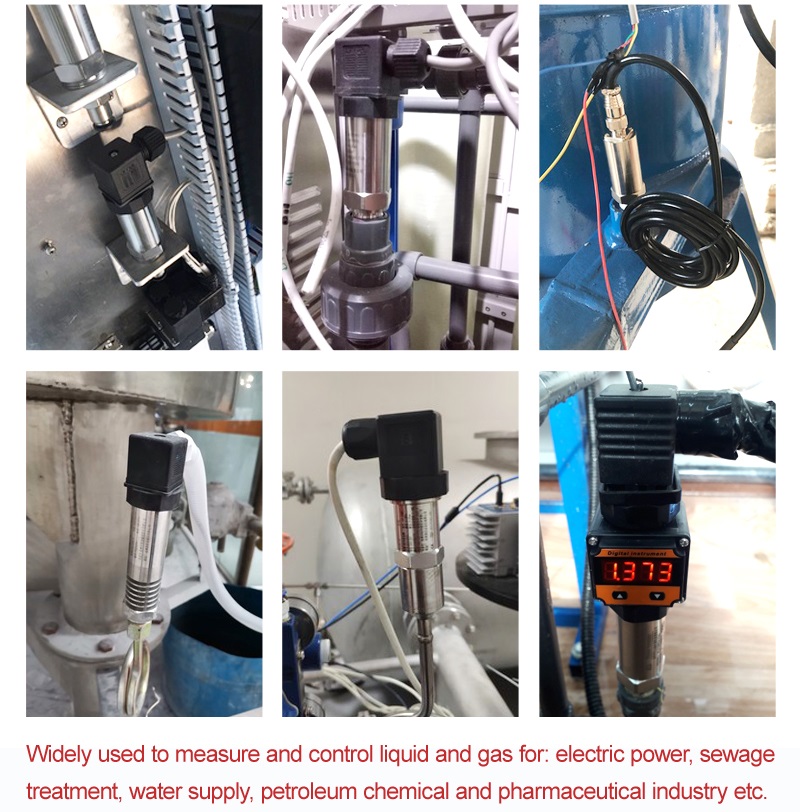

| Application | Process, compressed air system, edible liquid/oil field |
| Accuracy | 0.25%, 0.5% |
| Ambient temperature | -10℃-70℃ |
| Medium temperature | -40-80°C; -40.-315°C |
| Diaphragm | To order |
| insulation | 100MΩ/250VDC |
| Pressure overload | 150%FS |
| Power supply | 24VDC |
| Output | 4～20mA, HART, MODBUS |
| Sensor filling oil | Silicon oil, fluorine oil |

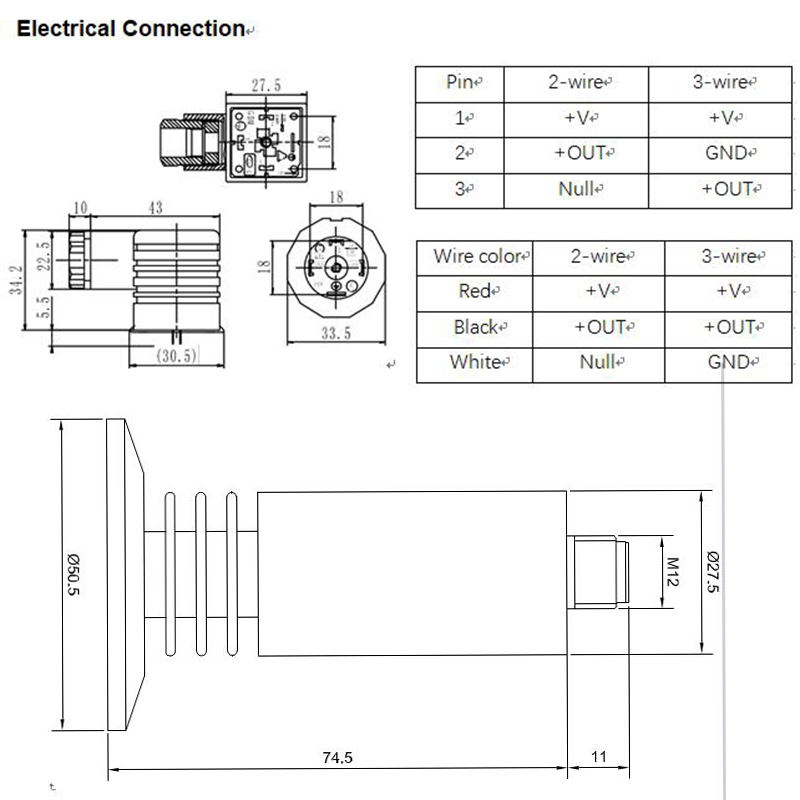

| Electrical connection | M20x1.5 cable sealing head, NPT1/2 cable sealing head |
| Electronic housing | Aluminum alloy with sprayed surface |
| High pressure side filling fluid | Silicon oil, fluorine oil |
| Protection grade | IP65 |
Pressure measurement plays a vital role in industry, which is directly related to the stability, safety and efficiency of industrial production. Wepower Electronic is your reliable pressure measuring expert, contact us for learn more!
