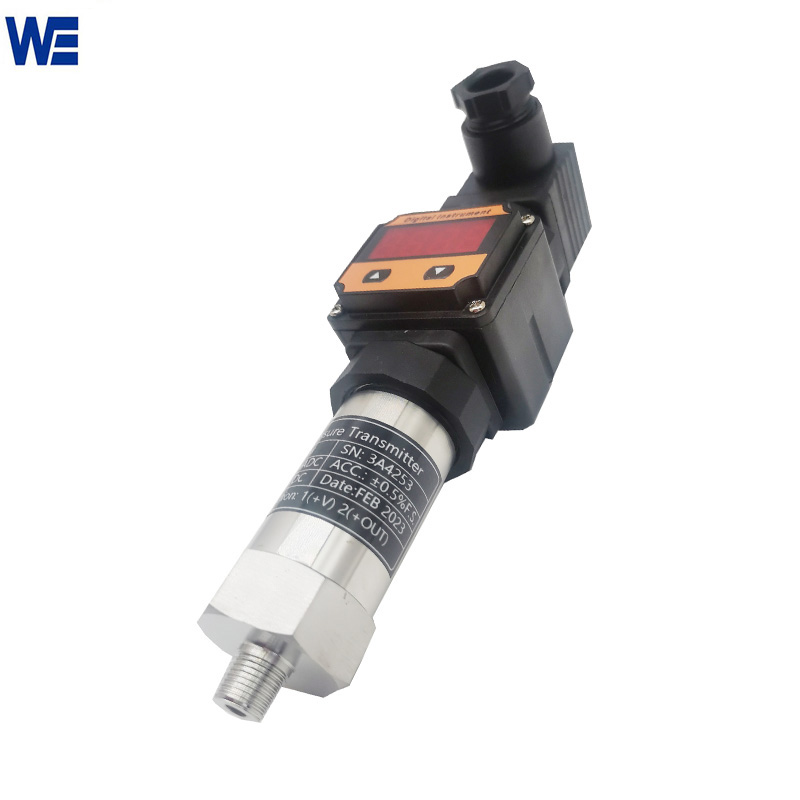

Digital Compact Pressure Transmitter
Pressure measurement plays a vital role in industry, which is directly related to the stability, safety and efficiency of industrial production. 2088S compact pressure transmitter in the automatic control system can measure the pressure change of liquid, gas or steam in real time to achieve the purpose of pressure detection and control.
Digital compact pressure transmitter can accurately measure gauge and absolute pressure in a variety of liquid/gas applications. The accuracy of OEM pressure transmitter is adjustable, with 0.25 and 0.5 options. 2088S digital compact pressure transmitters use dust-proof and splash-proof Hirschmann connectors, which make the wiring of compact pressure transmitter is stable and does not fall off. Wepower Electronic has been providing OEM services for many years, serving the automation needs of many regions and industries. We have well-established, highly skilled factories in China that produce high accuracy automation instruments.
| Name | Digital compact pressure transmitter-2088S |
| Measurement Range (kPa) | -100kPa…0～10kPa…100MPa |
| Measuring medium | Liquid, gas |
| Application | Process, compressed air system, edible liquid/oil field |
| Accuracy | 0.25%, 0.5% |
| Ambient temperature | -10℃-70℃ |
| Medium temperature | -40-120°C |
| Diaphragm | To order |
| insulation | 100MΩ/250VDC |
| Pressure overload | 150%FS |
| Power supply | 24VDC |
| Output | 4～20mA, HART, MODBUS |
| Sensor filling oil | Silicon oil, fluorine oil |
| Electrical connection | M20x1.5 cable sealing head, NPT1/2 cable sealing head |
| Electronic housing | Aluminum alloy with sprayed surface |
| High pressure side filling fluid | Silicon oil, fluorine oil |
| Protection grade | IP65 |
Pressure measurement plays a vital role in industry, which is directly related to the stability, safety and efficiency of industrial production. Wepower Electronic is your reliable pressure measuring expert, contact us for learn more!
