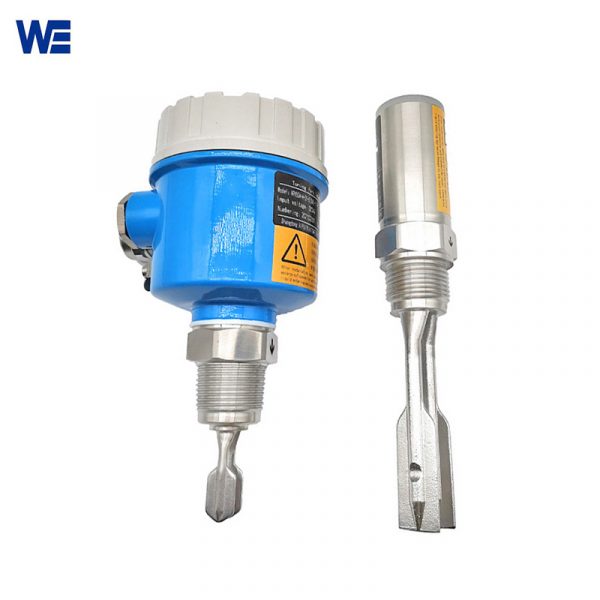

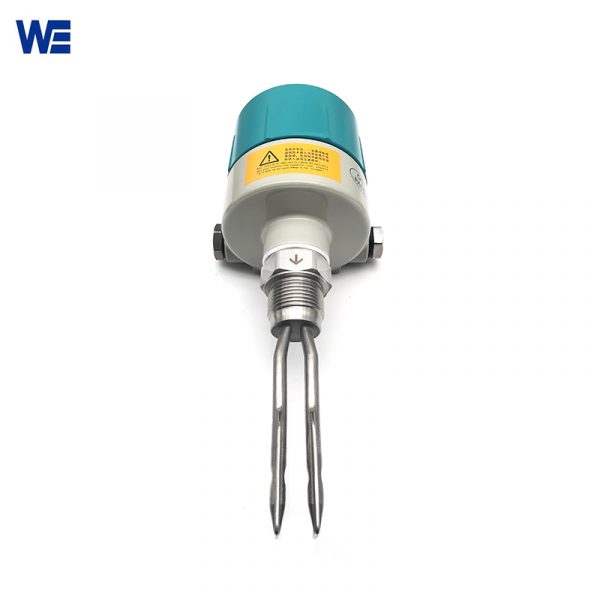

Vibration Type Level Switch
WPX Vibration Type Level Switch has no moving parts, so there is no need for maintenance and adjustment. It is an upgraded product of the float switch, which can alarm and control the upper and lower limits of the level.
WPX series Vibration Type Level Switch has no moving parts, so there is no need for maintenance and adjustment. The vibration type level switch is an upgraded product of the float switch, which can alarm and control the upper and lower limits of the level.
Features Of Vibration Type Level Switch:
- DPDT, multi-point control possible
- Low power consumption, power less than 1W
- Â AC and DC can be shared, wide voltage range (DC18V-50V, AC50V, 255V), suitable for various working conditions
- Multiple process connection methods are available for selection
- Do not calibrate, the installation process is simple
- Â LED indication for vibration type level switch, self-inspection and status monitoring
- Â A variety of electrical interface are available for users
- Different output signals (such as relays, PNP type, PFW) can maximize matching control systems
-  The highest temperature can reach 280℃
- The body of the vibration type level switch can be coated or polished
-
For corrosive liquid medium, PTFE coating on the wetted stainless steel part
| Product Name | Vibration Type Level Switch |
| Medium: | liquid, powder or granular solid |
| Measured medium density: | solid ≥0.1g/cm³ Liquid ≥0.7g/cm³ |
| Measured solid particle size: | ≤10mm |
| Maximum liquid viscosity: | <1000mm2/s |
| Measured medium repose angle: | ≥200 |
| Fork Length: | 40mm/100mm |
| Temperature: | Medium temperature range: -20°C～150°C |
| Ambient temperature: -20°C～80°C | |
| Pressure range: | ≤1MPa |
| Product Material: | Housing Material:Â Aluminum Alloy |
| Fork material: SS304/SS316 | |
| Explosion-proof grade: | DIIBT4 |
| Housing protection class: | IP65 |
| Process Connection: | 1″ NPT thread; 3/4″ thread, 1/2″ thread, G1″ thread etc Flange (user selected) |
| Supply voltage: | DC24V; AC220V 50HZ |
| Output signal: | Relay output: 5A 220VAC ; 3A 24VDC |
| Power consumption: | ≤ 2W |
