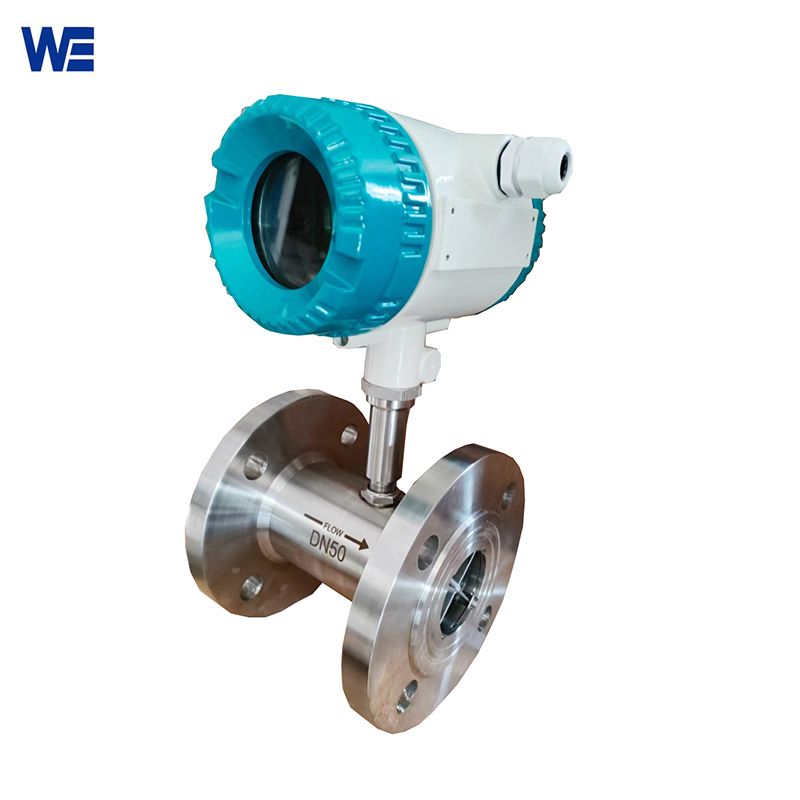

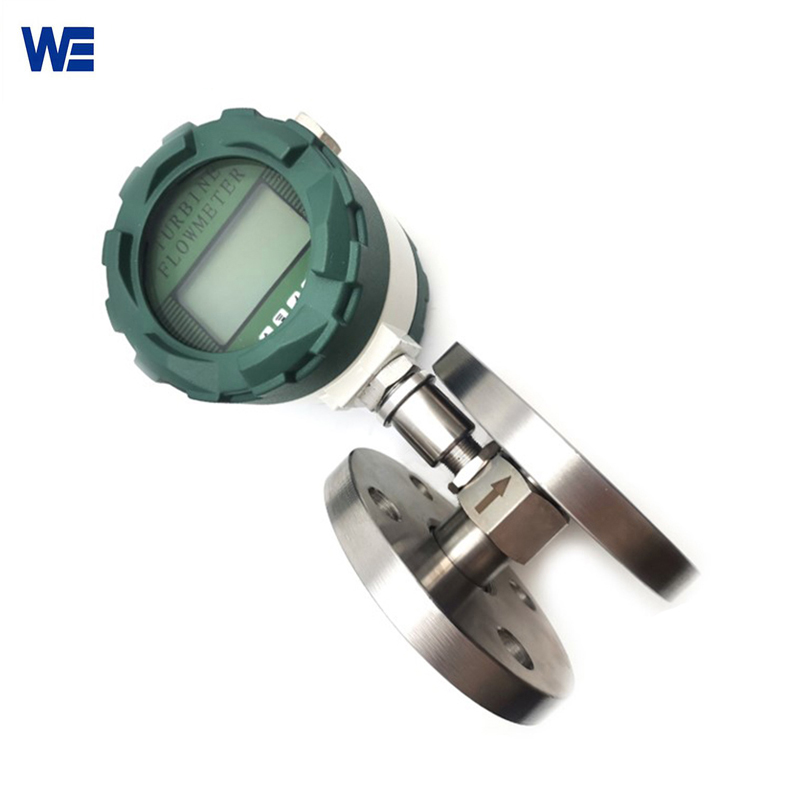

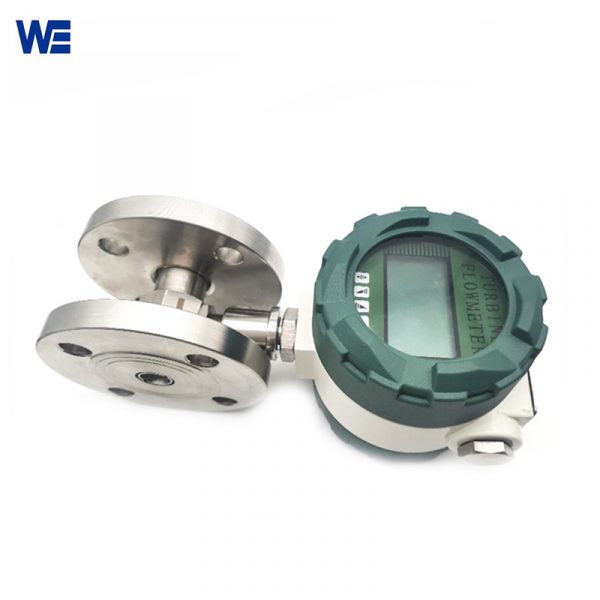

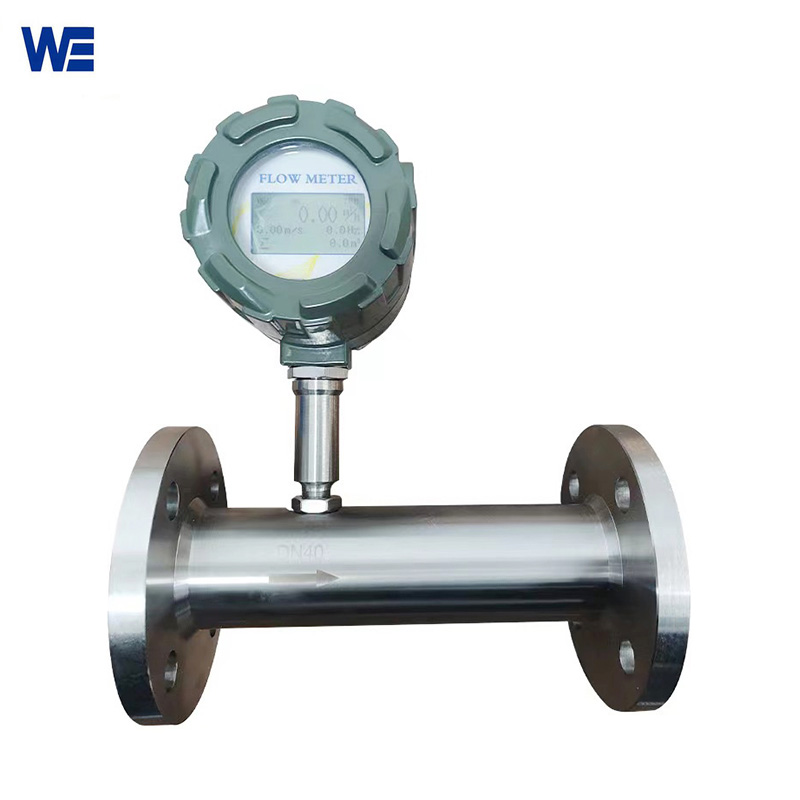

Turbine Water Meter
Turbine water meter is also called turbine water flow meter. Turbine water meter is a flow transmitter that measures “volume flow” by means of “rotation speed”. Turbine water meter satisfies multi-media measurement at various temperatures and pressure ranges, with high accuracy and good repeatability.
According to the structure of the turbine flow meter, the turbine flow meter can only be used to measure clean water (without impurities), cannot be used to measure waste water. And because the turbine water flow meter is light in weight and the installation structure is not complicated, it is widely welcomed in certain fields. Turbine water flowmeter measurement results are accurate. The turbine flowmeter can be installed with a “quantitative output system” to achieve high-precision quantitative filling operations. Turbine flowmeters are widely used in the field of agricultural production.
The turbine water flow meter comes in a variety of calibers. The turbine flow meter requires less installation environment, supports small-diameter production, can connect pipes and hoses, and if there is any problem in the installation process, you can contact us at any time.
| Measuring diameter | DN4-DN200 |
| Applicable media range | impurity-free, low viscosity, no strong corrosive liquid |
| Accuracy | 1% |
| Connection method | flange, thread, clamping |
| Medium temperature | -20°C~80°C |
| Nominal pressure | 1.6MPa、4.0MPa、6.3MPa、11MPa、15MPa、26MPa、42MPa |
| Precision class | 0.2, 0.5, 1.0, 2.5 |
| Signal output | Pulse, 4-20Ma, RS485, HART |
| Power supply | DC24V Meter head display 3.6V or DC24V+3.6V |
| Ambient temperature | -20°C~60°C |
| Relative humidity | 5%~90% |
| Meter body material | 304, 316L stainless steel |
| Protection class | IP65 |
| Explosion-proof grade | ExdIICT6Gb |
| Impeller material | 2Cr13 impeller |
| Pressure resistance grade | Duplex steel impeller |
| Diameter | Normal flow range（m³/h） | Extended flow range（m³/h） | Starting flow rate (m³/h) | Maximum pressure loss (KPa) |
| DN4 | 0.04-0.25 | 0.04-0.4 | 0.02 | 120 |
| DN6 | 0.1-0.6 | 0.06-0.6 | 0.05 | 80 |
| DN10 | 0.2-1.2 | 0.15-1.5 | 0.07 | 50 |
| DN15 | 0.6-6 | 0.5-5 | 0.35 | 35 |
| DN20 | 0.8-8 | 0.45-9 | 0.3 | 35 |
| DN25 | 1-10 | 0.5-10 | 0.4 | 35 |
| DN32 | 1.5-15 | 0.8-15 | 0.6 | 35 |
| DN40 | 2-20 | 1-20 | 0.6 | 35 |
| DN50 | 4-40 | 2-40 | 1 | 35 |
| DN65 | 7-70 | 5-70 | 4 | 25 |
| DN80 | 10-100 | 7-100 | 5 | 25 |
| DN100 | 20-200 | 10-200 | 8 | 25 |
| DN125 | 25-250 | 13-250 | 10 | 25 |
| DN150 | 30-300 | 15-300 | 12 | 25 |
| DN200 | 80-800 | 40-800 | 20 | 25 |
All our liquid turbine flow meter 100% tested and calibrated before shipment to ensure the accuracy, you can ask us to send you the factory testing report paper together with the turbine flow meter.
What liquids are turbine flow meters suitable for?
Liquid turbine flowmeters are measuring instruments used to measure the flow volume of liquids. The liquids that can be measured are pure water, tap water, distilled water, cooling water, circulating water, hot water, fire water, air-conditioning water, vegetable oil, edible oil, rapeseed oil, alcohol, liquor, beer, methanol, ethanol, diesel, gasoline, Hydraulic oil, ammonia water, glue with good fluidity, chemical liquid with low viscosity, etc.
