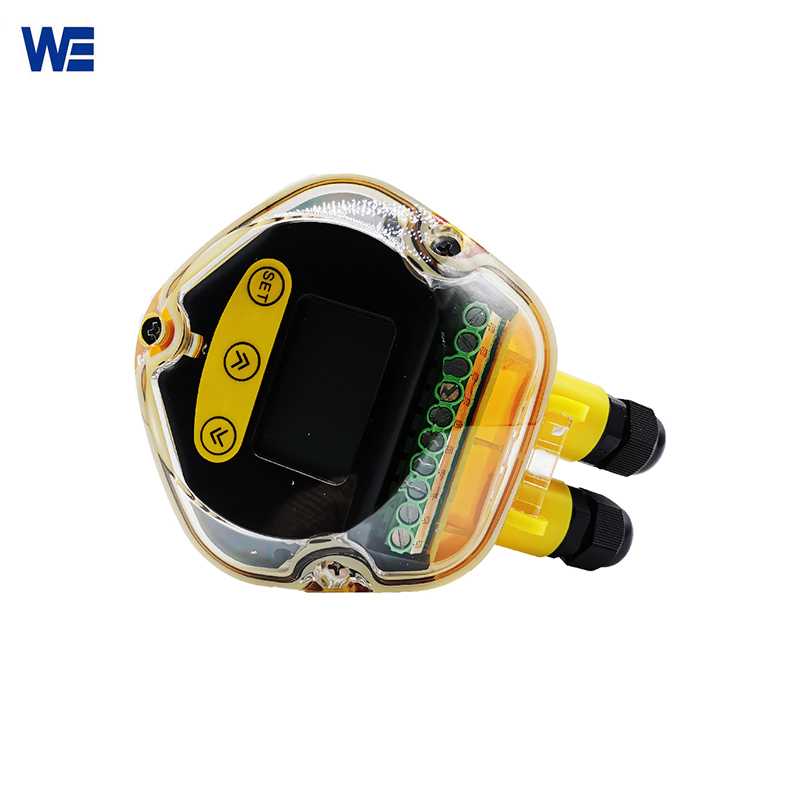

Ultrasonic Water Level Transmitter
The ultrasonic water transmitter produced by Wepower Electronic is a non-contact high-precision level meter with multiple signal outputs, a wide range of applications, easy installation, and strong signal penetration. Compared with radar level transmitter, it is very economical and efficient.
Features & Advantages Of Ultrasonic Water Level Transmitter:
The Ultrasonic Water Level Transmitter produced by Wepower Electronic is a non-contact high-precision level meter with multiple signal outputs, a wide range of applications, easy installation, and strong signal penetration. Compared with radar level transmitter, it is very economical and efficient.

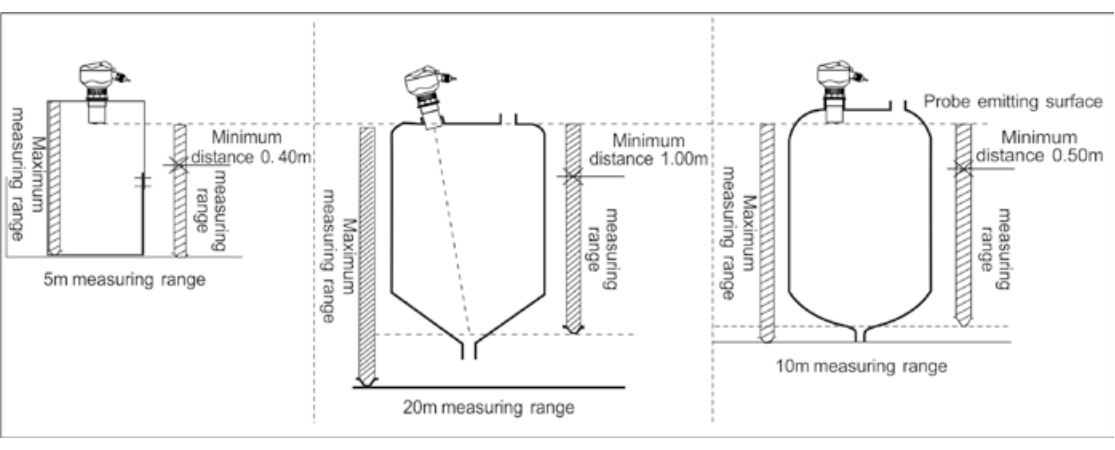

Installation Notes Of Ultrasonic Water Level Transmitter:
◆ Avoid Obstacles: Make sure there are no obstructions such as baffles and stirrers between the probe and the liquid surface.
◆Vertical Installation: The probe must be perpendicular to the liquid surface to avoid echo weakening due to oblique reflection.
◆Blind Zone Distance: Reserve a blind zone above the probe (usually 0.3~0.5m) to avoid near-field interference.
◆Environmental Factors:
- Foam/Steam: Strong foam or steam will absorb sound waves, so you need to choose radar level instead.
- Temperature Influence: In high-temperature environments (＞70℃), you need to choose a high-temperature model or add a radiator.
◆Vessel Structure:
- Avoid installing in narrow or uneven containers, which may produce false echoes.
- Conical tanks must be installed in the center.
◆Electrical Safety: Ensure good grounding and stay away from strong electromagnetic interference sources.
◆Outdoor Installation: Outdoor installation requires a rain cover to prevent direct sunlight from affecting electronic components.
| Name | Ultrasonic Water Level Transmitter | |

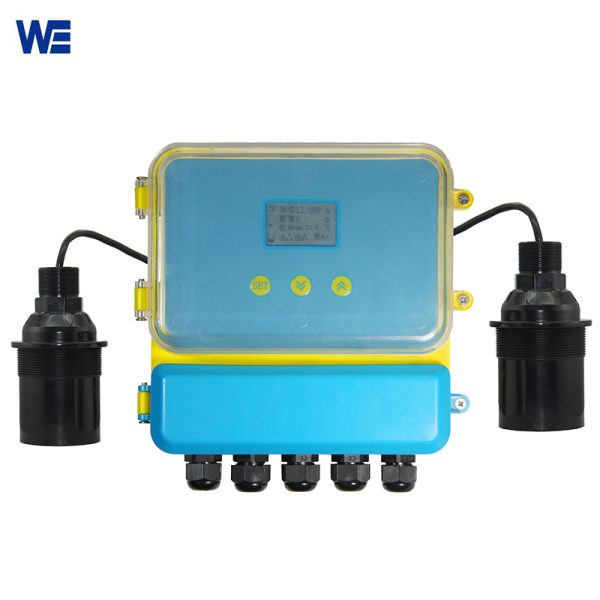

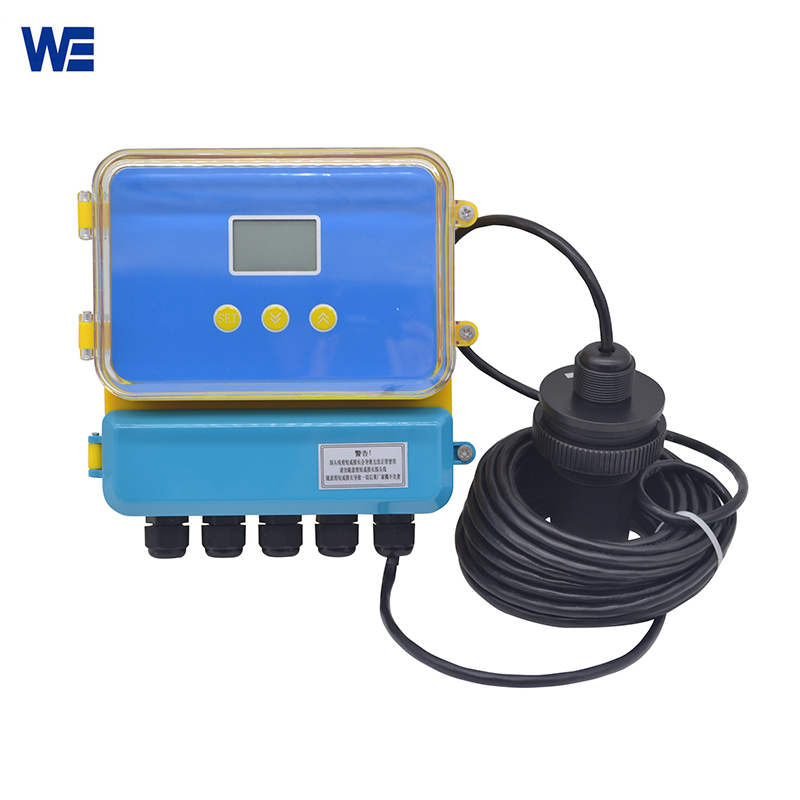

| Function | Integrated Type | Separated Type |
| Measuring Range | 5m, 10m, 15m, 20m, 30m | 5m, 10m, 15m, 20m, 30m, 40m, 50m, |
| Measurement Accuracy | 0.5%-1.0% | 0.5%-1.0% |
| Resolution Ratio | 3mm or 0.1%
(whichever is greater) |
3mm or 0.1%
(whichever is greater) |
| Display | English LCD | English LCD |
| Analog Output | 4-line system, 4~20mA/
510Ω load 2-line system, 4~20mA/ 250Ω load |
4~20mA/ 510Ω load |
| Relay Output | 2groups (i.e. AC 250V/ 8A or DC 30V/5A) optional,
state programmable |
2groups for single channel and 4groups for double channels(optional)
AC 250V/ 8A or DC 30V/ 5A, state programmable |
| Power Supply | Standard configuration: 24VDC
Optional: 220V AC±15% 50Hz
|
Standard configuration: 220V AC±15% 50Hz
Optional: 24VDC 120mA Customized: 12VDC or battery powered |
| Ambient Temperature | Display instrument: -20~+60ºC
Probe: -20~+80ºC |
Display instrument: -20~+60ºC
Probe: -20~+80ºC |
| Communication | 485, 232 communication
(optional) (manufacturer agreement) |
485, 232 communication (optional)
(manufacturer agreement) |
| IP Grade | Display instrument: IP66,
Probe: IP68
|
Display instrument: IP65,
Probe: IP68
|
| Probe Installation | Select type based on measuring range and probe | Select type based on measuring range and probe |
| Probe Cable | None | 100m available,
standard configuration: 10m |
| Probe Material | ABS plastic(PTFE for anti-corrosion) | ABS plastic(PTFE for anti-corrosion) |
| Thread Recommendation | 0-2m: M48*2
3-10m: G2A 11-20m: M78*2 25-30m: G3 Over 35m: M108*2 |
0-2m: M48*2
3-10m: G2A 11-20m: M78*2 25-30m: G3 Over 35m: M108*2 |
