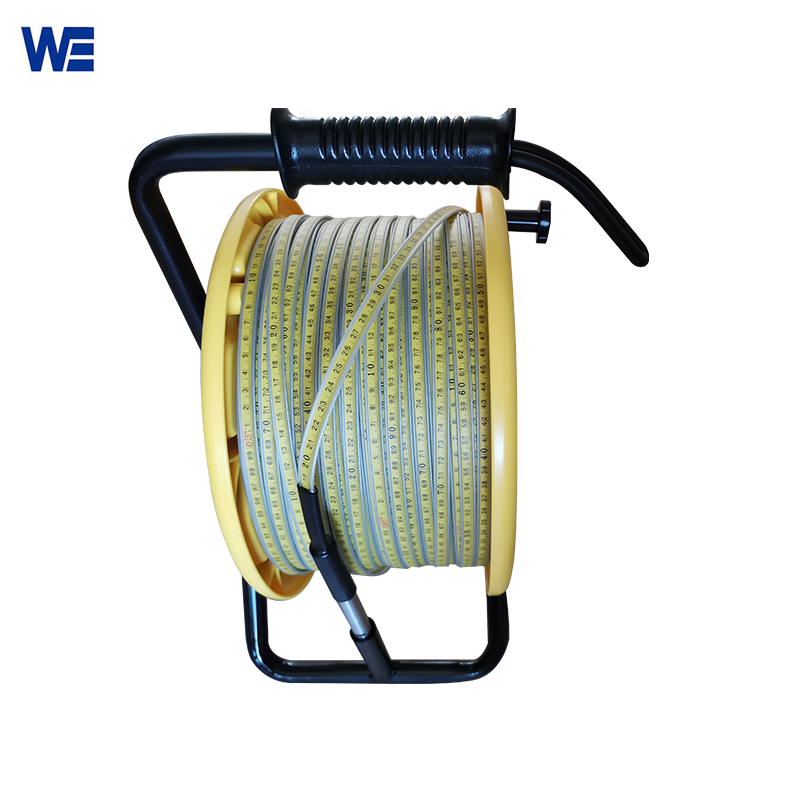

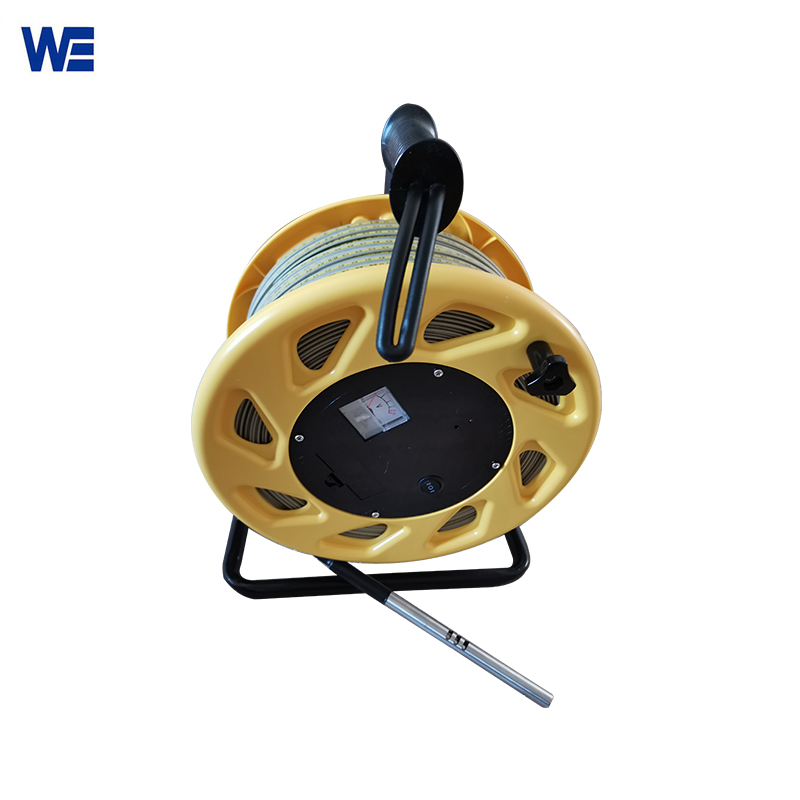

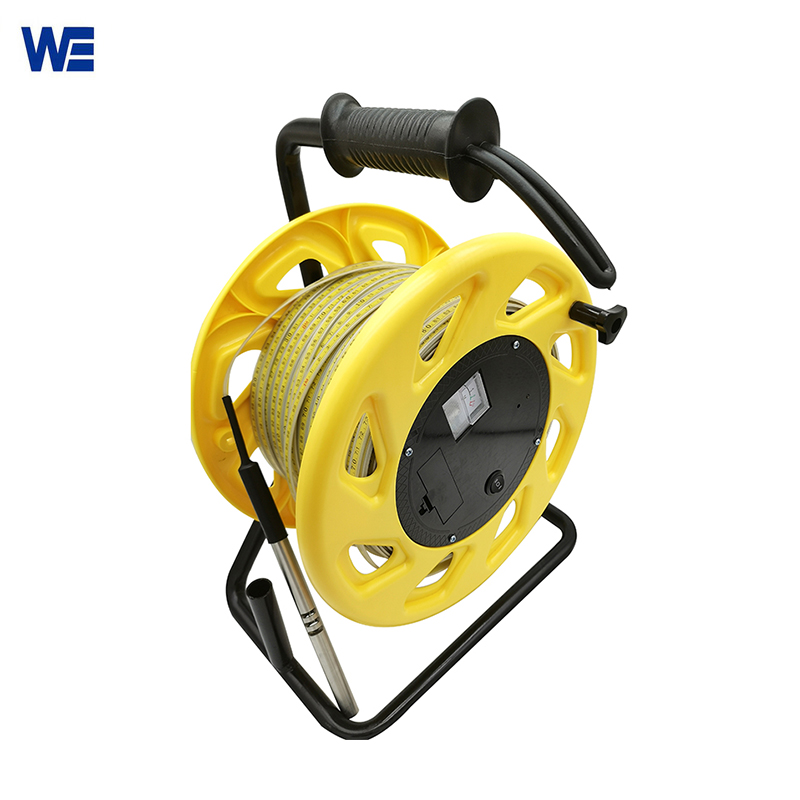

Water Level Meter Tape
Water level meter tape is sturdy, easy to use and take everywhere, no complicated debugging and maintenance request, and easy to read accurately to 1/100 ft.
Water Level Meter Tape is portable depth instruments used to accurately measure water levels in wells ,bore holes and standpipes. When the probe of the water level meter tape comes into contact with the water, the liquid completes the internal circuit which is transferred by the lighting of the LED as well as an audible sound buzzer, thus the depth of the water can be read directly by the ruler tape.
Our this series water level meter tape is sturdy, easy to use and take everywhere, no complicated debugging and maintenance request, and easy to read accurately to 1/100 ft. Water level meter tape does not require wiring connecting, just using a standard, small 9V battery. Water level meter tape produced by Wepower Electronic is sold well in various countries around the world. Welcome to inquire!
Features Of Water Level Meter Tape:
- Precision measurement, simplicity, durability
- Polycarbonate sturdy stainless steel ruler
- Corrosion-resistant stainless steel fittings
- Soft grip vinyl frame handle
- Water and dust-proof encapsulated electronics
- Full depth stainless steel probe
- Tape marked in 1 foot and 0.01 foot intervals
| Product Name | Water Level Meter Tape |
| Measure Range (m) | WCL-30m, WCL-50m, WCL1-00m, WCL-150m, WCL-200m, WCL-250m, WCL-300m, WCL-350m ,WCL-400m, WCL500m, etc |
| Minimum Indication(mm) | 1 mm |
| Repeat Indication (mm) | ±2.0 |
| Power Supply(V) | 9V Lithium Battery |
| Probe Dimension | 14*220mm;(Dia16mm can be offered too) |

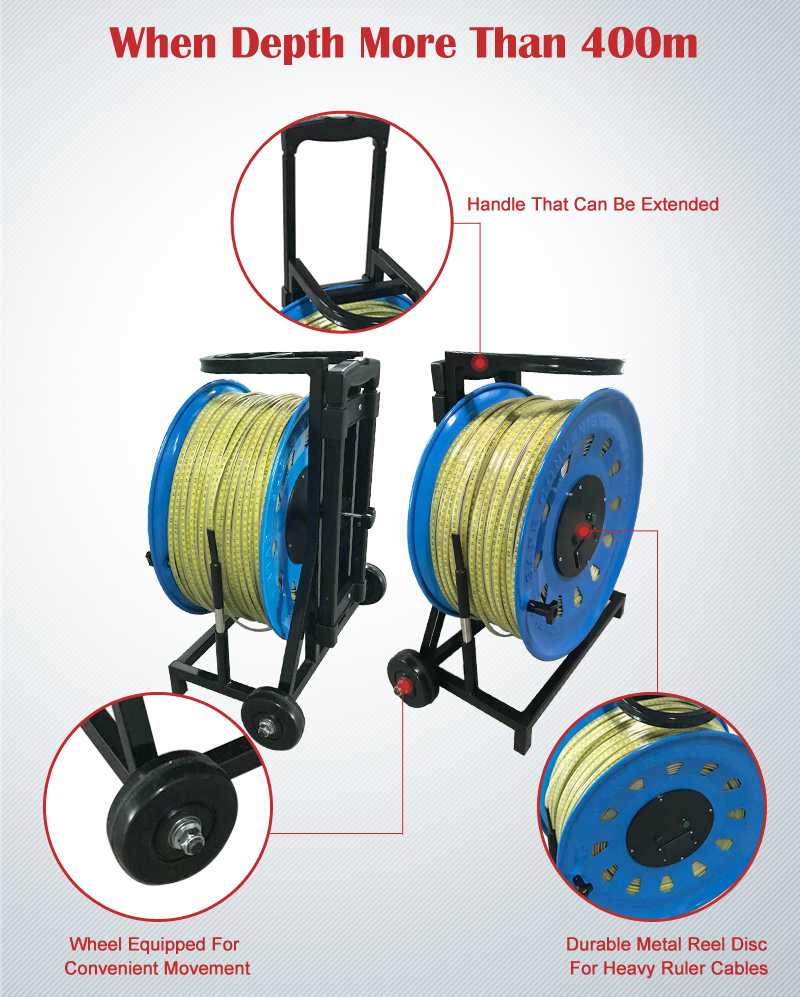

| Material | ● ABS Reel and handle ,Metal frame (Range less than 350m )
● Metal reel , Metal Handle , Metal Frame (Range≥ 400m ) ● Metal reel , metal handle ,Metal Frame ,with wheel trolley (Range=500m) |
| Cable Material /Size | Steel ruler with PE Coating ; Width: 12mm * Thickness 2mm |
| Ambient Temperature | -20~65°C, relative humidity ≤90%, no condensed water, no strong magnetic field interference |
| Indication Way | Indicator Light, Buzzer when the probe makes contact with water |
| Product Size | Length 36cm * Width 26cm * Height 44cm |
| Weight | 5KGS (50m )/ 10KGS(300m) /23KGS(500m) |
| Reel Disc Color | Yellow / Blue |
Click The Image To View More About Water Level Meter Tape
